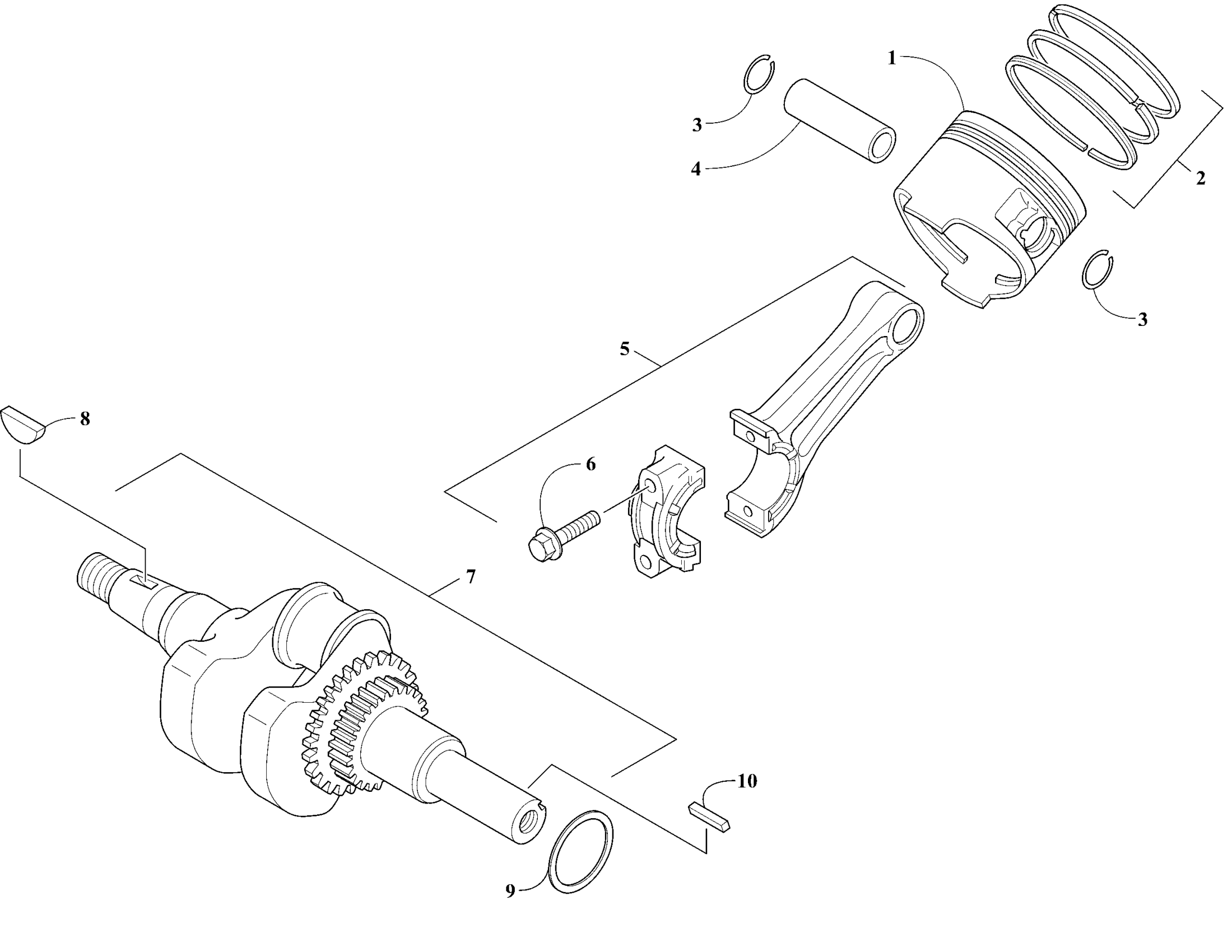

Ski-Doo MXZ 200, 2026 Engine - Piston and Crankshaft Diagram

#

Description
Price

1

Piston

3021-722

$90.27

1

Oversized Piston (0.25) Optional

3021-723

$73.85

1

Oversized Piston (0.50) Optional

3021-724

$73.85

2

Ring Piston Set

3021-725

$47.73

2

Ring,Piston Oversized (0.25) Optional

3021-726

$52.96

2

Ring,Piston Oversized (0.50) Optional

3021-727

$52.96

3

Piston Circlip

3020-115

$2.76

4

Piston Pin

3021-728

$29.82

5

Connecting Rod Ass'y

3021-720

$148.99

6

Cap Screw

3020-032

$8.83

7

Crankshaft Ass'y

3021-718

$308.99

8

Woodruff Key

3020-098

$18.63

9

Shim Crankshaft T (T=0.1)

3020-030

$4.04

9

Shim Crankshaft (T=0.2)

3021-937

$1.59

9

Shim Crankshaft (T=0.3)

3021-938

$3.18

10

Key (4.7MMX35MM)

3020-099

$10.11
