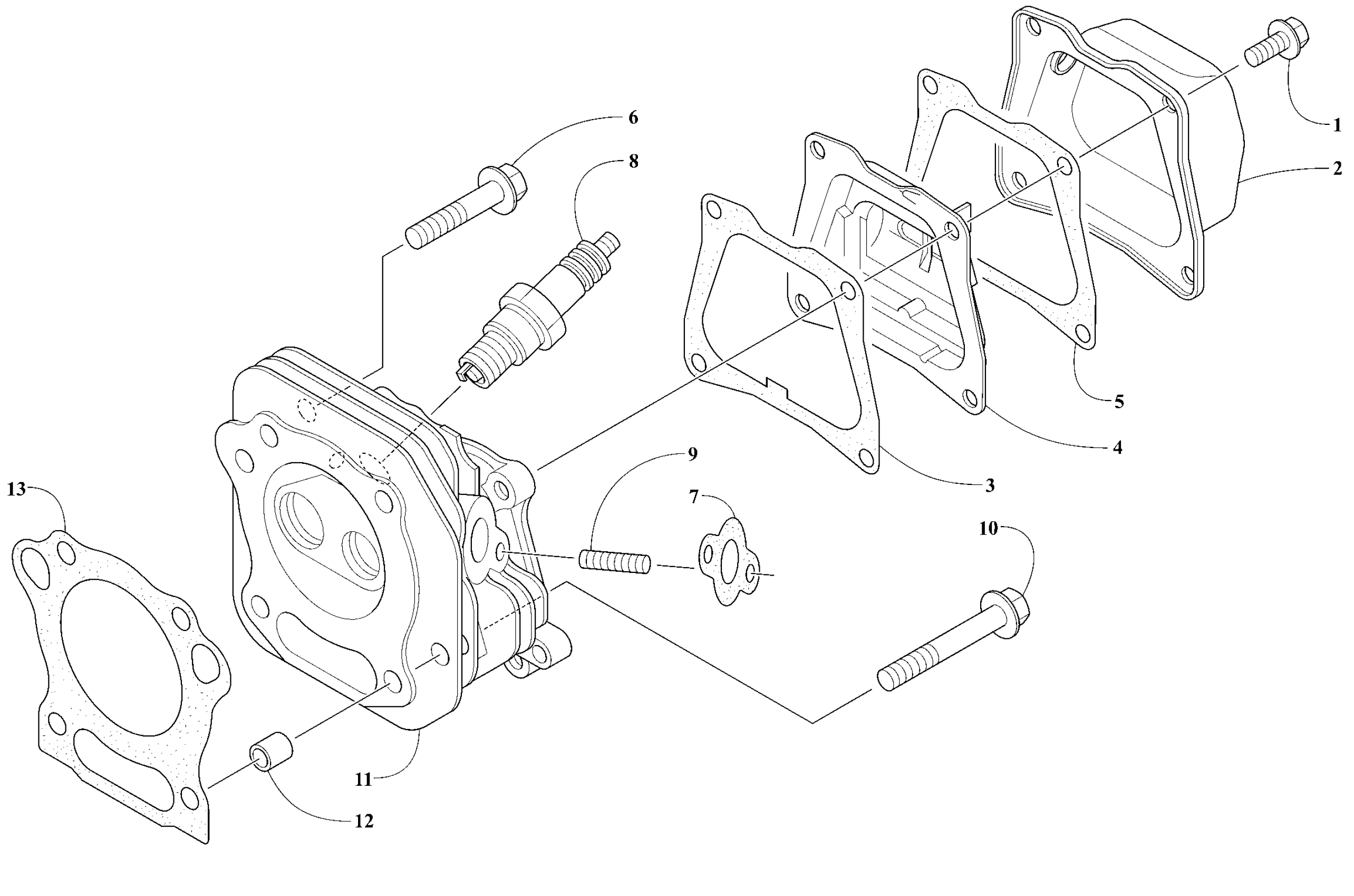

Ski-Doo MXZ 200, 2026 Engine - Cylinder Head Diagram

#

Description
Price

1

Cap Screw

3021-717

$3.18

2

Cylinder Head Cover

3020-027

$47.66

3

Breather Gasket

3020-028

$20.74

4

Air Breather

3020-025

$70.74

5

Breather Gasket

3021-715

Unavailable

6

Cap Screw

3021-710

$9.78

7

Exhaust Gasket

3021-920

Unavailable

8

NGK Spark Plug BPR4ES

0217-809

$4.78

9

Bolt Stud

3021-936

Unavailable

10

Cap Screw

3021-709

$4.69

11

Cylinder Head

3021-706

Unavailable

12

Dowel Pin This part replaces 3020-128.

3020-151

$2.98

13

Cylinder Head Gasket

3021-708

Unavailable
