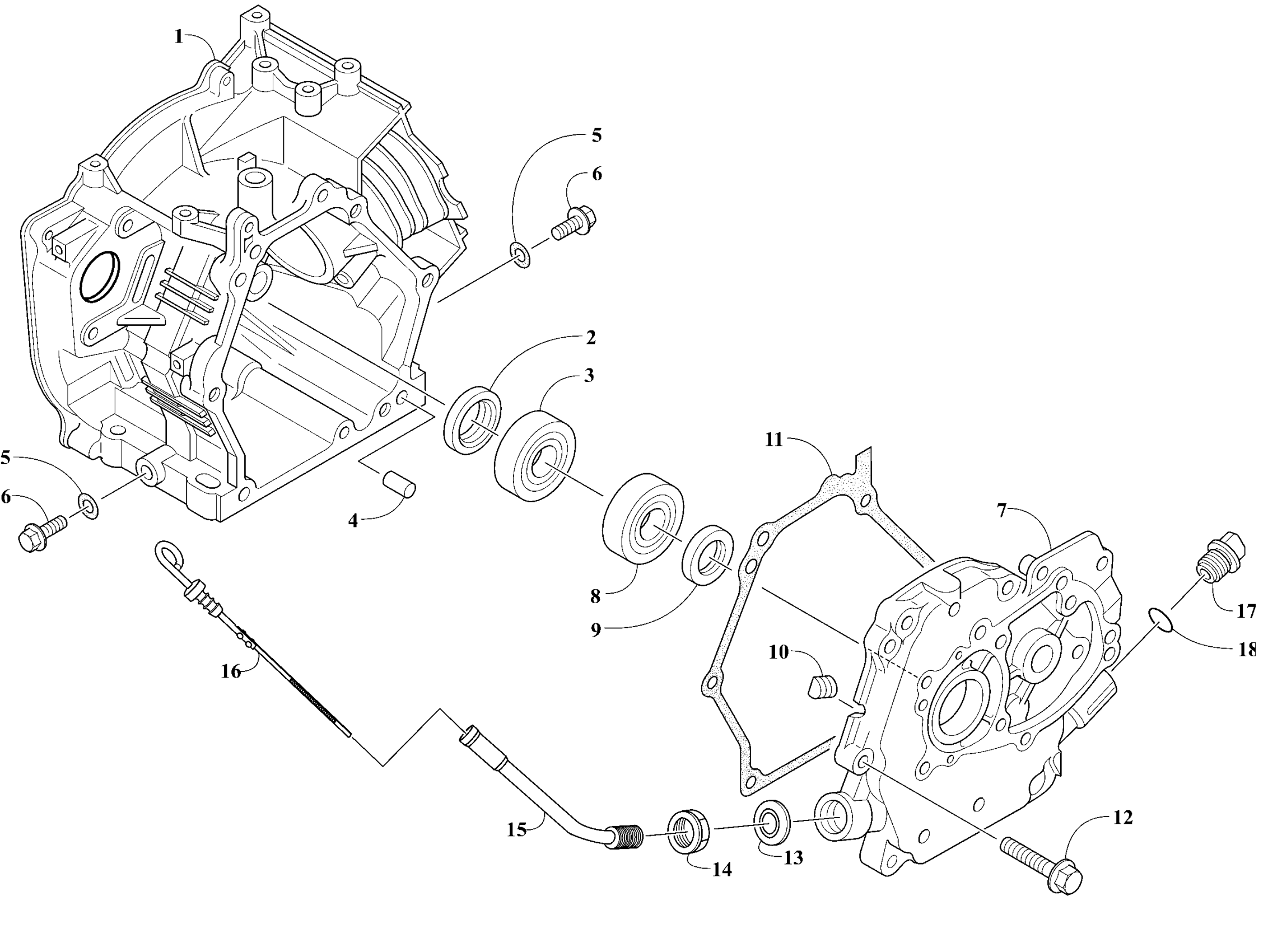

Ski-Doo MXZ 200, 2026 Engine - Crankcase and Cover Diagram

#

Description
Price

1

Crankcase (200)

3021-991

Unavailable

2

Oil Seal

3020-110

$9.29

3

Ball Bearing

3021-795

Unavailable

4

Center Pin

3020-127

$3.38

5

Gasket

3021-799

$4.58

6

Hex Flange Screw

3021-798

$7.29

7

Crankcase Cover (200)

3021-803

Unavailable

8

Ball Bearing

3021-804

Unavailable

9

Oil Seal

3020-109

$23.29

10

Plug

3020-100

$5.18

11

Crankcase Cover Gasket (200) This part replaces 3020-063.

3021-807

Unavailable

12

Flange Bolt

3021-808

$7.29

13

Gasket Ring M20 X 28MM OD

2670-666

Unavailable

14

Nut Retaining Oil (200)

3021-954

Unavailable

15

Oil Level Gauge Tube

3021-953

Unavailable

16

Oil Level Gauge

3021-922

Unavailable

17

Oil Level Filling Plug

3020-060

$16.89

18

O-Ring

3020-112

$4.09
