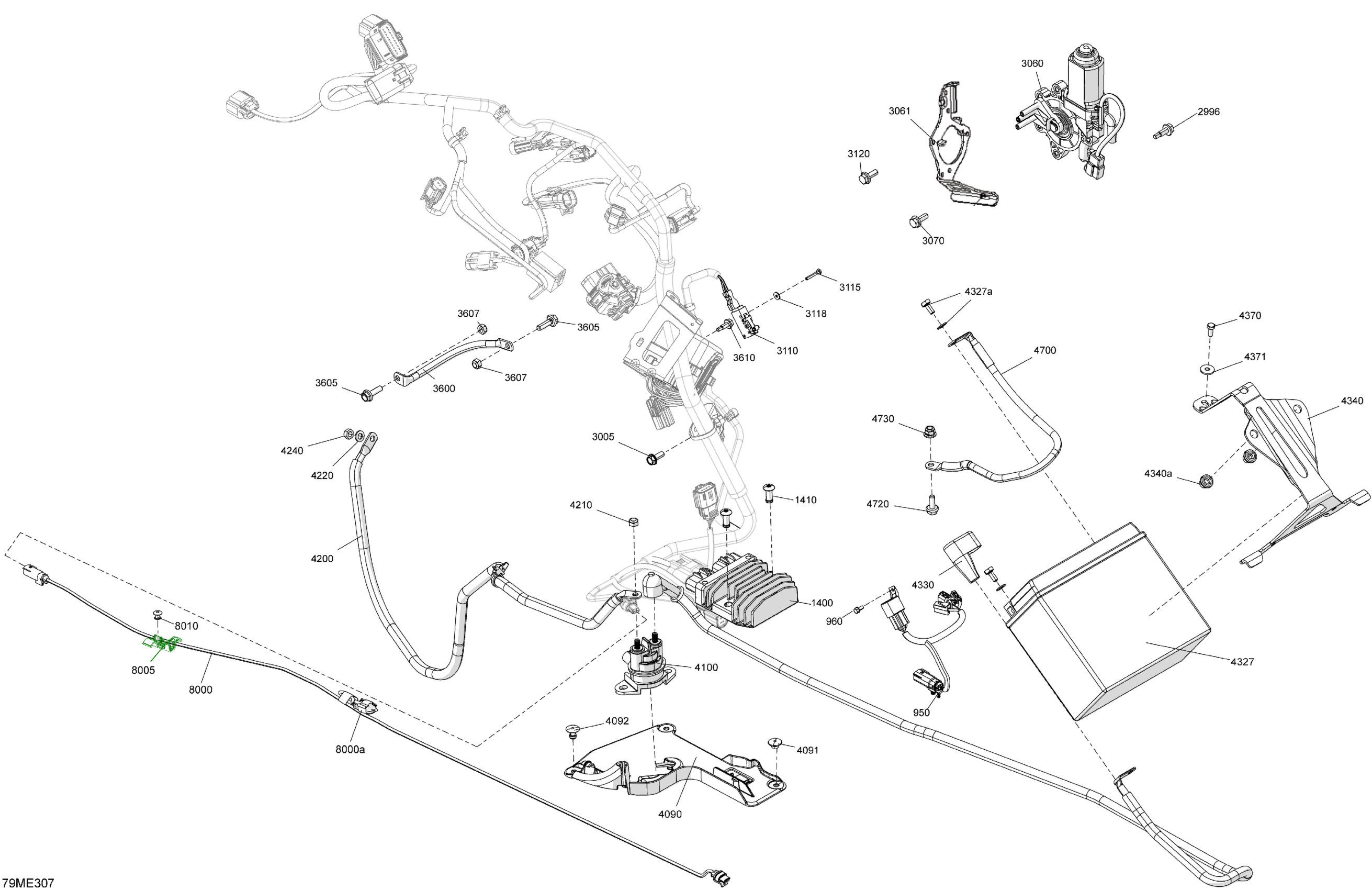

Ski-Doo GRAND TOURING - 900 ACE - LE - EBSB - Deep Black - 137X15X1.25ST3 Track - 2025 Electric - Lower Section Diagram

Description

Price

950

Compressor Wiring Harness

515178649

$46.12

960

Hex Flange Screw M5 X 11

210251150

$1.74

1400

Voltage Regulator | Package-DPS, Model-Europe

710005569

$85.77

1410

Monobolt Rivet 6.4

293150182

$2.91

2996

Hex. Flange Screw M5 X 16

250000911

$0.70

3005

Hex. Flange Screw M6 X 16

250001062

$1.43

3015

Push Nut

250001189

$1.11

3060

Motor Ass'y

515180200

$174.58

3061

Stopper Plate

515178896

$25.35

3070

Hex. Flange Screw M6 X 16

207661644

$0.61

3110

Switch Ass'y

515177460

$47.99

3115

Hex Screw M3 X 20

207132044

$2.06

3116

Rivet | Not Shown

515178495

$1.18

3118

Flat Washer M3, Stainless

234032600

$0.54

3120

Hex. Flange Screw M6 X 20

210262040

$2.06

3600

Ground Wire

515178338

$15.35

3605

Hex. Flange Screw M6 X 20

207662044

$1.66

3607

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

3610

Hex. Flange Screw M5 X 16

250000911

$0.70

4090

Starter Relay Support

515178244

$3.37

4091

Black, Pop Rivet 3/16 X ,425

293150291

$0.54

4092

Black, Pop Rivet 3/16 X ,550

293150292

$0.86

4100

Starter Relay

278003012

$35.07

4200

Battery Wire

515178336

$44.58

4210

Elastic Stop Nut M6

232561434

$1.55

4220

Flat Washer 6 mm

234061410

$1.04

4240

Elastic Stop Nut M6

232561434

$1.55

4327

Lead Battery 18 Amperes | Includes 4327 to 4327a

415129898

$134.52

4327a

Battery Bolt Kit

250000282

$2.95

4330

Protector Cap | STD

710001817

$10.83

4340

Battery Strip | Includes 4340 to 4340a

515177870

$15.35

4340a

Insert

293450275

$9.89

4370

Hex. Screw M5 X 12

207151244

$0.74

4371

Washer | DS 650 X

391301600

$0.48

4700

Ground Wire

515178155

$25.35

4720

Hex. Flange Screw M6 X 16

207661644

$0.61

4730

Elastic Flange Nut M6 X 1.0

233261416

$1.74

8000

Taillight Wiring Harness | Includes 8000 to 8000a

515178404

$35.35

8000a

Accessories Wiring Harness

515178442

$106.89

8005

Wiring Harness Support

515179630

$9.03

8010

Pop Rivet 3/16 X ,425

293150293

$0.26
