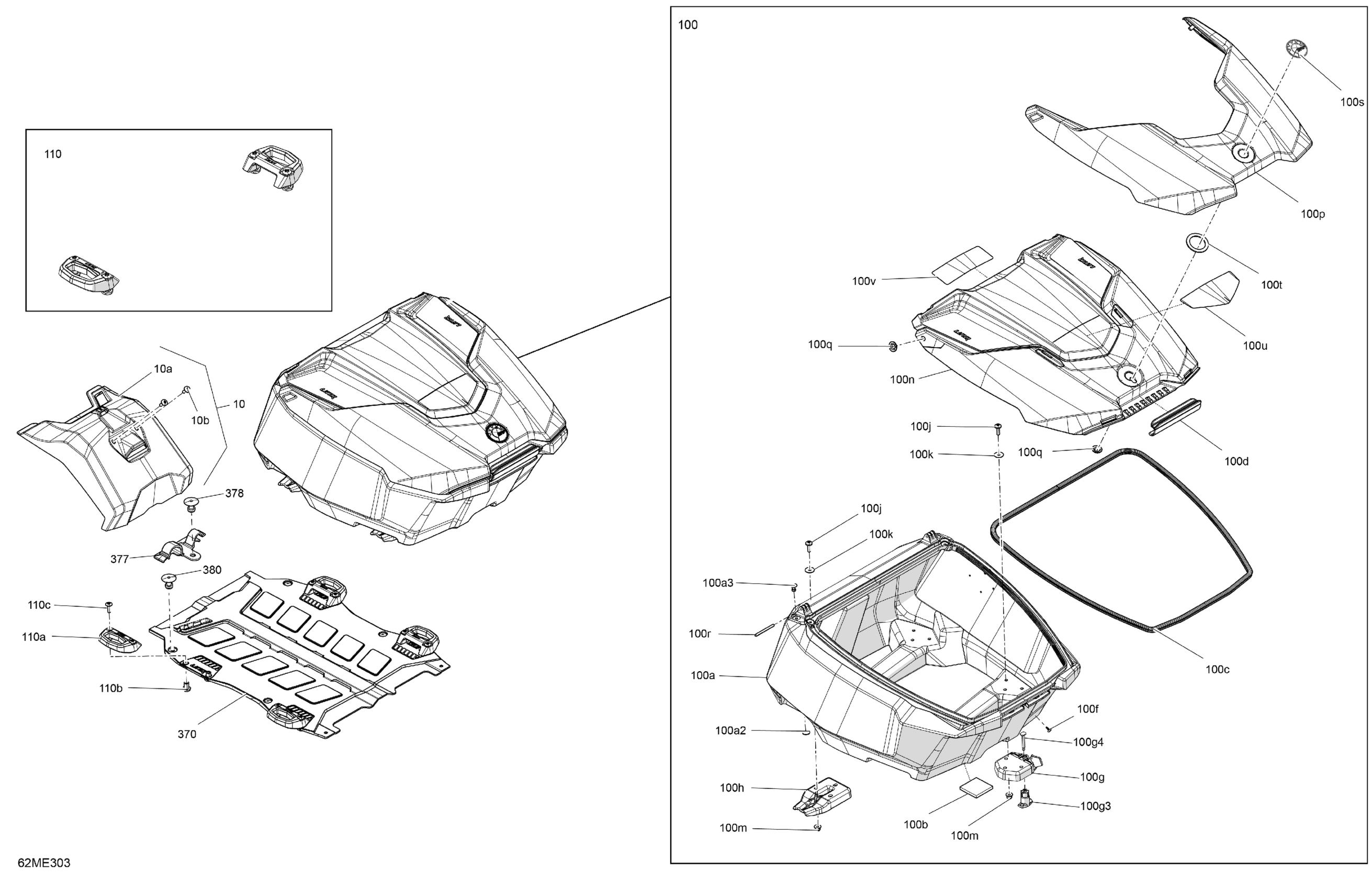

Ski-Doo GRAND TOURING - 900 ACE - LE - EBSB - Deep Black - 137X15X1.25ST3 Track - 2025 Body - Cargo Diagram

#

Description
Price

10

Battery Cover Kit | Includes 10 to 10b

511001432

$39.52

10a

Battery Cover

511001210

$28.33

10b

Torx Screw M6 X 16

250001005

$0.49

100

Deep Black, Storage Box Ass'y | Includes 100 to 100v

511001146

Unavailable

100a

Storage Box Ass'y | Includes 100a to 100a3

511001340

$126.09

100a2

Washer

517124300

$0.18

100a3

Black, Pop Rivet 3/16 X ,550

293150292

$0.99

100b

Self Adhesive Protective Foam

511001275

$0.66

100c

Seal, 1PC = 3M

293830188

$36.54

100d

Clip | Outlander Max

269501945

$14.90

100f

Torx-Truss Screw K40 X 10

250001034

$0.93

100g

RH Low Profile LINK Fasterner | Includes 100g to 100g4

511001827

$42.51

100g3

RH Latch

708200772

$7.37

100g4

Rod

511001584

$17.88

100h

Linq Toe In

511001164

$22.36

100j

Torx Screw M6 X 20

250000712

$2.00

100k

Flat Washer

250200040

$1.76

100m

Hex. Flange Elastic Nut M6

233261466

$1.91

100n

Storage Lid

511001150

$55.19

100p

Deep Black, Storage Box Trim

511001208

$107.43

100q

Self Threading Nut 8MM

250100213

$3.57

100r

Hinge Pin

511001211

$11.58

100s

BRP Logo Emblem 48 MM UV

704909040

$14.78

100t

Self Adhesive Weather Strip

511001392

$0.64

100u

Warning Label

516009527

Unavailable

100v

Warning Label

516009528

Unavailable

110

Luggage Rack Base With Hardware | Includes 5200 to 5200c

860201806

$24.60

110a

Not Available As Spare Parts

XXX

Unavailable

110b

Threaded Insert

511000822

$2.04

110c

Torx Screw M6 X 20, Scotch Grip

250000446

$4.15

370

Radiator Trim 137

860201830

$55.19

377

Cap

520001722

$8.64

378

Black, Pop Rivet 3/16 X ,550

293150292

$0.99

380

Black, Pop Rivet 3/16 X ,550

293150292

$0.99
