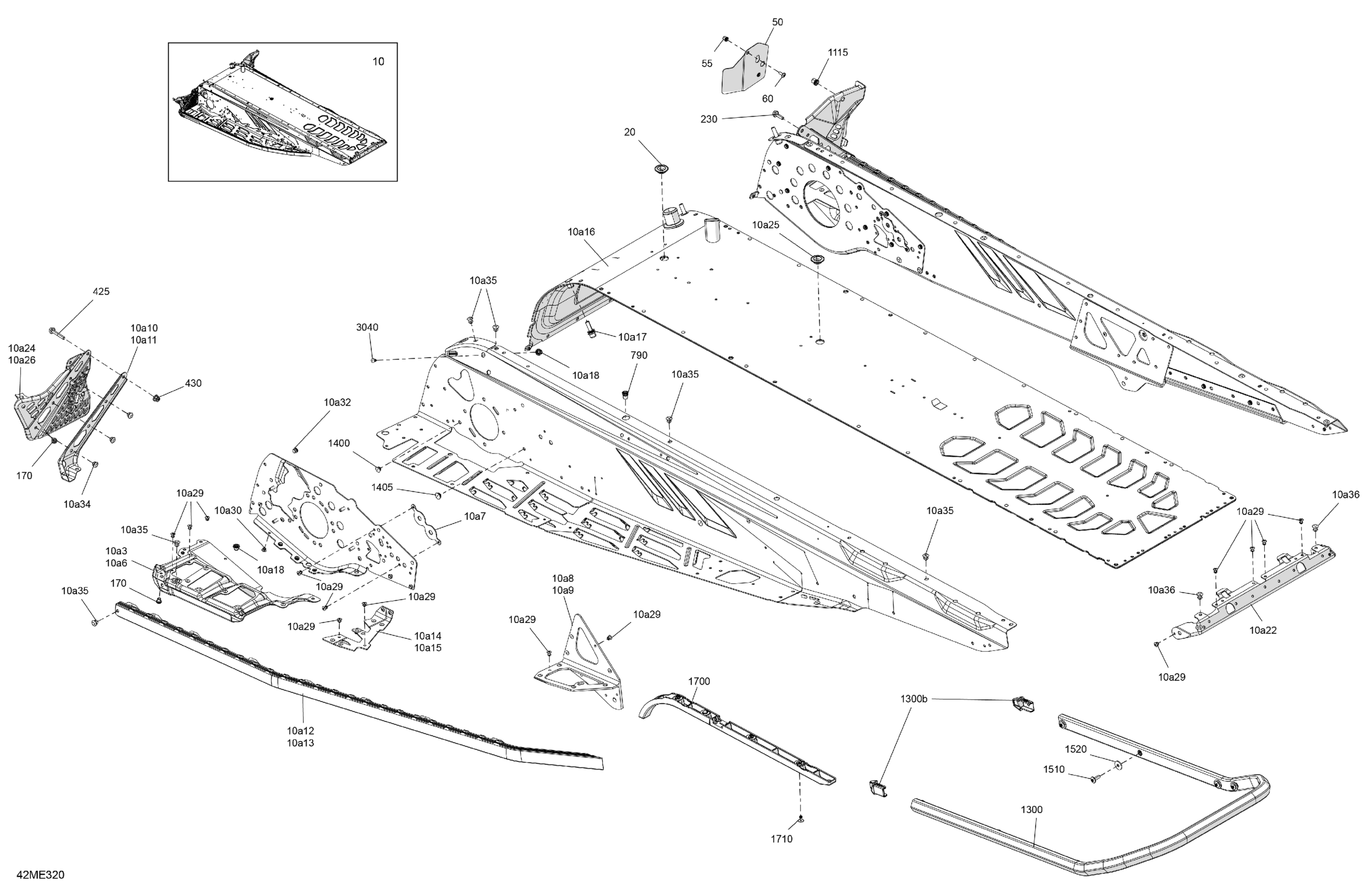

Ski-Doo GRAND TOURING - 900 ACE - LE - EBSB - Deep Black - 137X15X1.25ST3 Track - 2025 Frame - System - Rear Section Diagram

Description

Price

Deep Black, Chassis Tunnel Module 137

415130843

$3,069.20

10a3

Deep Black, RH Footrest Reinforcement

518330738

$82.28

10a6

Deep Black, LH Footrest Reinforcement

518331523

$82.28

10a7

Front Suspension Arm Reinforcement

518327233

$16.12

10a8

RH Rear Suspension Support

518334401

$75.35

10a9

LH Rear Suspension Support

518334400

$75.35

10a10

Stirrup Reinforcement

518334507

$18.43

10a11

Deep Black, LH Chassis Reinforcement

518332924

$18.43

10a12

RH Roller

518329648

$180.74

10a13

LH Roller

518328452

$180.74

10a14

LH Footrest Reinforcement

518332296

$18.43

10a15

RH Footrest Reinforcement

518332297

$18.43

10a16

Radiator Tunnel 137

518335125

$703.05

10a17

Protruding Stud M8 x 22

250300652

$4.28

10a18

Insert Half Hex Body M6 x 1.0

250100199

$2.54

10a22

Rear Cap

518328990

$20.74

10a24

RH Footrest

518334509

$20.74

10a25

Black, Plug

293730052

$6.37

10a26

LH Foot Protector

518334305

$23.82

10a29

Rivet Avibulb 3/16

293150203

$0.29

10a30

Avibulb Rivet 4.8 X 12.1

293150237

$0.29

10a32

Henrob Rivet

293150245

$1.65

10a34

Rivet Ornit 6,5 X 10.5

293150264

$1.94

10a35

Rivet Ornit 6,5 X 12.5

293150265

$1.94

10a36

Rivet Ornit 6,5 X 16.5

293150267

$1.94

10a37

Ornit Rivet 6,5 X 14.5

293150266

$1.94

Black, Plug

293730052

$6.37

Heat Shield

518331823

$7.42

Insert

293450275

$9.89

Torx Head Screw M6 X 16

250000717

$1.74

170

Insert M5 - 0.8

293450267

$4.22

230

Hex. Flange Screw M6 X 20

207562056

$1.74

425

Hex. Flange Screw M6 X 20

207562056

$1.74

430

Elastic Flange Nut M6 X 1.0

233261416

$1.74

790

Insert

293450278

$4.09

1115

Insert

293450275

$9.89

1300

Black, 137 Hitch Bumper | Includes 1300 to 1300b

518330197

$119.99

1300b

Bumper Cap

520001629

$0.95

1400

Black, Dart 8 mm

293730047

$2.14

1405

Black, Dart 10 mm

293730060

$4.42

1510

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$1.74

1520

Flat Washer

224061201

$1.11

1700

Front Protector

518329982

$17.66

1710

Black, Ornit Rivet 3/16 X ,675

293150308

$1.23

3040

Dart

293730079

$1.92
