Frame - System - Front Section

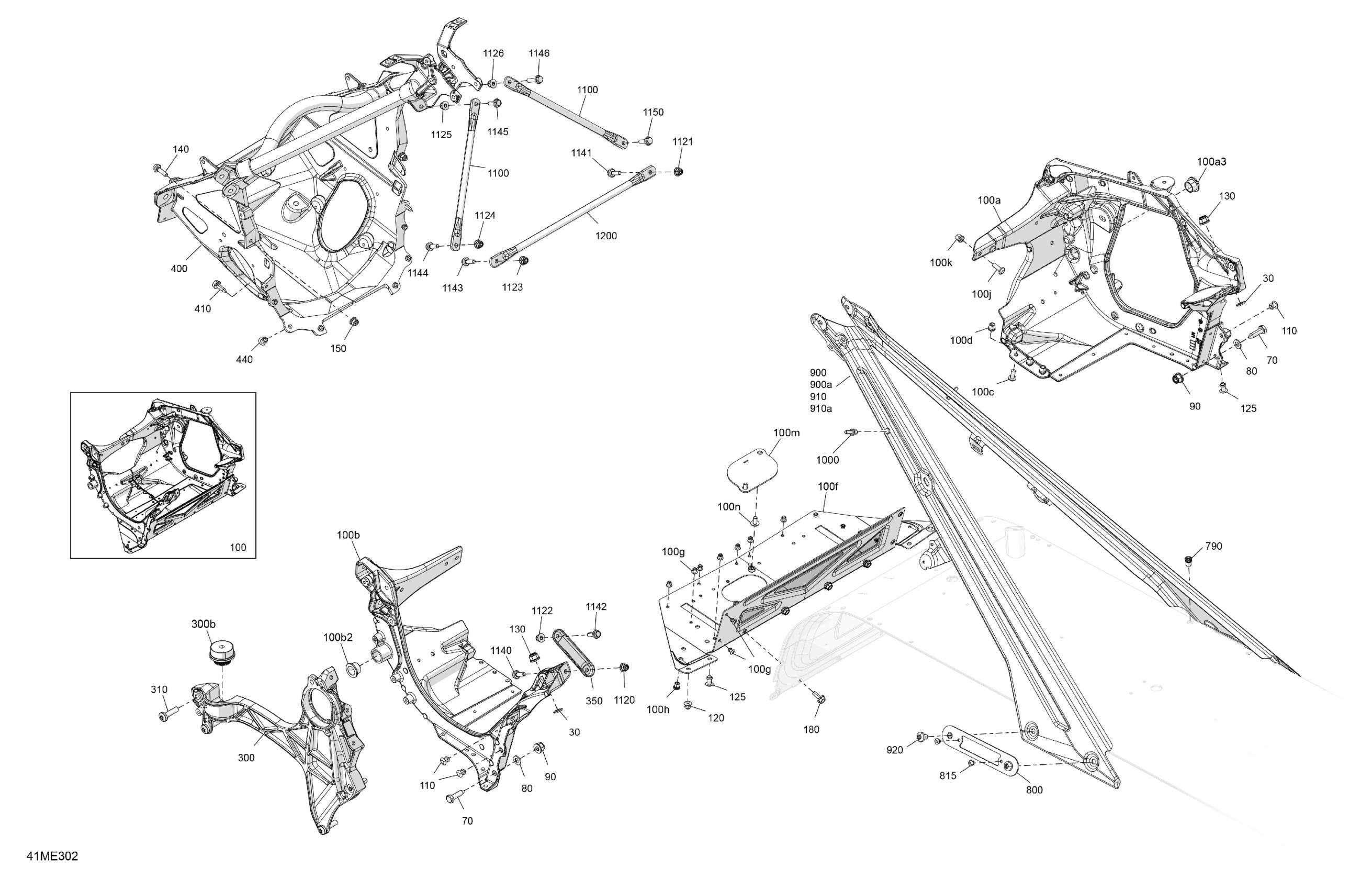

Ski-Doo GRAND TOURING - 900 ACE - LE - EBSB - Deep Black - 137X15X1.25ST3 Track - 2025 Frame - System - Front Section Diagram
#
30
Flat Washer 8 mm
234081410
Unavailable
70
Hex Screw M8 X 30
250000942
Unavailable
80
Flat Washer 8 mm
234081410
Unavailable
90
Hex. Flange Elastic Nut M8
233281414
Unavailable
100
Engine Chassis Module Ass'y | Includes 100 to 100n
518334517
Unavailable
100a
RH Side Member Ass'y | Includes 100a to 100a3
518334523
Unavailable
100a3
Leg Bushing
505072690
Unavailable
100b
LH Side Member Ass'y | Includes 100b to 100b2
518334599
Unavailable
100b2
Leg Bushing
505072690
Unavailable
100c
Rivet Magna-Grip 6,4 X 50,8
293150148
Unavailable
100d
Collar Huck Magna-Grip 6.4
293150149
Unavailable
100f
Bottom Plate
518332715
Unavailable
100g
Rivet Avibulb 3/16
293150203
Unavailable
100h
Insert M5 X 0.8
293450268
Unavailable
100j
Rivet Magna-Grip 6,4 X 50,8
293150148
Unavailable
100k
Collar Huck Magna-Grip 6.4
293150149
Unavailable
100m
Oil Plate
518329454
Unavailable
110
Rivet Ornit 6,5 X 16.5
293150267
Unavailable
120
Rivet Ornit 6,5 X 12.5
293150265
Unavailable
125
Rivet Ornit 6,5 X 18.5
293150268
Unavailable
130
Hex. Flange Elastic Nut M8
233281414
Unavailable
140
Hex. Flange Screw M6 X 20
207662046
Unavailable
150
Elastic Flange Nut M6 X 1.0
233261416
Unavailable
180
Hex. Flange Screw M6 X 16
207661646
Unavailable
300
LH Side Member Ass'y | Includes 300 to 300b
518333691
Unavailable
310
Screw-Pan HD.Torx M8X30
250001060
Unavailable
350
LH Front Chassis Reinforcement | Includes 350 to 350a
518331740
Unavailable
400
Chassis Suspension Module
518334461
Unavailable
410
Screw-Forming Hex.HD.FL. M6 X 16
250001051
Unavailable
440
Rivet Ornit 6,5 X 16.5
293150267
Unavailable
790
Insert
293450278
Unavailable
800
Member Fixation Plate
518329480
Unavailable
815
Avibulb Rivet 4.8 X 12.1
293150237
Unavailable
900
Deep Black, LH Rear Diagonal Cross Member | Includes 900 to 900a
518333358
Unavailable
900a
LH Rear Diagonal Cross Member
518333356
Unavailable
910
Deep Black, RH Rear Diagonal Cross Member | Includes 910 to 910a
518330063
Unavailable
910a
RH Rear Diagonal Cross Member
518332559
Unavailable
1000
Protruding Stud M5 x 12
250300651
Unavailable
1100
Upper Colomn Support
518329370
Unavailable
1120
Elastic Flange Nut M6 X 1.0
233261416
Unavailable
1121
Elastic Flange Nut M6 X 1.0
233261416
Unavailable
1122
Elastic Flange Nut M6 X 1.0
233261416
Unavailable
1123
Elastic Flange Nut M6 X 1.0
233261416
Unavailable
1124
Elastic Flange Nut M6 X 1.0
233261416
Unavailable
1125
Elastic Flange Nut M6 X 1.0
233261416
Unavailable
1126
Elastic Flange Nut M6 X 1.0
233261416
Unavailable
1140
Hex. Flange Screw M6 X 20
207662046
Unavailable
1141
Hex. Flange Screw M6 X 20
207662046
Unavailable
1142
Hex. Flange Screw M6 X 20
207662046
Unavailable
1143
Hex. Flange Screw M6 X 20
207662046
Unavailable
1144
Hex. Flange Screw M6 X 20
207662046
Unavailable
1145
Hex. Flange Screw M6 X 20
207662046
Unavailable
1146
Hex. Flange Screw M6 X 25
207662556
Unavailable
1150
Hex. Flange Screw M6 X 20
207562056
Unavailable
1200
Center Column Support
518329755
Unavailable
