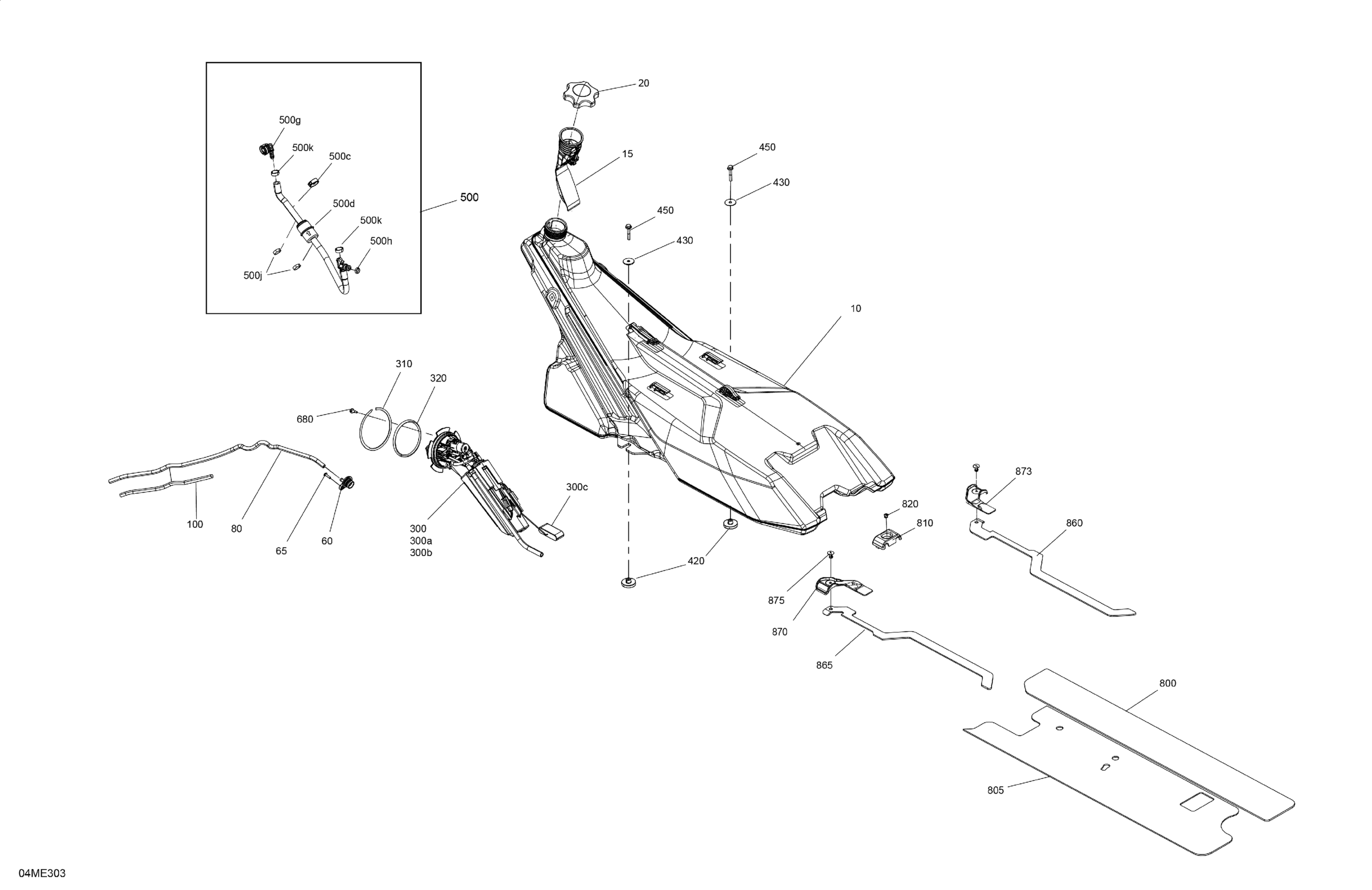

Ski-Doo GRAND TOURING - 900 ACE - LE - EBSB - Deep Black - 137X15X1.25ST3 Track - 2025 Engine - Fuel Diagram

Description

Price

Fuel Tank

513034158

$269.97

Tube Ass'y

513033959

$26.89

Fuel Tank Cap

513034168

$25.35

Check Valve

513033849

$36.89

Truss Torx Screw K40 X 16

250000918

$2.06

Hose 5.7MM - 630MM

219704539

Unavailable

100

Protector Tube | Not shown

503195447

$13.85

300

Fuel Pump Ass'y | Includes 300 to 300c

513034080

$257.66

300a

Canister

415130507

$80.74

300b

Filter

415130508

Unavailable

300c

Fuel Level Sensor

415130726

$136.89

310

Circlip

513034097

$12.83

320

O-Ring

513033862

$17.66

420

Bushing

513034147

$7.52

430

Washer | Not Shown

503193995

$4.38

450

Hex. Flange Screw M6 X 35

250001255

$2.18

500

Hose Ass'y | Includes 500 to 500k

513034203

$71.51

500c

Ring

513033910

$6.86

500d

Fuel Filter

513034047

$23.05

500g

Elbow Fitting 90°

293710105

$10.58

500h

O-Ring

513033668

$9.45

500j

Crimp Clamp, 15.3-706R

293650047

$2.64

500k

Crimp Clamp

293650053

$2.42

680

Hex. Flange Screw M5 X 16

250000911

$0.70

800

Insulated Foam

513033913

$5.25

805

LH Foam

513034165

$15.35

810

Guide

513034155

$2.12

820

Pop Rivet 3/16 X ,425

293150293

$0.26

860

Foam

513033915

$17.66

865

Foam

513033916

$4.43

870

LH Chassis Trim

513034183

$7.80

873

RH Chassis Trim

513034184

$7.80

875

Black, Pop Rivet 3/16 X ,550

293150292

$0.86
