Description

Price

2a

USB Wiring Harness Ass'y

710010072

$77.00

2a1

USB wiring Harness Ass'y

515179431

$77.00

2b2

Multifunction Gauge 10

710010376

$2,040.00

2c

Torx Head Screw M6 X 16

250000717

$1.74

2d

Fm2 Antenna

710010625

$122.00

2f

Fm2 Antenna

710010625

$122.00

2g

Phantom Box

710010431

$74.00

2h

External Module GPS

278004172

$190.00

2j

Torx Screw M6 X 25

250000758

$1.74

3&1

Housing

710001951

$12.91

3&2

Cap

710001225

$7.27

3a

Passenger Detection Switch

710008103

$72.28

3b

Panel Nut M6 X 1.0

250100208

$1.07

3c

Stainless Steel Flat Washer

234062670

$1.74

3d

Torx Truss Screw M6 X 25

250000807

$1.74

6a

Wiring Harness

710009557

$17.00

8a

Battery 12 Volt 21Ah | Includes 8a to 8a1

219800599

$180.00

8a1

Battery Bolt Kit

715500541

$3.39

8b

Latch

520000528

$6.60

8c

Battery Support

710010843

$17.00

8d

Starter Relay

278003012

$35.07

8f

Hex. Elastic Stop Nut M6

232561600

$0.92

8g

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

8h

Mod Vcm Wet Prog & Grommet Kit | Includes 8h to 8h2

219800536

$1,150.00

8h2

Shock Damper

710003279

$10.14

8j

Vibration Damper

710009090

$10.14

8k

VCM Harness Protector

710003996

$3.00

8m

PBM Module Ass'y

710008602

$460.00

8n

Torx Screw M4 X 16

250000750

$1.37

8p

Elastic Stop Nut M4

232541484

$0.61

8q

Flat Washer 4 mm

234041480

$0.61

8r

Horn

710004940

$29.00

8s

Horn Support

710005769

$16.00

8t

Torx Truss M8 X 25

250000874

$1.74

8u

Hex. Flange Elastic Nut M8

233281414

$1.14

8v

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$1.74

8w1

Reverse Cable

710002889

$32.00

8w2

Actuator

710011269

$65.00

8w3

Elastic Stop Nut M4

232541414

$0.48

8w4

Socket Head Screw M4 X 40

205444056

$1.74

8w5

Pop Rivet 5/32

390403000

$0.34

8w6

Actuator Support

710010657

$21.00

8w7

Clip

270000141

$8.33

8w8

Pop Rivet 3/16 X ,425

293150293

$0.26

8x

Hex. Flange Screw M6 X 16

210261650

$1.22

8y

Actuator Motor

710007256

$228.00

8z

Hex. Flange Screw M6 X 20

207662054

$0.83

8aa

Elastic Stop Nut M6

232561434

$1.55

8ab

Brake Pressure Switch Ass'y

710001379

$41.51

8ac

Pop Rivet

293150150

$2.31

8ad

Yaw Rate Sensor

710005658

$166.12

8af

Hex. Flange Screw M6 X 16

210261650

$1.22

1015

Antenna Ground Strap

710010111

$18.00

1040

Hex Flange Screw M8 X 20

207582046

$1.25

1045

Hex Flange Screw M8 X 20

207582046

$1.25

1070

Hex. Flange Screw M5 X 10

207551044

$3.38

1075

Hex. Flange Elastic Nut M5

233251414

$1.66

1080

Hex. Flange Screw M5 X 10

207551044

$3.38

1085

Hex. Flange Elastic Nut M5

233251414

$1.66

1150

Dess Module

710004916

$180.00

1153

Wire Support

710004308

$13.00

1154

Hex. Forming Screw M6 X 10

210261050

$1.42

1155

Hexagonal Head Screw

210262050

$1.74

1156

Stainless Steel Flat Washer

234062670

$1.74

1160

Rubber Bumper

293830091

$8.29

2000

Pos Cable

710008074

$85.00

2005

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

2020

Hex. Flange Screw M8 X 12, Scotch Grip

207581244

$0.92

2021

Serrated Lock Washer 8 mm

234481608

$1.09

2160

Stainless Flat Washer M6

234061600

$0.25

2161

Elastic Stop Nut M6

232561414

$1.55

2250

Battery Wiring Harness | Includes 2250 to 2250r

710007687

$100.00

2250a

Hex. Screw M6 X 14

207161444

$0.48

2250b

Protector Cap

710000393

$8.98

2250j

Battery Guard

710002945

$13.00

2250p

Fuse 80 A

710008102

$15.35

2250q

Fuse Holder Support

710008098

$24.00

2250r

Fuse Holder Cover

710008154

$43.00

2262

Hex. Flange Screw M6 X 12

210261250

$1.56

2270

Socket Head Screw M6 X 10, Scotch Grip

205961060

$1.48

2271

Hex. Nut M6

232061600

$0.91

2272

Lock Washer Helical M6

234161601

$0.92

2280

Socket Head Screw M6 X 10, Scotch Grip

205961060

$1.48

2281

Hex. Nut M6

232061600

$0.91

2282

Lock Washer Helical M6

234161601

$0.92

4042

Lock

710001222

$1.68

4044

Pop Rivet 3/16 X ,425

293150293

$0.26

4045

Clip

270000141

$8.33

4052

Tuflok Plastic Rivet

293150230

$1.21

4055

Connector Plug

710004906

$13.00

4056

Connector Holder

710002033

$3.22

4057

Connector Plug

710004902

$3.00

4058

Connector Holder

710002033

$3.22

4059

Connector Plug

710004903

$3.00

4060

Connector Holder

710002033

$3.22

4065

Support Cable

293750083

$2.75

4075

Connector Plug

710004901

$13.00

4076

Connector Plug

710004901

$13.00

4077

Wire Support

710004669

$7.00

4090

Harness Holder

710004794

$3.00

4095

Tuflok Plastic Rivet

293150230

$1.21

4200

Harness Holder

710004931

$2.00

4210

Tuflock Phillips Plastic Screw

414745900

$1.30

4360

Fuse Holder Support

710004472

$9.29

4361

Hex. Flange Screw M6 X 12

210261250

$1.56

4380

Cable Support

710004299

$4.00

4810

Connector Cap

708305003

$13.00

5002

Hex. Flange Nut M8

233081416

$1.63

5400

Fuel Tank Cable

710006436

$19.00

5405

Hex. Screw M8 X 20, Scotch Grip

207382060

$1.57

5410

Lock Washer Serrated M6

250200041

$0.92

5415

Serrated Lock Washer 8 mm

234481608

$1.09

5420

Washer

250200111

$1.74

8604

Connector Holder

710002033

$3.22

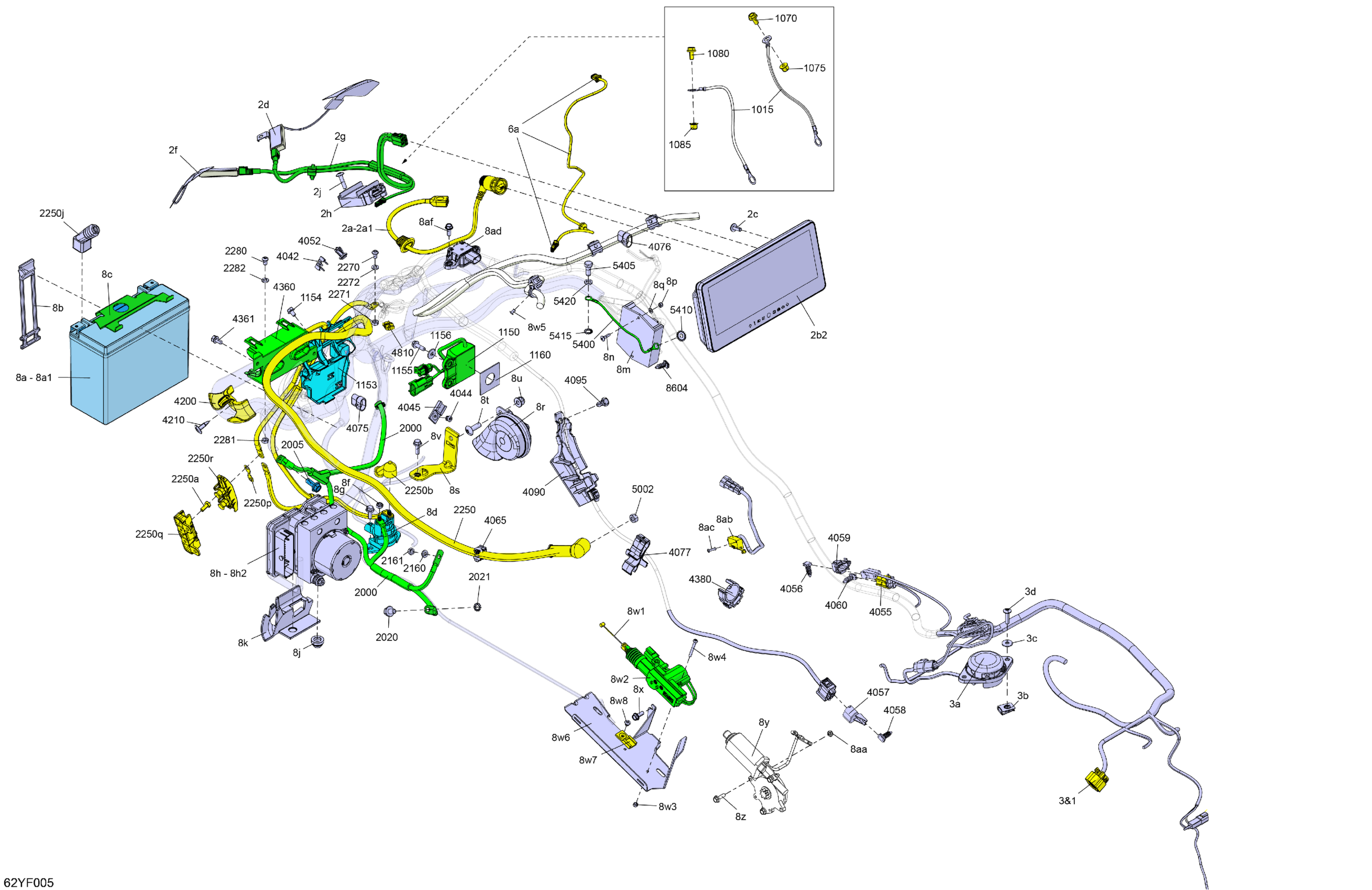

Can-Am F3 - T - H6TA - Vegas White, 2026 Electric - System Diagram
