Description

Price

100a

LH Trim Box

708301859

$4.00

100b

RH Trim Box

708301860

$4.00

100c

Trim Box Double Face Tape

704905469

$4.00

100d

Petrol, LH Box Cover

708304382

$460.00

100f

Petrol, RH Box Cover

708304383

$460.00

100g

Red, Lateral Reflector

705003412

Unavailable

100h

Rear Fender

708301584

$205.00

100j

Rear Fender Extention

708301747

$205.00

100k

Tuflock Phillips Plastic Screw

414745900

Unavailable

100m

Neoprene Seal, 150 MM

293250385

$3.00

100n

Seal 1000Mm Long

219704373

$8.29

100p

LH Inner Cover | Included 100s to 100s3

708301663

$84.00

100p2

Striker Cover

708303255

$7.00

100p3

Hex. Forming Screw M5 X 16

210251650

Unavailable

100q

Gasket, Neoprene 2000Mm Long

219704476

Unavailable

100r

Panel Nut M6 X 1.0

250100208

Unavailable

100s

Torx Screw M6 X 20

250000722

Unavailable

100t

Female Hinge

708302044

$11.00

100u

Retaining Plate

708302046

$13.00

100v

Torx Truss PT K40 x 12

250001131

Unavailable

100w

Wheel Arch Protector

708304879

$48.00

100x

Stainless Steel Flat Washer

234062670

Unavailable

100y

Torx Screw M6 X 20, Scotch Grip

250000446

Unavailable

100z

Tuflok Plastic Rivet

293150230

Unavailable

100aa

Neoprene Seal, 150 MM

293250385

$3.00

100ab

Panel Nut M6 X 1.0

250100208

Unavailable

100ac

Tuflok Plastic Rivet

293150230

Unavailable

100ad

RH Inner Cover | Included 100ah to 100ah3

708301664

$84.00

100ad2

Striker Cover

708303255

$7.00

100ad3

Hex. Forming Screw M5 X 16

210251650

Unavailable

100af

Gasket, Neoprene 2000Mm Long

219704476

Unavailable

100ag

Panel Nut M6 X 1.0

250100208

Unavailable

100ah

Torx Screw M6 X 20

250000722

Unavailable

100aj

Female Hinge

708302044

$11.00

100ak

Retaining Plate

708302046

$13.00

100am

Torx Truss PT K40 x 12

250001131

Unavailable

100an

Electronic Component Support

708302571

$24.00

100ap

Tuflok Plastic Rivet

293150230

Unavailable

100aq

LH Cargo

708302404

$95.00

100ar

Panel Nut M6 X 1.0

250100208

Unavailable

100as

Torx Screw M6 X 20

250000722

Unavailable

100at

Stainless Steel Flat Washer

234062670

Unavailable

100au

Retaining Plate

708302046

$13.00

100av

Torx Truss PT K40 x 12

250001131

Unavailable

100aw

Male Hinge

708302045

$11.00

100ax

LH Latch Assembly

708301794

$155.00

100ay

Torx Screw M6 X 20

250000722

Unavailable

100az

Connector Holder

710002033

Unavailable

100ba

LH Control

708301222

$44.00

100bb

Panel Nut M6 X 1.0

250100198

Unavailable

100bc

Torx Screw M6 X 20

250000722

Unavailable

100bd

Trim 3000Mm Long

219704540

$110.00

100bf

LH Cargo Fairing

708302401

$79.00

100bg

Torx Screw K50 X 16

250000720

Unavailable

100bj

Retainer Cable

708300385

$39.00

100bk

Screw PT Type K-50 X 16

250000959

Unavailable

100bm

LH Light Support

708302283

$50.00

100bn

Brace

708302284

$13.00

100bp

Tuflok Plastic Rivet

293150230

Unavailable

100bq

Panel Nut M6 X 1.0

250100198

Unavailable

100br

Torx Screw M6 X 20

250000722

Unavailable

100bs

Stainless Steel Flat Washer

234062670

Unavailable

100bt

Torx Screw K50 X 16

250000720

Unavailable

100bu

Rubber Bumper

293830005

Unavailable

100bv

RH Cargo

708302405

$95.00

100bw

Panel Nut M6 X 1.0

250100208

Unavailable

100bx

Torx Screw M6 X 20

250000722

Unavailable

100by

Stainless Steel Flat Washer

234062670

Unavailable

100bz

Retaining Plate

708302046

$13.00

100ca

Torx Truss PT K40 x 12

250001131

Unavailable

100cb

Male Hinge

708302045

$11.00

100cc

RH Latch Assembly

708301795

$155.00

100cd

Torx Screw M6 X 20

250000722

Unavailable

100cf

Connector Holder

710002033

Unavailable

100cg

RH Control

708301697

$44.00

100ch

Panel Nut M6 X 1.0

250100198

Unavailable

100cj

Torx Screw M6 X 20

250000722

Unavailable

100ck

Trim 3000Mm Long

219704540

$110.00

100cm

RH Cargo Fairing

708302402

$79.00

100cn

Torx Screw K50 X 16

250000720

Unavailable

100cp

Antena Cap

708301805

$4.00

100cq

Retainer Cable

708300385

$39.00

100cr

Screw PT Type K-50 X 16

250000959

Unavailable

100cs

RH Light Support

708302285

$50.00

100ct

Brace

708302284

$13.00

100cu

Tuflok Plastic Rivet

293150230

Unavailable

100cv

Panel Nut M6 X 1.0

250100198

Unavailable

100cw

Torx Screw M6 X 20

250000722

Unavailable

100cx

Stainless Steel Flat Washer

234062670

Unavailable

100cy

Torx Screw K50 X 16

250000720

Unavailable

100cz

Rubber Bumper

293830005

Unavailable

100da

Heat Shield

705016875

$48.00

100db

Edge Clip

517302785

Unavailable

100dc

Tuflok Plastic Rivet

293150230

Unavailable

200

LH Rear Holding Handle

708003456

$106.00

201

Bushing

708302461

$19.00

202

Socket Head Screw M8 X 30, Scotch Grip

250000823

$3.00

203

Flat Washer 8 mm

234082410

Unavailable

204

Stainless Steel Flat Washer 8 mm

234081670

Unavailable

210

Tuflock Phillips Plastic Screw

414745900

Unavailable

300

RH Rear Holding Handle

708003457

$106.00

301

Bushing

708302461

$19.00

302

Socket Head Screw M8 X 30, Scotch Grip

250000823

$3.00

303

Flat Washer 8 mm

234082410

Unavailable

304

Stainless Steel Flat Washer 8 mm

234081670

Unavailable

310

Tuflock Phillips Plastic Screw

414745900

Unavailable

671

Stainless Steel Flat Washer

234062670

Unavailable

672

Torx Screw M6 X 20, Scotch Grip

250000446

Unavailable

680

Panel Nut M6 X 1.0

250100208

Unavailable

700

Insert Half Hex Body M6 x 1.0

250100199

Unavailable

860

Torx Screw M6 X 20, Scotch Grip

250000446

Unavailable

861

Torx Screw M6 X 20, Scotch Grip

250000446

Unavailable

870

Cargo Rear Support

708301698

$90.00

880

Panel Nut M6 X 1.0

250100208

Unavailable

890

Torx Truss M8 X 16

250000881

Unavailable

891

Tuflok Plastic Rivet

293150230

Unavailable

905

Lanyard | Included 905 to 905d

708002532

$23.00

905d

Cord Decal

704905127

Unavailable

905f

Tuflok Plastic Rivet

293150230

Unavailable

905g

Torx Truss Screw M6 X 20

250000350

Unavailable

905h

Flat Washer M6, Stainless

234062600

Unavailable

905j

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

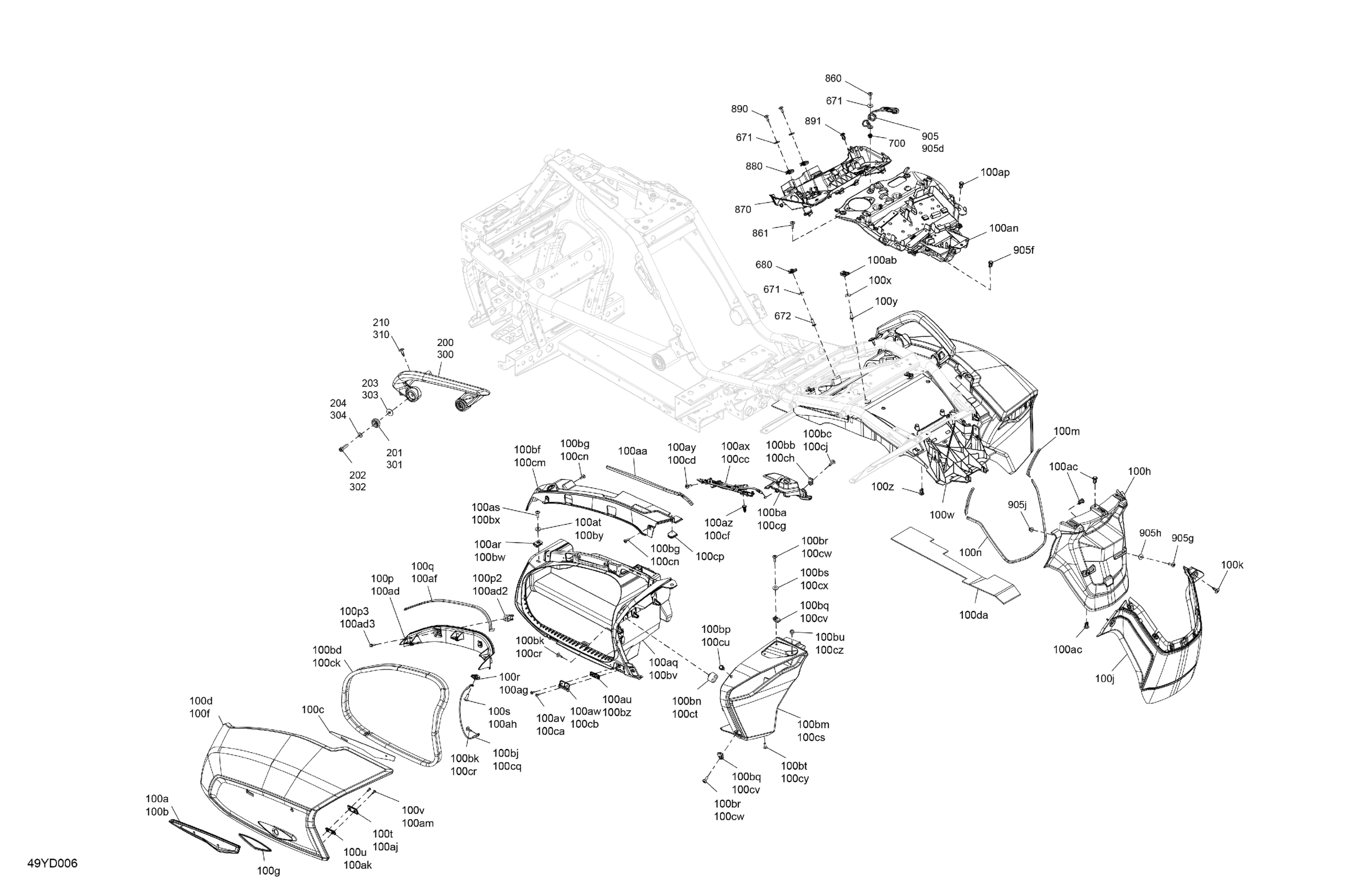

Can-Am F3 T - H6RB - T - Petrol, 2024 Body - Cargo Diagram
