Electric - System

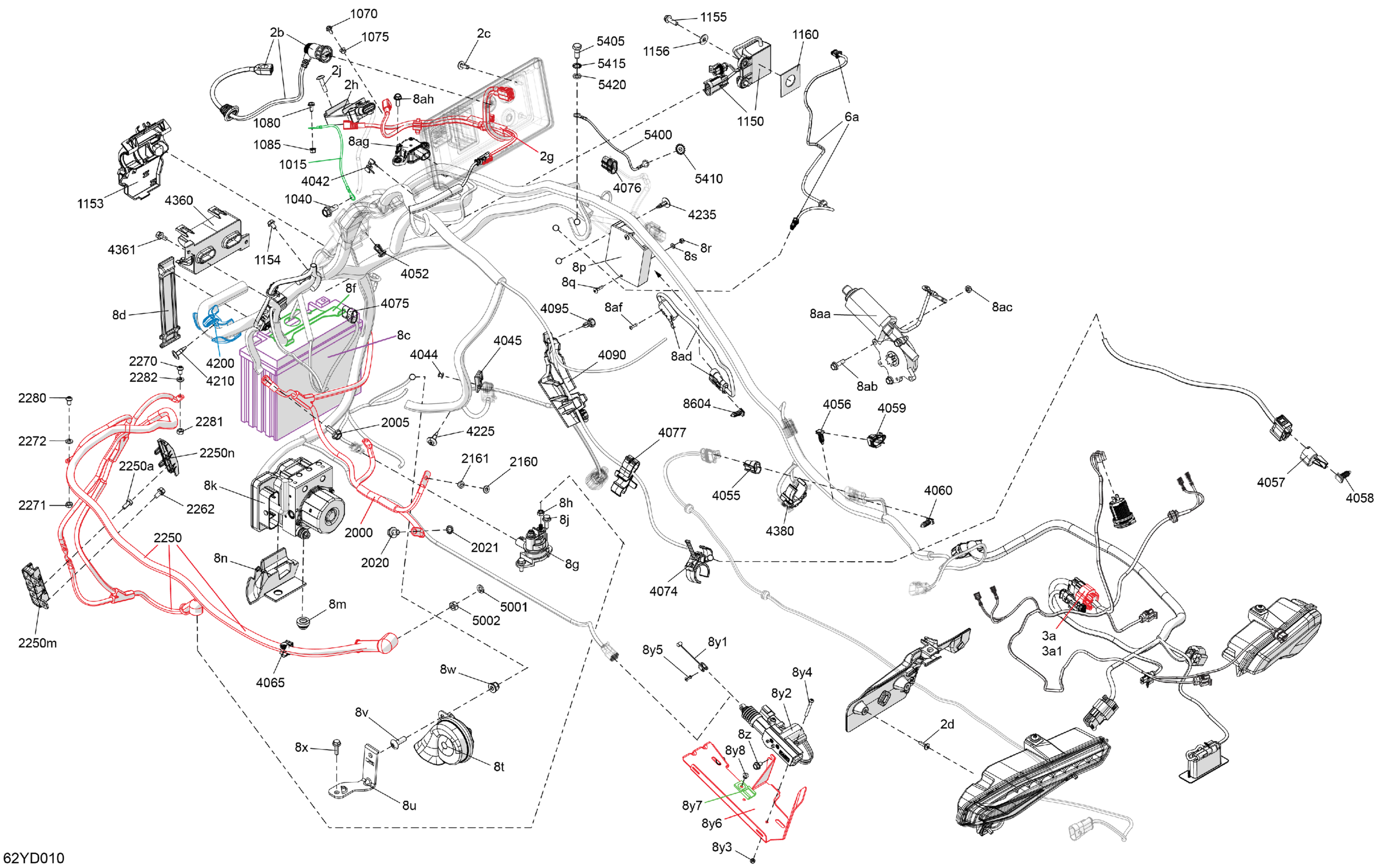

Can-Am F3 T - H6RA - T - White Pearl, 2024 Electric - System Diagram
#
2c
Torx Head Screw M6 X 16
250000717
Unavailable
2d
Torx Screw K50 X 16
250000720
Unavailable
2j
Torx Screw M6 X 25
250000758
Unavailable
3a1
Cap
710001225
Unavailable
8c
Battery, 12 Volts, 21 Amperes | Includes 8a to 8a1
219800519
Unavailable
8d
Latch
520000528
Unavailable
8g
Starter Relay
278003012
Unavailable
8h
Hex. Elastic Stop Nut M6
232561600
Unavailable
8j
Hex. Flange Screw M6 X 16, Scotch Grip
207561644
Unavailable
8m
Shock Damper
710003279
Unavailable
8q
Torx Screw M4 X 16
250000750
Unavailable
8r
Elastic Stop Nut M4
232541484
Unavailable
8s
Flat Washer 4 mm
234041480
Unavailable
8v
Torx Truss M8 X 25
250000874
Unavailable
8w
Hex. Flange Elastic Nut M8
233281414
Unavailable
8x
Hex. Flange Screw M6 X 20, Scotch Grip
207562034
Unavailable
8y3
Elastic Stop Nut M4
232541414
Unavailable
8y4
Socket Head Screw M4 X 40
205444056
Unavailable
8y5
Pop Rivet 5/32
390403000
Unavailable
8y7
Clip
270000141
Unavailable
8y8
Pop Rivet 3/16"
390402400
Unavailable
8z
Hex. Flange Screw M6 X 12
210261250
Unavailable
8ab
Hex. Flange Screw M6 X 20
207662054
Unavailable
8ac
Elastic Stop Nut M6
232561434
Unavailable
8ad
Brake Pressure Switch Ass'y
710001379
Unavailable
8af
Pop Rivet
293150150
Unavailable
8ag
Yaw Rate Sensor
710005658
Unavailable
8ah
Hex. Flange Screw M6 X 16
210261650
Unavailable
1040
Hex. Flange Screw M8 X 20, Scotch Grip
207582044
Unavailable
1070
Hex. Flange Screw M5 X 10
207551044
Unavailable
1075
Flange Elastic Nut M5
233251434
Unavailable
1080
Hex. Flange Screw M5 X 10
207551044
Unavailable
1085
Flange Elastic Nut M5
233251434
Unavailable
1154
Hex. Forming Screw M6 X 10
210261050
Unavailable
1155
Hexagonal Head Screw
210262050
Unavailable
1156
Flat Washer 6 mm
234062410
Unavailable
1160
Rubber Bumper
293830091
Unavailable
2005
Hex. Flange Screw M8 X 20, Scotch Grip
207582044
Unavailable
2020
Hex. Flange Screw M8 X 12, Scotch Grip
207581244
Unavailable
2021
Serrated Lock Washer 8 mm
234481608
Unavailable
2160
Stainless Flat Washer M6
234061600
Unavailable
2161
Elastic Stop Nut M6
232561434
Unavailable
2250a
Hex. Screw M6 X 14
207161444
Unavailable
2250b
Protector Cap
710000393
Unavailable
2250p
Fuse 80 A
710008102
Unavailable
2262
Hex. Flange Screw M6 X 12
210261250
Unavailable
2270
Socket Head Screw M6 X 10, Scotch Grip
205961060
Unavailable
2271
Hex. Nut M6
232061600
Unavailable
2272
Lock Washer Helical M6
234161601
Unavailable
2280
Socket Head Screw M6 X 10, Scotch Grip
205961060
Unavailable
2281
Hex. Nut M6
232061600
Unavailable
2282
Lock Washer Helical M6
234161601
Unavailable
4042
Lock
710001222
Unavailable
4044
Pop Rivet 3/16"
390402400
Unavailable
4045
Clip
270000141
Unavailable
4052
Tuflok Plastic Rivet
293150230
Unavailable
4056
Connector Holder
710002033
Unavailable
4058
Connector Holder
710002033
Unavailable
4060
Connector Holder
710002033
Unavailable
4065
Support Cable
293750083
Unavailable
4095
Tuflok Plastic Rivet
293150230
Unavailable
4210
Tuflock Phillips Plastic Screw
414745900
Unavailable
4225
Tuflock Phillips Plastic Screw
414745900
Unavailable
4235
Tuflock Phillips Plastic Screw
414745900
Unavailable
4360
Fuse Holder Support
710004472
Unavailable
4361
Hex. Flange Screw M6 X 12
210261250
Unavailable
5001
Lock Washer 8 mm, Stainless
234181601
Unavailable
5002
Hex. Nut M8
232081414
Unavailable
5405
Hex. Screw M8 X 20, Scotch Grip
207382060
Unavailable
5410
Lock Washer Serrated M6
250200041
Unavailable
5415
Serrated Lock Washer 8 mm
234481608
Unavailable
5420
Washer
250200111
Unavailable
8604
Connector Holder
710002033
Unavailable
