Description

Price

100

LH Console Support Ass'y | Includes 100 to 100b

708400730

$100.00

100b

Panel Nut M5 X 0.8

250000958

Unavailable

105

Trim 1000Mm Long

219704354

Unavailable

110

Panel Nut M6 X 1.0

250100208

Unavailable

200

LH Front Headlight Support

708400748

$6.00

205

Adjuster

708400814

$11.00

210

Retaining Ring

708400823

Unavailable

220

Large Shoulder Nut M6

705014119

$6.00

230

Ball Stud

705018616

$19.00

300

RH Console Support Ass'y | Includes 300 to 300b

708400731

$110.00

300b

Panel Nut M5 X 0.8

250000958

Unavailable

310

Panel Nut M6 X 1.0

250100208

Unavailable

400

RH Front Headlight Support

708400749

$6.00

405

Adjuster

708400814

$11.00

410

Retaining Ring

708400823

Unavailable

420

Large Shoulder Nut M6

705014119

$6.00

430

Ball Stud

705018616

$19.00

450

GPS Support

708400864

$45.00

455

Torx Screw K50 X 16

250000720

Unavailable

460

Torx Screw K50 X 16

250000720

Unavailable

500

Torx Screw M6 X 25

250000758

Unavailable

510

Hex. Flange Elastic Nut M6

233261494

Unavailable

550a

Upper Console

708400733

$115.00

550b

LH Enclosure Cover

708400734

$20.00

550c

RH Enclosure Cover

708400735

$20.00

555

Nut Housing M6 | Includes 555 to 555b

269502544

Unavailable

555a

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

Unavailable

555b

Elastic Stop Nut M6, Brass

232561200

Unavailable

560

Torx Truss Screw M6 X 25

250000807

Unavailable

565

Torx Truss Screw M6 X 25

250000807

Unavailable

570

Torx Screw Nylon

250000732

Unavailable

575

Torx Screw Nylon

250000732

Unavailable

580

Stainless Steel Flat Washer M5

234052670

Unavailable

585

Stainless Steel Flat Washer M5

234052670

Unavailable

610

Panel Nut M5 X 0.8

250000958

Unavailable

710

Panel Nut M5 X 0.8

250000958

Unavailable

910

Torx Screw M5 X 20

250000724

Unavailable

1010

Torx Screw M5 X 20

250000724

Unavailable

1400

LH Mirror Plate Support Ass'y | Included 1400 to 1400b

705008211

$28.00

1400b

Spring

705006661

$3.00

1410

Torx Screw Truss Head K50X20 T20

250000760

Unavailable

1500

RH Mirror Plate Support Ass'y | Included 1500 to 1500b

705008210

$28.00

1500b

Spring

705006661

$3.00

1510

Torx Screw Truss Head K50X20 T20

250000760

Unavailable

1600

Column Fairing

708400108

$18.00

1610

Torx Screw M5 X 25

250000762

Unavailable

1615

Torx Screw M5 X 25

250000762

Unavailable

1620

Stainless Steel Flat Washer M5

234052670

Unavailable

1625

Stainless Steel Flat Washer M5

234052670

Unavailable

1700

Deep Black, LH Consol Fairing

708400340

$220.00

1700a

Bare, LH Console Fairing

708400067

$99.00

1720

Tuflok Plastic Rivet

293150230

Unavailable

1800

Deep Black, RH Consol Fairing

708400338

$220.00

1800a

Bare, RH Console Fairing

708400069

$99.00

1820

Tuflok Plastic Rivet

293150230

Unavailable

2000

Dashboard

708400714

$64.00

2010

LH Speaker Grille

708400715

$11.00

2020

RH Speaker Grille

708400716

$11.00

2030

Edge Clip

517302785

Unavailable

2120

Thermal Insulation

708400736

$16.00

2200

Box Cover

708400996

$165.00

2210

Gasket

293830244

$6.00

2240

Ball Stud

705018612

$19.00

2250

M6 Nut Housing Ass'y | Includes 7r to 7r2

269500725

Unavailable

2250a

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

Unavailable

2250b

Hex. Elastic Stop Nut M6

232561600

Unavailable

2310

Panel Nut M6 X 1.0

250100208

Unavailable

2315

Panel Nut M6 X 1.0

250100208

Unavailable

2330

Torx Truss Screw M6 X 20

250000705

Unavailable

2335

Torx Truss Screw M6 X 20

250000705

Unavailable

2340

Spring

705006661

$3.00

2350

Receptacle

708400215

$8.00

2360

Torx Screw K50 X 16

250000720

Unavailable

2600

Deep Black, Front Fairing

708400723

$230.00

2900a

LH Mirror Support

708400224

$34.00

2900b

Flat Head Stud M5

705006733

$21.00

2900c

Stud Ball M5

708400538

$18.00

2900d

Flange Elastic Nut M5

233251434

Unavailable

2900f

Edge Clip

517302785

Unavailable

3000

LH Rear View Mirror Housing Ass'y | Included 3000 to 3000g

708400592

$145.00

3000f

Spring

705010625

$11.00

3000g

Hex. Elastic Stop Nut M6

232561600

Unavailable

3010

Torx Truss PT K40 x 12

250001131

Unavailable

3100

Deep Black, LH Rear View Mirror Trim

708400465

$58.00

3110

Clip

517306478

Unavailable

3200a

RH Mirror Support

708400225

$34.00

3200b

Flat Head Stud M5

705006733

$21.00

3200c

Stud Ball M5

708400538

$18.00

3200d

Flange Elastic Nut M5

233251434

Unavailable

3200f

Edge Clip

517302785

Unavailable

3300

RH Rear View Mirror Housing Ass'y | Included 3300 to 3300g

708400593

$145.00

3300f

Spring

705010625

$11.00

3300g

Hex. Elastic Stop Nut M6

232561600

Unavailable

3310

Torx Truss PT K40 x 12

250001131

Unavailable

3400

Deep Black, RH Rear View Mirror Trim

708400466

$58.00

3410

Clip

517306478

Unavailable

3500

Hex. Flange Screw M6 X 25

250000793

Unavailable

3505

Hex. Flange Screw M6 X 16

210261650

Unavailable

3510

Panel Nut M6 X 1.0

250100208

Unavailable

3520

Flat washer M6

250200164

Unavailable

3600

Hex. Flange Screw M6 X 25

250000793

Unavailable

3605

Hex. Flange Screw M6 X 16

210261650

Unavailable

3610

Panel Nut M6 X 1.0

250100208

Unavailable

3620

Flat washer M6

250200164

Unavailable

3800

Switch Bezel

708400205

$15.00

3810

Switch Plug

708400866

$4.00

3820

Switch Plug

708400866

$4.00

3900

Front Access Cover

705018181

$38.00

4000a

Black Polycarbonate, LH Acces Panel

708400238

$23.00

4000b

Cover Latch Quarter Turn

708400065

Unavailable

4100a

Black Polycarbonate, RH Acces Panel

708400239

$23.00

4100b

Cover Latch Quarter Turn

708400065

Unavailable

4200

Carbon Black, LH Windshield Base

708400127

$130.00

4210

Torx Screw M6 X 25, Scotch Grip

250000328

Unavailable

4230

Stainless Flat Washer M6

234061600

Unavailable

4300

Carbon Black, RH Windshield Base

708400128

$130.00

4310

Torx Screw M6 X 25, Scotch Grip

250000328

Unavailable

4330

Stainless Flat Washer M6

234061600

Unavailable

4400

Windshield

708400775

$400.00

6510

Stainless Steel Flat Washer M5

234052670

Unavailable

6511

Rubber Washer

293830190

$2.00

6512

Torx Screw M5 X 20

250000528

Unavailable

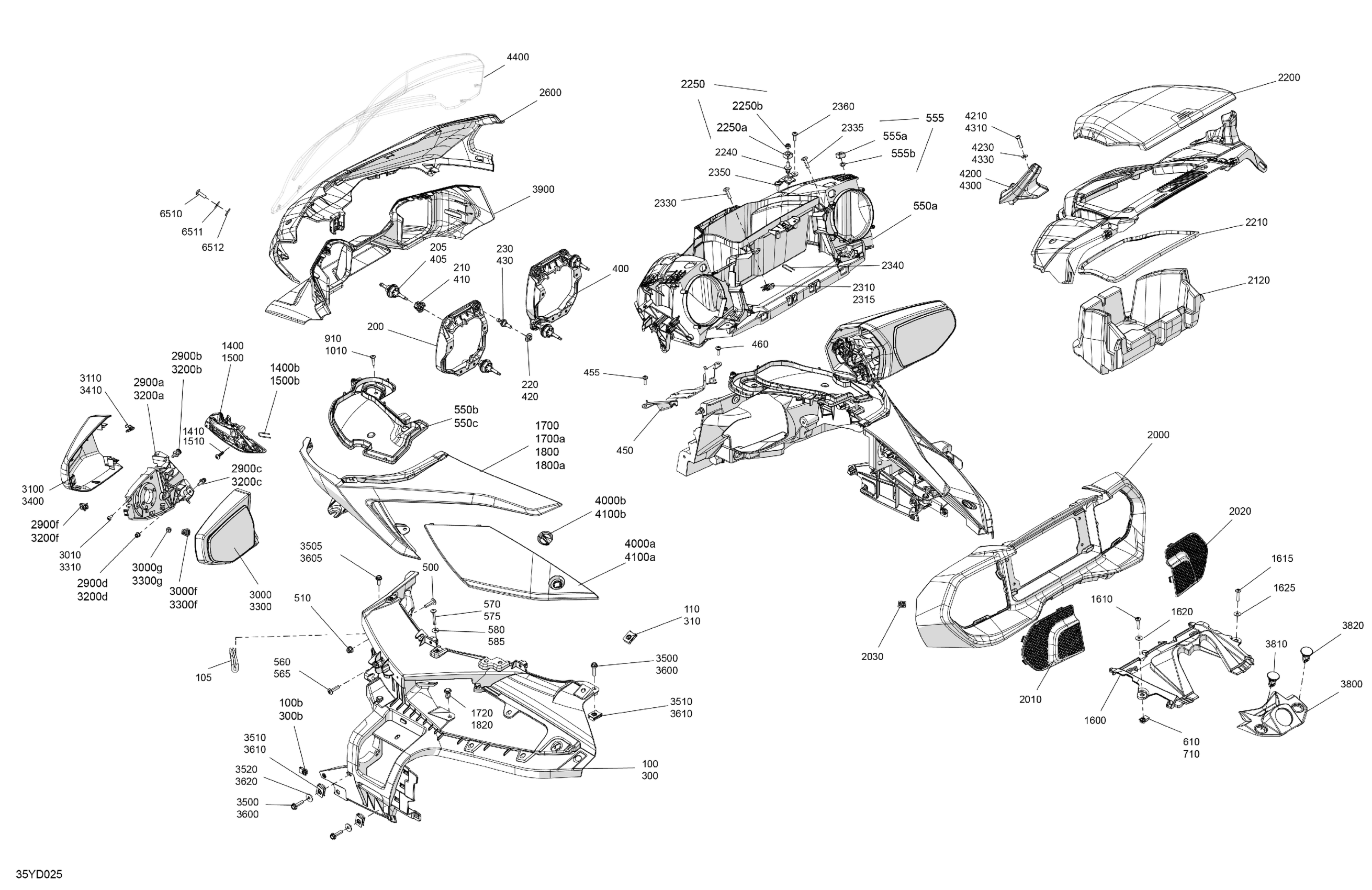

Can-Am F3 T - H6RA - T - White Pearl, 2024 Body - Console Diagram
