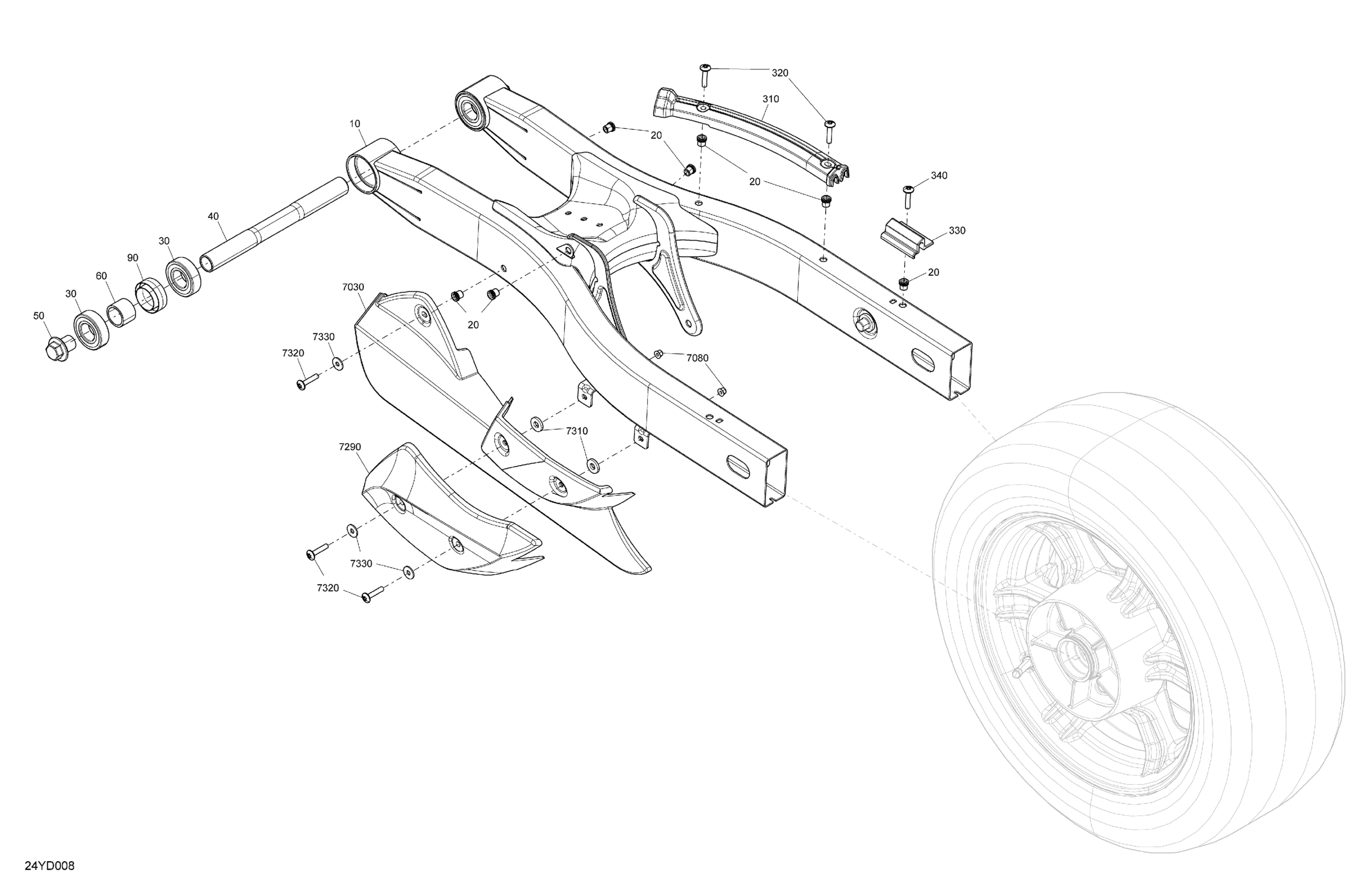

Can-Am F3 T - H6RA - T - White Pearl, 2024 Suspension - Rear Diagram

Description

Price

Swing Arm

706001574

$456.00

Insert

293450275

Unavailable

Ball Bearing

293350153

Unavailable

Swing Arm Axle

706001182

$94.00

Bolt M20

706001579

$17.00

Spacer

706001152

$9.00

Sleeve

706001366

$1.00

310

Protector

710004281

$26.00

320

Torx Truss Screw M6 X 30

250000843

Unavailable

330

Hose Support

710002145

$8.00

340

Torx Truss Screw M6 X 30

250000843

Unavailable

7030

Lower Belt Guard

705002092

$49.00

7080

Hex. Flange Elastic Nut M6

233261494

Unavailable

7290

Belt Guard Moulding

705009446

$36.00

7310

Self-Adhesive Spacer

705015250

Unavailable

7320

Stainless, Torx Screw M6 X 30

250000842

Unavailable

7330

Stainless Steel Flat Washer

234062670

Unavailable
