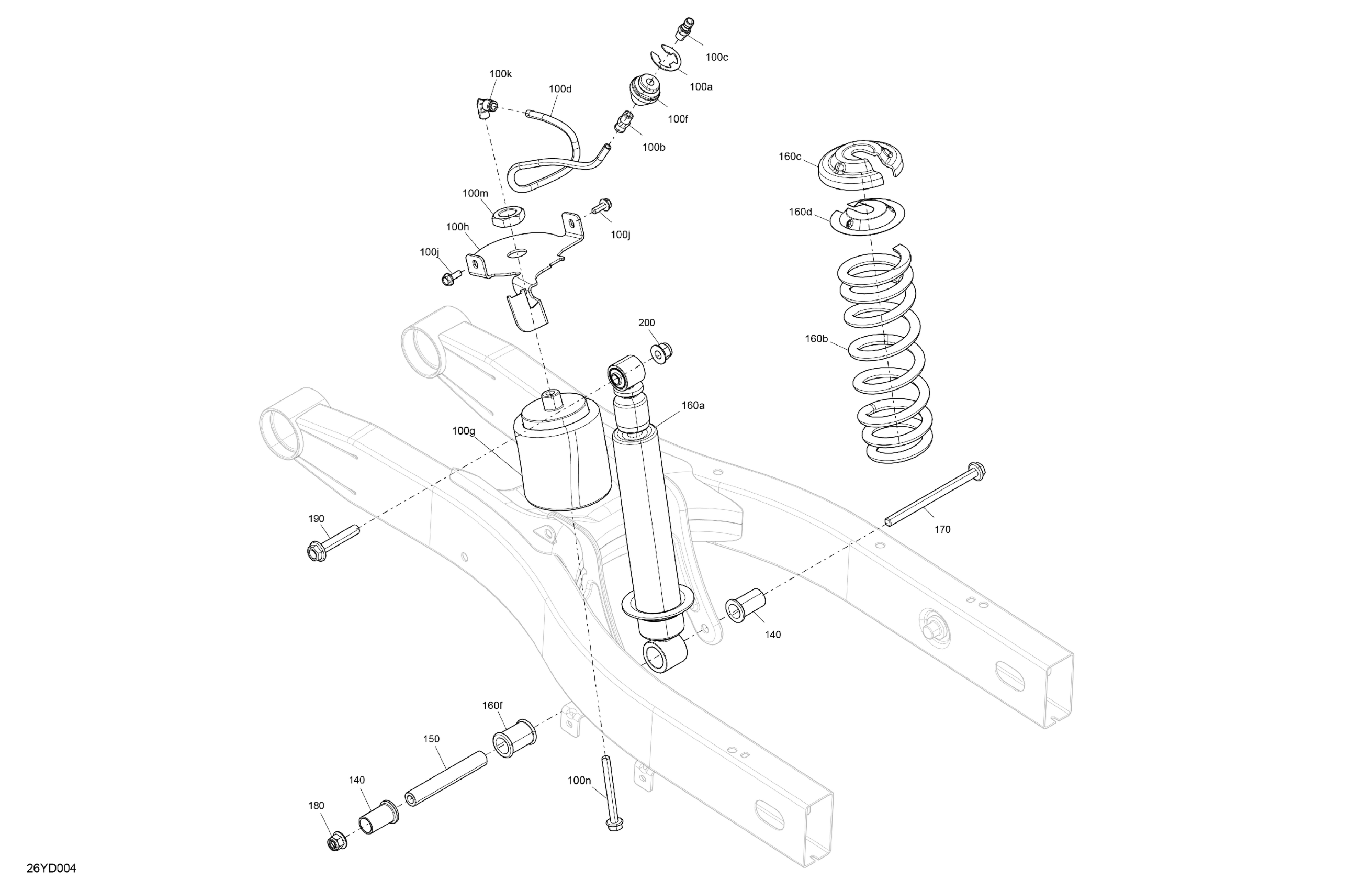

Can-Am F3 T - H6RA - T - White Pearl, 2024 Suspension - Rear Shock Diagram

Description

Price

100a

Circlip

293370123

$3.00

100b

Connector

706000869

Unavailable

100c

Air Valve

706002797

Unavailable

100d

Hose

706002679

$9.00

100f

Pneumatic Connector

706004028

$19.00

100g

Air Damper Kit

219800175

$291.00

100h

Support Plate

706002456

$25.00

100j

Hex. Forming Screw M6 X 10

210261050

Unavailable

100k

Elbow 90°

706001018

$29.00

100m

Jam Nut M20

250100119

$4.00

100n

Hex. Flange Screw M8 X 75

207687544

Unavailable

140

Spacer

706000410

$14.00

150

Shock Absorber Shaft

706000409

$50.00

160a

Shock

706001706

$137.00

160b

Spring

706001707

$50.00

160c

Spring Stopper

503193781

$18.00

160d

Cap

503193782

$10.00

160f

Urethane Cushion

503191609

$18.00

170

Hex. Flange Screw M10 X 140

230604034

$7.00

180

Hex. Flange Elastic M10 x 1.5

233201464

Unavailable

190

Hex. Flange Screw M10 X 55

207605554

$8.00

200

Hex. Flange Elastic M10 x 1.5

233201464

Unavailable
