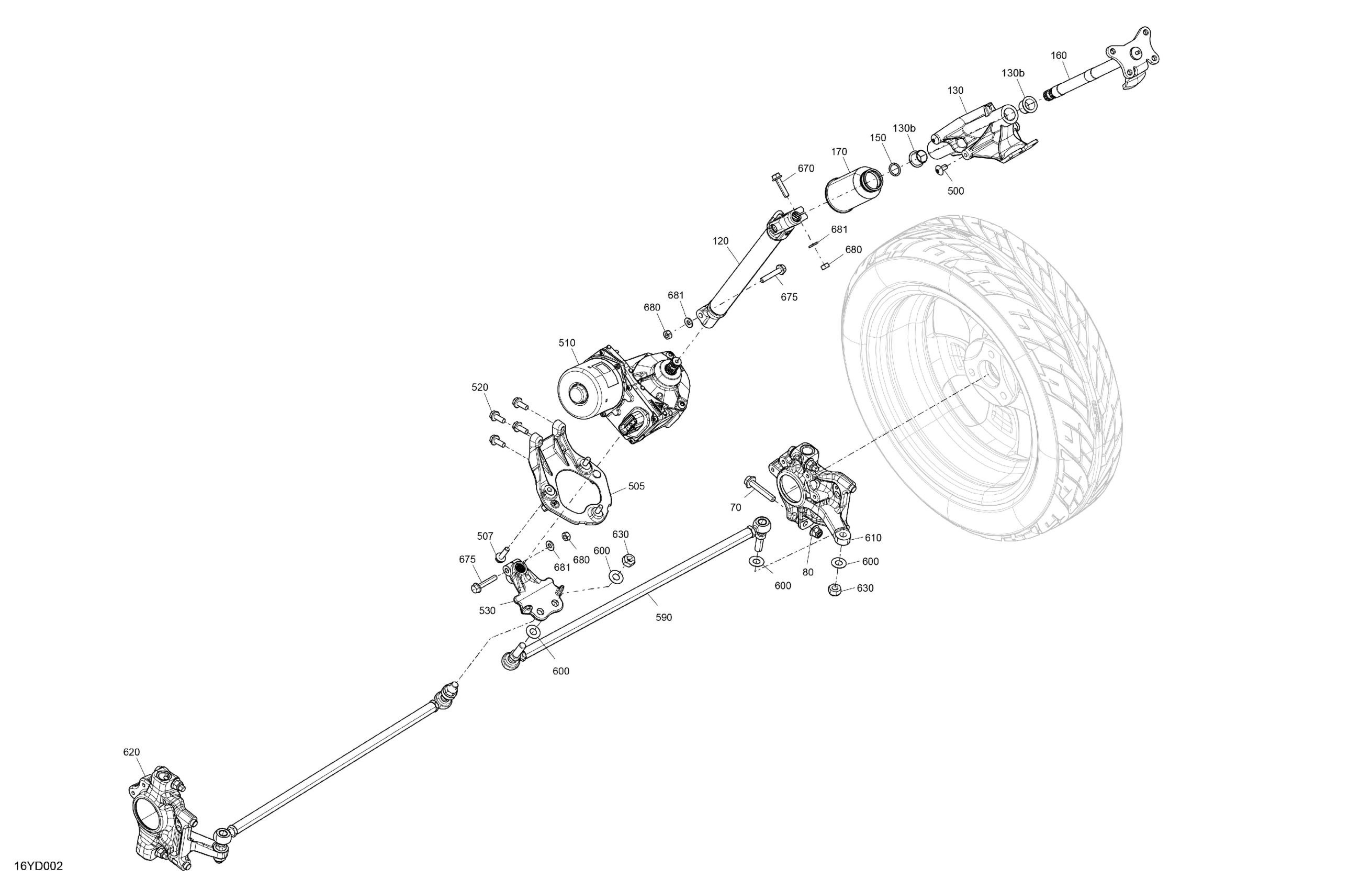

Can-Am F3 T - H6RA - T - White Pearl, 2024 Mechanic - Steering Column Diagram

Description

Price

Hex. Flange Screw M10 X 55

207605554

$8.00

Flange Elastic Nut M10

233201466

Unavailable

120

Steering Column

709402421

$155.00

130

Support Ass'y | Included 130 to 130b

709401340

$110.00

130b

Steering Bushing

709402725

Unavailable

150

O-Ring

709000089

Unavailable

160

Upper Steering Column

709401397

$160.00

170

Bellows

709400790

$13.00

500

Torx Screw M8 X 16

250000751

Unavailable

505

DPS Support

709401771

$44.00

507

Hex. Flange Screw M8 X 30, Scotch Grip

207583044

Unavailable

510

Power Steering Ass'y

709402842

$1,791.00

520

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

Unavailable

530

Pitman Arm

709401760

$38.00

590

Tie Rod Ass'y

709401820

$159.00

600

Hardened Washer

706200281

Unavailable

610

RH Knuckle Assembly

709402236

$190.00

620

LH Knuckle Assembly

709402233

$196.00

630

Hex. Elastic Hex. Nut M12

250100089

Unavailable

670

Hex. Flange Screw M8 X 35

250001021

Unavailable

675

Hex. Flange Screw M8 X 45 Scotch Grip

250001133

Unavailable

680

Hex. Nut M8

232081417

$3.00

681

Washer

503189157

Unavailable
