Description

Price

10

LH Front Caliper | Includes 10 to 10b

705600987

$381.00

10a

Brake Pad Kit

219800237

$79.00

10b

Spring/Pin/Clip Kit

219800238

$27.00

20

RH Front Caliper | Includes 20 to 20b

705600988

$381.00

20a

Brake Pad Kit

219800237

$79.00

20b

Spring/Pin/Clip Kit

219800238

$27.00

30

Hex Flange Screw M10 X 65

207506556

$7.00

40

RH Front Brake Hose Flexible | Includes 40 to 40a

705601672

$61.00

40a

Clamp

293650256

Unavailable

45

Hex. Flange Screw M6 X 16, Scotch Grip

207561634

Unavailable

46

Panel Nut M6 X 1.0

250100208

Unavailable

50

Washer

414920600

Unavailable

60

Banjo Bolt/ Bleeder

705601201

Unavailable

61

Bleeder Bolt Cap

705601190

Unavailable

65

LH Front Brake Hose Flexible | Includes 65 to 65a

705601673

$61.00

65a

Clamp

293650256

Unavailable

70

Front Brake Disk

705601631

$154.00

370

Anchorage Tube

705601987

$5.00

400

Tandem Rigid Tube | Includes 400 to 400a

705601157

$32.00

410

Tandem Rigid Tube | Includes 410 to 410a

705601158

$32.00

420

Washer

414920600

Unavailable

430

Banjo Bolt

507032551

Unavailable

440

Rear Brake Rigid Tube

705601159

$32.00

700

Bleeder Screw

705600502

Unavailable

710

Bleeder Bolt Cap

705601190

Unavailable

8850

Speed Sensor

710006981

Unavailable

8851

Socket Head Screw M6 X 16, Scotch Grip

205561660

Unavailable

8852

Front Sensor Wheel

705601512

$44.00

8853

Torx-truss M/s M6 X 10

250000995

Unavailable

8855

LH Support Wire

710004860

$2.00

8860

Sensor Support

710009856

$12.00

8861

Hex. Flange Screw M6 X 12

210261250

Unavailable

8900

Speed Sensor

710006981

Unavailable

8901

Socket Head Screw M6 X 16, Scotch Grip

205561660

Unavailable

8902

Front Sensor Wheel

705601512

$44.00

8903

Torx-truss M/s M6 X 10

250000995

Unavailable

8905

RH Support Wire

710004861

$2.00

8910

Sensor Support

710009857

$11.00

8911

Hex. Flange Screw M6 X 12

210261250

Unavailable

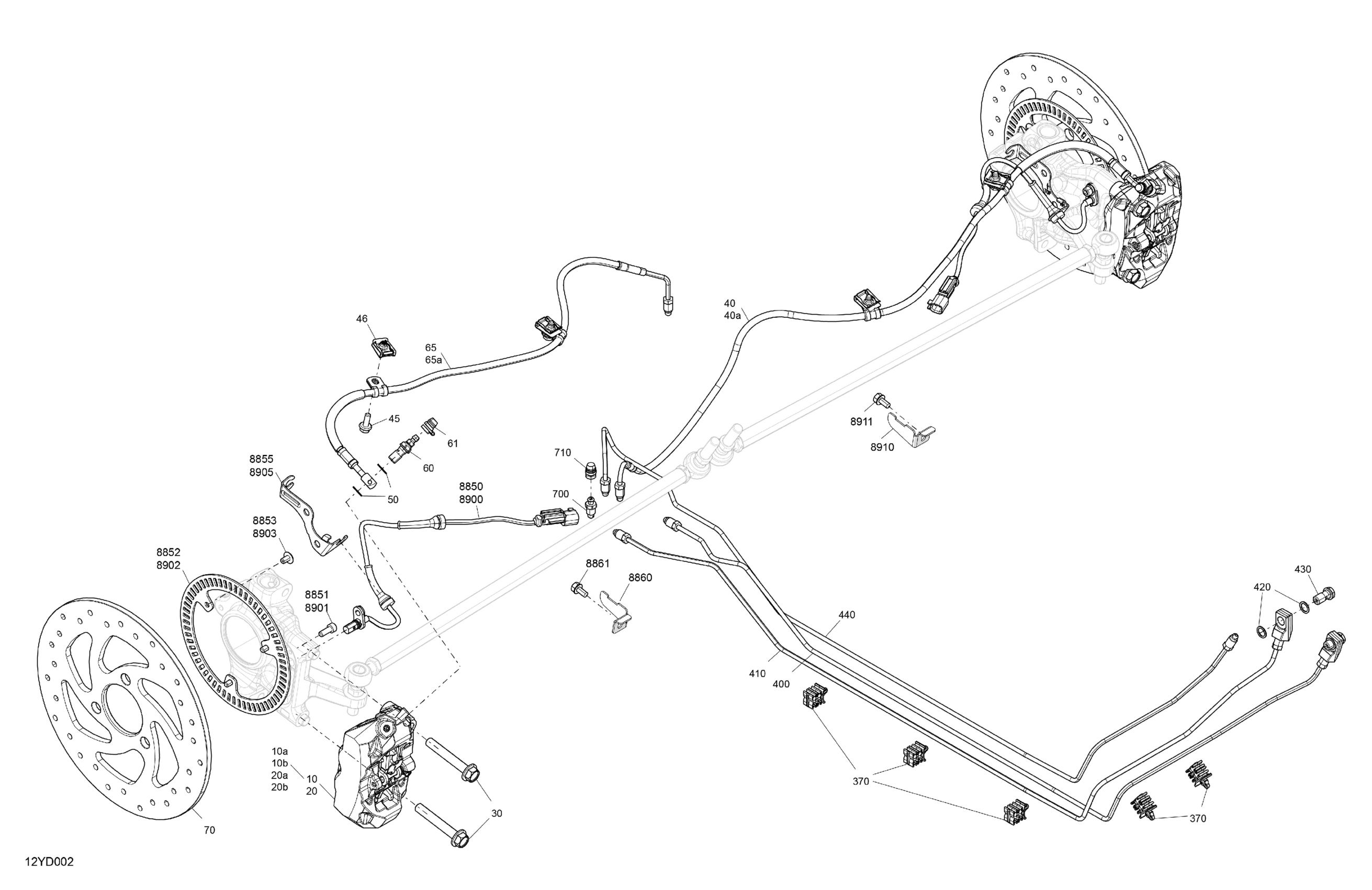

Can-Am F3 T - H6RA - T - White Pearl, 2024 Mechanic - Front Brakes Diagram

Clamp

Hex. Flange Screw M6 X 16, Scotch Grip

Panel Nut M6 X 1.0

Washer

Banjo Bolt/ Bleeder

Bleeder Bolt Cap

Clamp

Washer

Banjo Bolt

Bleeder Screw

Bleeder Bolt Cap

Speed Sensor

Socket Head Screw M6 X 16, Scotch Grip

Torx-truss M/s M6 X 10

Hex. Flange Screw M6 X 12

Speed Sensor

Socket Head Screw M6 X 16, Scotch Grip

Torx-truss M/s M6 X 10

Hex. Flange Screw M6 X 12
