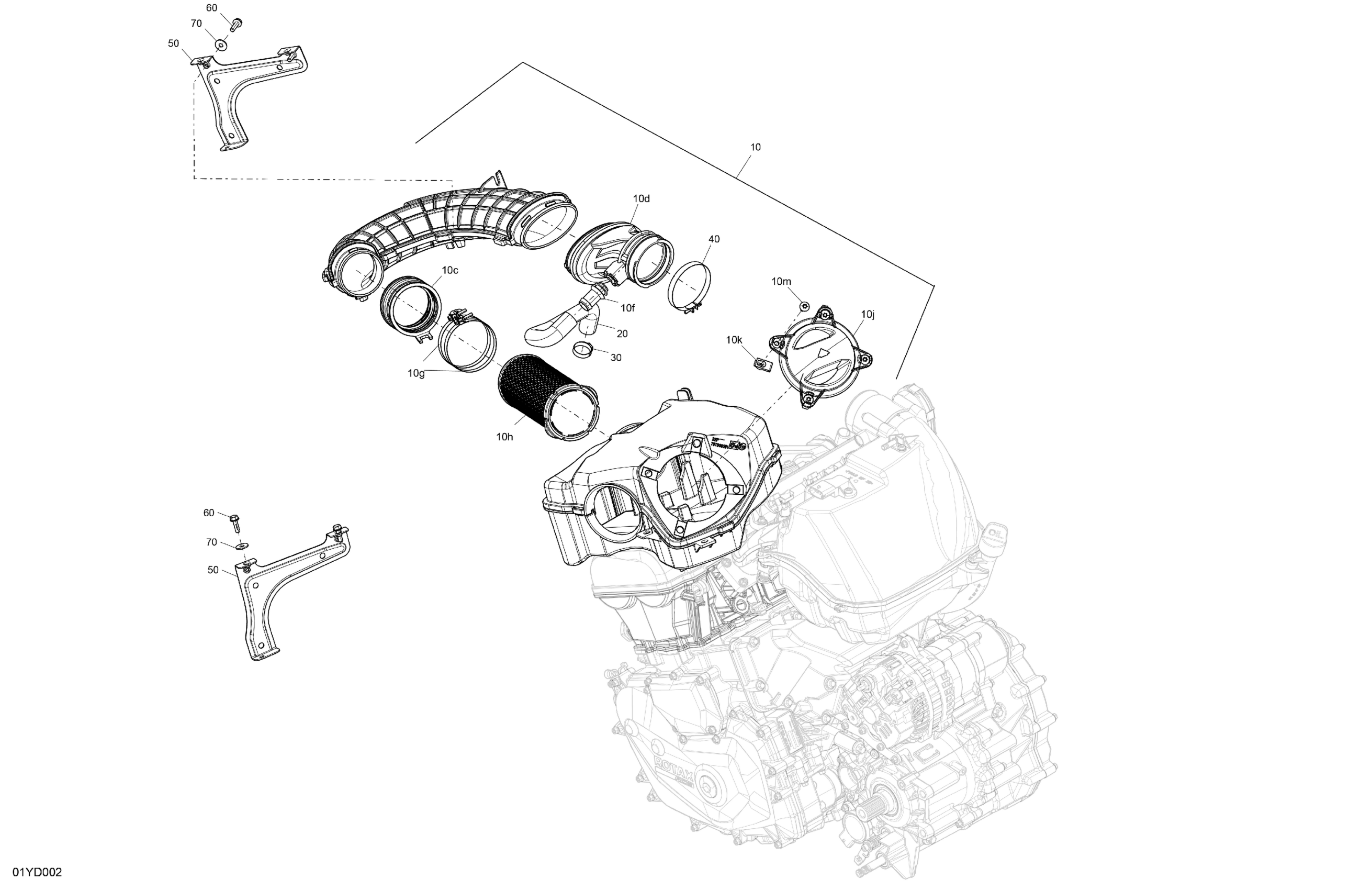

Can-Am F3 T - H6RA - T - White Pearl, 2024 Engine - Air Intake Diagram

Description

Price

Intake Silencer Ass'y | Includes 10 to 10m

707801124

$380.00

10c

Intake Adaptor

707800590

$34.00

10d

Air Intake Adaptor

707800388

$34.00

10f

Breather Valve

273000234

$10.63

10g

Gemi Clamp

508000150

$13.00

10h

Air Filter

707800483

$47.00

10j

Cover

707801131

$20.00

10k

Panel Nut M6 X 1.0

250100198

$1.73

10m

Torx Truss Screw M6 X 16

250000348

$1.74

Formed Hose

707800824

$19.00

Oeticker Gear Clamp, 25.6-706R

509000442

$4.12

Gemi Clamp

508000346

$9.31

Air Intake Bracket | Includes 50 to 50b

707800602

$17.00

Hex. Flange Screw M6 X 20

250000917

$2.06

Flat Washer M6, Stainless

234062600

$0.64
