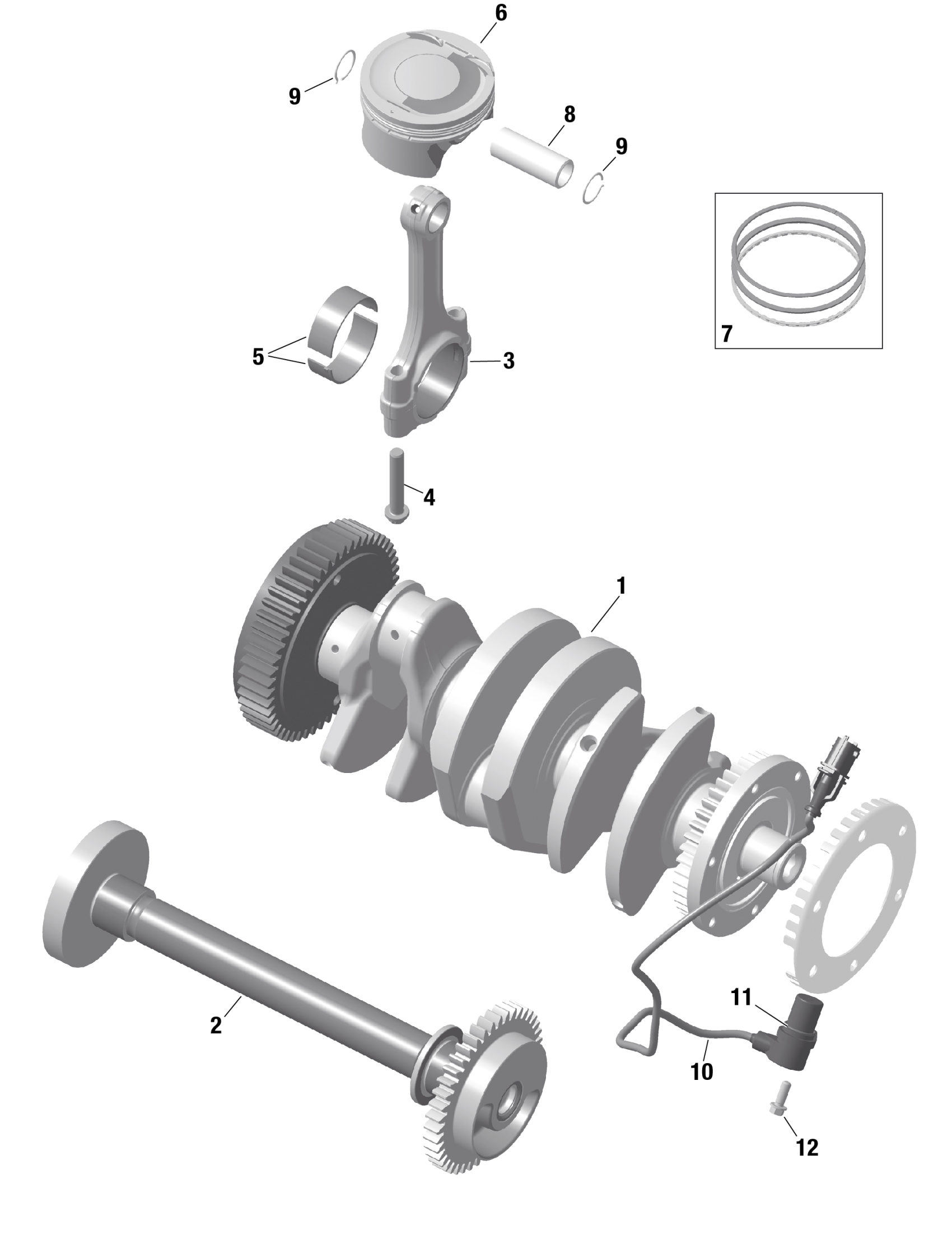

Can-Am F3 T - H6RA - T - White Pearl, 2024 ROTAX - Crankshaft and Pistons Diagram

#

Description
Price

1

Crankshaft

420219783

$1,288.00

2

Balance Shaft

420637206

$307.00

3

Connecting Rod Ass'y | Includes 3 to 4

420217599

$138.00

4

Connecting Rod Screw M9 X 1

420441461

$8.00

5

Plain Bearing

420233291

$25.00

6

Piston 83.97 mm Ass'y | Includes 6 to 7

420685741

$212.00

7

Piston Ring Set

420685744

Unavailable

8

Piston Pin

420216360

$32.00

9

Piston Circlip

420845107

Unavailable

10

Crankshaft Position Sensor Ass'y | Includes 10 to 11

420966570

Unavailable

11

O-Ring

420431580

Unavailable

12

Torx Flange Screw M6 X 16

420440164

Unavailable
