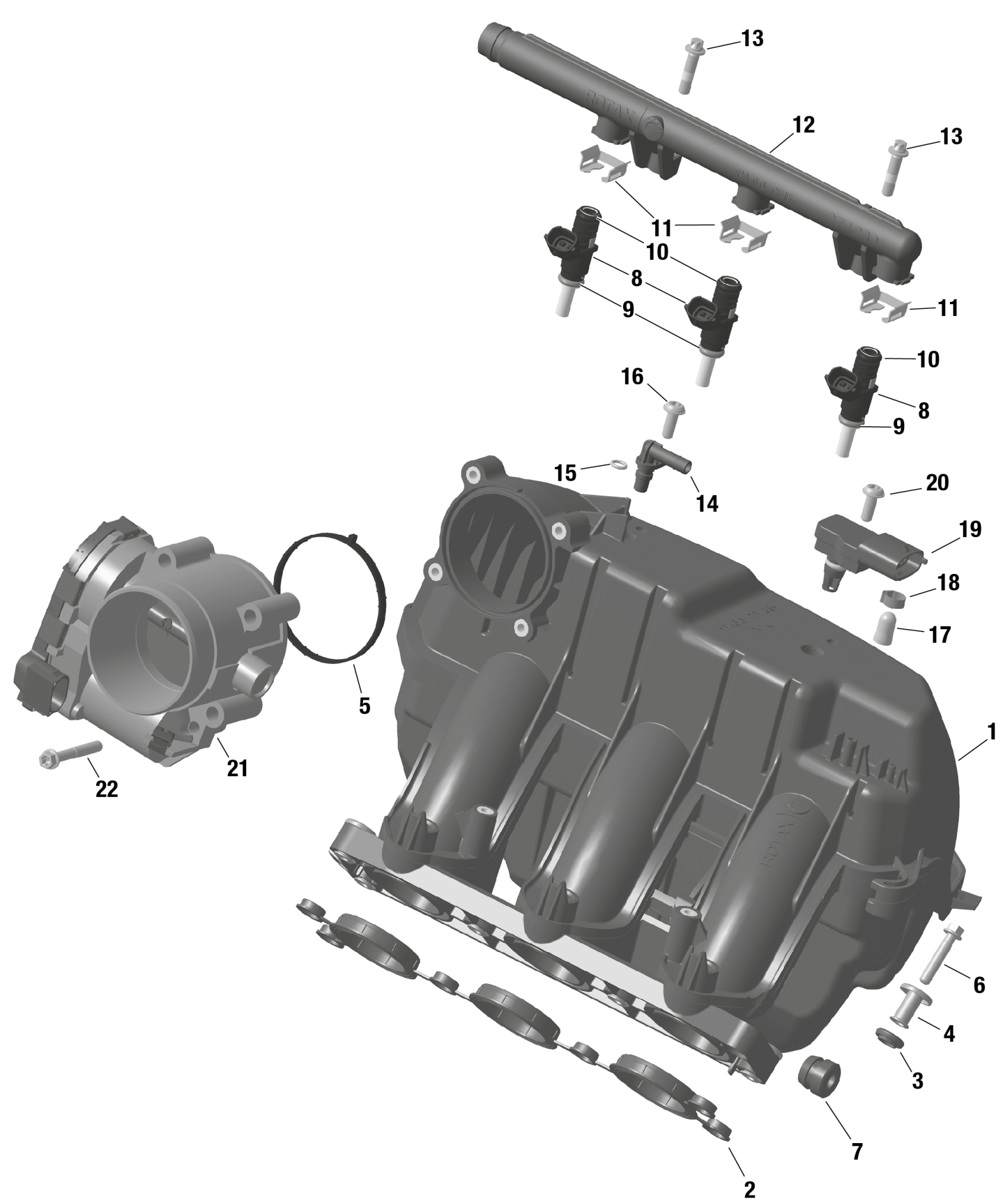

Can-Am F3 T - H6RA - T - White Pearl, 2024 ROTAX - Air Intake Manifold And Throttle Body Diagram

#

Description
Price

1

Airbox Ass'y | Includes 1 to 3

420667687

$280.00

2

Gasket | One Piece Gasket

420431667

$37.00

3

Distance Sleeve

420629175

Unavailable

4

Not Available As Spare Parts

XXX

Unavailable

5

Gasket

420431901

$35.00

6

Torx Flange Screw M6 X 30

420440647

Unavailable

7

Isolator

420201170

$16.00

8

Fuel Injector This part replaces 420274217.

420274218

$122.00

9

O-Ring

420431890

Unavailable

10

O-Ring

420631220

Unavailable

11

Injector Clip

420853030

Unavailable

12

Fuel Rail

420274230

$34.00

13

Torx Flange Screw M6 X 25

420440234

Unavailable

14

Fitting

420201191

$7.00

15

O-Ring

420230530

Unavailable

16

Torx Flange Screw M6 X 16

420641588

Unavailable

17

Cap

420960770

Unavailable

18

Clamp

420853653

Unavailable

19

Pressure And Temperature Sensor

420874658

Unavailable

20

Torx Flange Screw M6 X 16

420641588

Unavailable

21

Throttle Body Socket Ass'y

420892596

Unavailable

22

Torx Flange Screw M6 X 45

420440324

Unavailable
