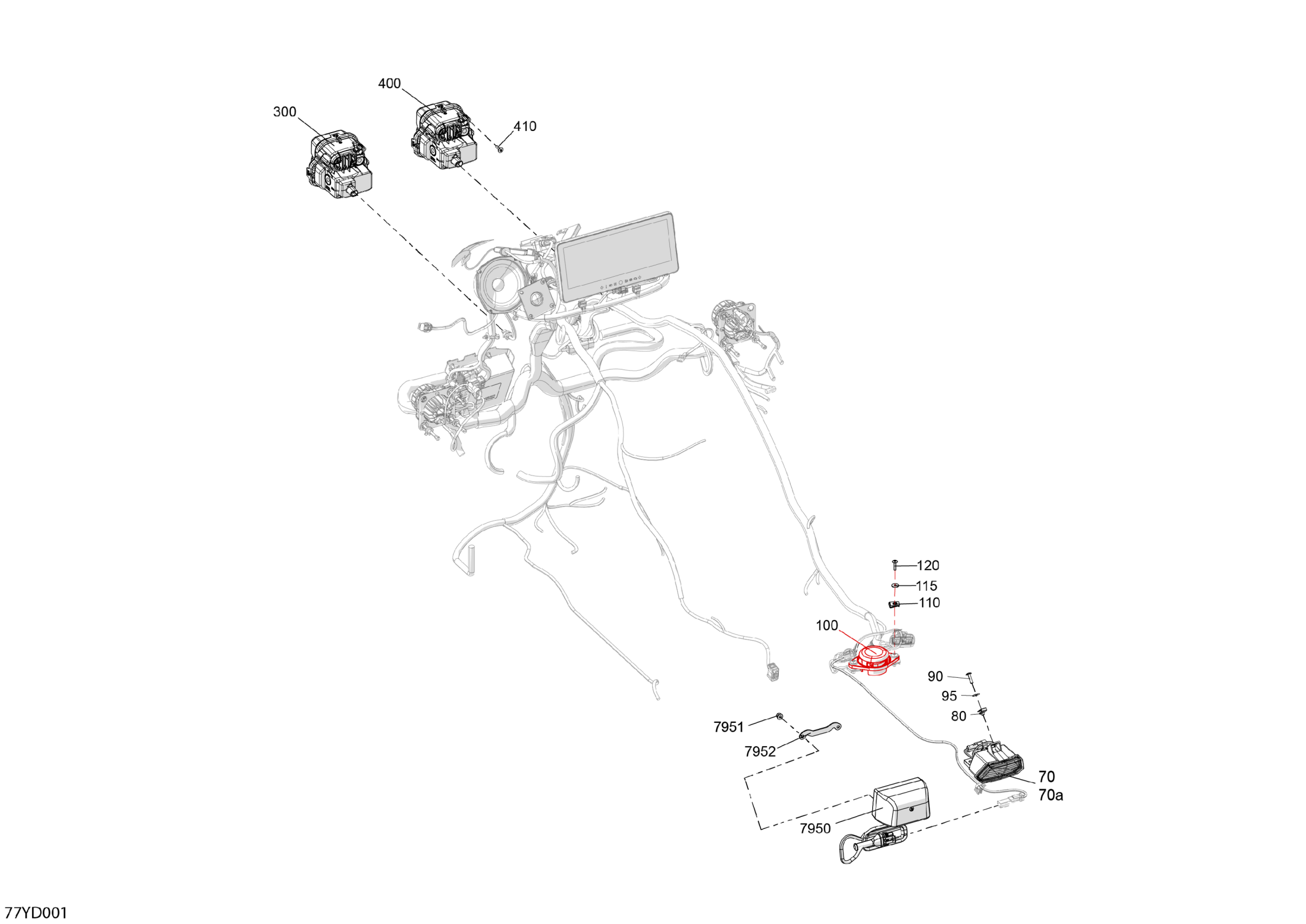

Can-Am F3 SPORT - E6RA- SPORT - Monolith Black, 2024 Electric - Vehicle Lighting Diagram

Description

Price

Back-Up Light | Includes 0k to 0k1

710007005

Unavailable

70a

Bulb 12V 10W

219800322

$8.68

Panel Nut M5 X 0.8

250000958

$3.48

Torx Truss Screw M5 X 20

250000715

$2.00

Stainless Steel Flat Washer M5

234052670

$0.83

100

Passenger Detection Switch

710008103

$70.12

110

Panel Nut M6 X 1.0

250100208

$1.07

115

Stainless Steel Flat Washer

234062670

$1.74

120

Torx Truss Screw M6 X 25

250000807

$1.74

300

Front Headlight

710008694

$349.99

400

Front Headlight

710008694

$349.99

410

Torx Screw K50 X 16

250000720

$1.39

7950

License Plate Light

710003348

$70.99

7951

Elastic Flange Nut M5

233251494

$1.74

7952

Plate

710004815

$18.49
