- F3 SPORT - E6RA- SPORT - Monolith Black, 2024
Body - Console

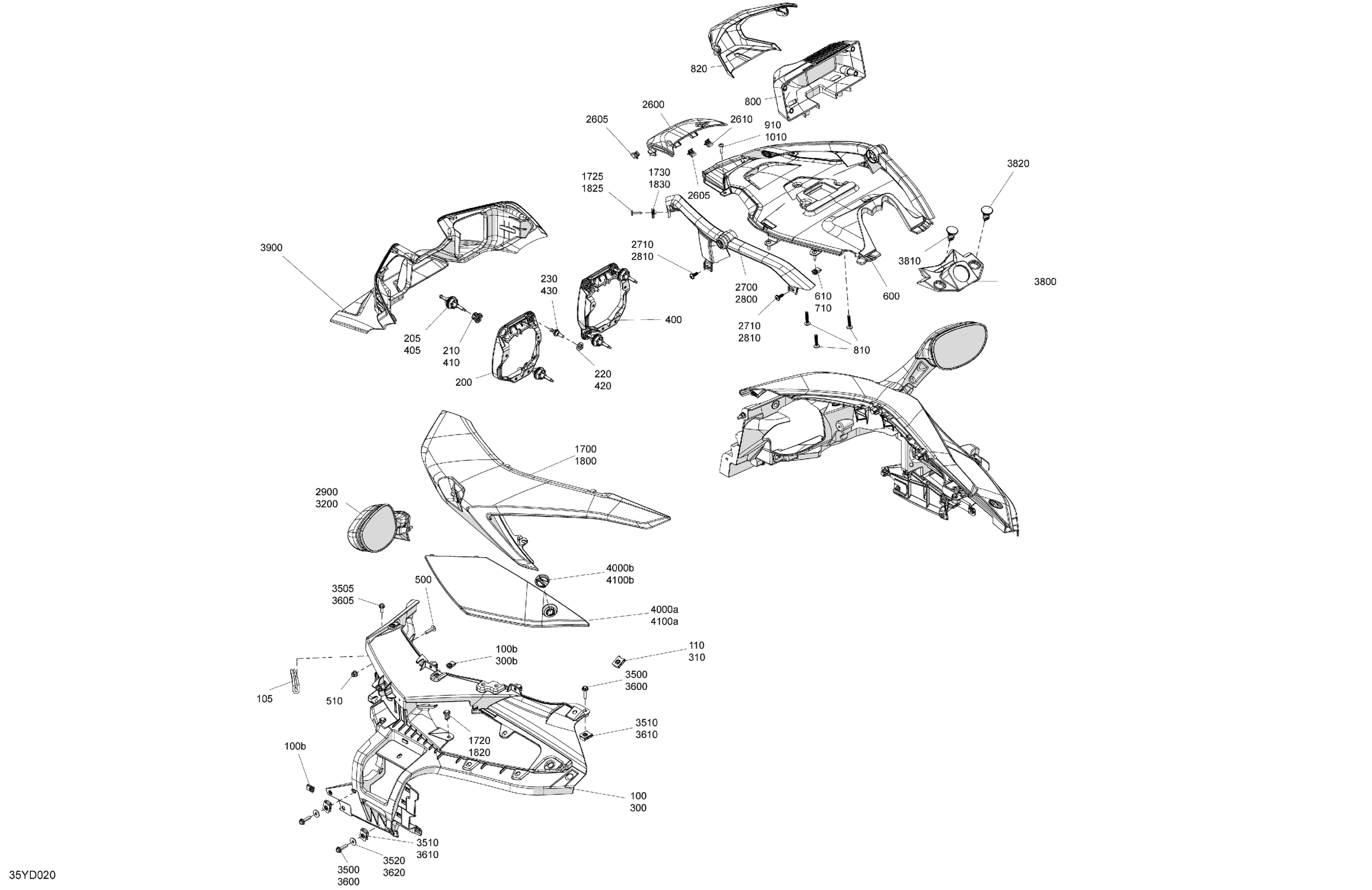

Can-Am F3 SPORT - E6RA- SPORT - Monolith Black, 2024 Body - Console Diagram
#
100b
Panel Nut M5 X 0.8
250000958
Unavailable
105
Trim 1000Mm Long
219704354
Unavailable
110
Panel Nut M6 X 1.0
250100208
Unavailable
210
Retaining Ring
708400823
Unavailable
300b
Panel Nut M5 X 0.8
250000958
Unavailable
310
Panel Nut M6 X 1.0
250100208
Unavailable
410
Retaining Ring
708400823
Unavailable
500
Torx Screw M6 X 25
250000758
Unavailable
510
Hex. Flange Elastic Nut M6
233261494
Unavailable
610
Panel Nut M5 X 0.8
250000958
Unavailable
710
Panel Nut M5 X 0.8
250000958
Unavailable
910
Torx Screw M5 X 20
250000724
Unavailable
1010
Torx Screw M5 X 20
250000724
Unavailable
1720
Tuflok Plastic Rivet
293150230
Unavailable
1725
Torx Screw M5 X 20
250000724
Unavailable
1730
Panel Nut M5 X 0.8
250000958
Unavailable
1820
Tuflok Plastic Rivet
293150230
Unavailable
1825
Torx Screw M5 X 20
250000724
Unavailable
1830
Panel Nut M5 X 0.8
250000958
Unavailable
2605
Edge Clip
517302785
Unavailable
2610
Edge Clip
517302785
Unavailable
2710
Oval Head Torx Screw K60 X 16
250000546
Unavailable
2810
Oval Head Torx Screw K60 X 16
250000546
Unavailable
3500
Hex. Flange Screw M6 X 25
250000793
Unavailable
3505
Hex. Flange Screw M6 X 16
210261650
Unavailable
3510
Panel Nut M6 X 1.0
250100208
Unavailable
3520
Flat washer M6
250200164
Unavailable
3600
Hex. Flange Screw M6 X 25
250000793
Unavailable
3605
Hex. Flange Screw M6 X 16
210261650
Unavailable
3610
Panel Nut M6 X 1.0
250100208
Unavailable
3620
Flat washer M6
250200164
Unavailable
4000b
Cover Latch Quarter Turn
708400065
Unavailable
4100b
Cover Latch Quarter Turn
708400065
Unavailable
