Description

Price

2c

10" LCD Screen

710009436

$2,050.00

5a

Wiring Harness Support

709402446

$15.00

5b

Torx Screw M5 X 14

250000742

Unavailable

5c1

LH Front Multifunction Switch Ass'y

710008079

$510.00

5c2

LH Handlebar Grip

709402804

$43.00

5d1

RH Front Multifunction Switch Ass'y

710008082

$285.00

5d2

RH Handlebar Grip

709402766

$43.00

5f

Socket Screw, M4 X 16 Scotch Grip

250000494

$2.00

5g

Braided Sleeve

710004231

$39.00

5h

Braided Sleeve

710004231

$39.00

5j

Wire Guide

709401804

$3.00

5k

Torx Cutting Screw, M4 X 10

250000453

$4.00

5m

Torx Cutting Screw, M4 X 10

250000453

$4.00

10

Carbon Black, Handlebar

709402697

$122.00

30

Thin Socket Screw, Scotch Grip, M10

250000997

$7.00

40

Stainless Flat Washer, 10 mm

250200105

Unavailable

50

LH Upper Switch Trim

709402943

$10.00

51

RH Upper Switch Trim

709402957

$10.00

55

Torx-Truss Pt K40 X 16

250000759

Unavailable

60

LH Lower Switch Trim

709402944

$10.00

61

RH Lower Switch Trim

709402958

$9.00

65

Torx-Truss Pt K40 X 16

250000759

Unavailable

110

Black, Central Handle Clamp

709401904

$24.00

115

Black, Central Handle Support

709401906

$83.00

260

Handlebar End Piece

709403026

$28.00

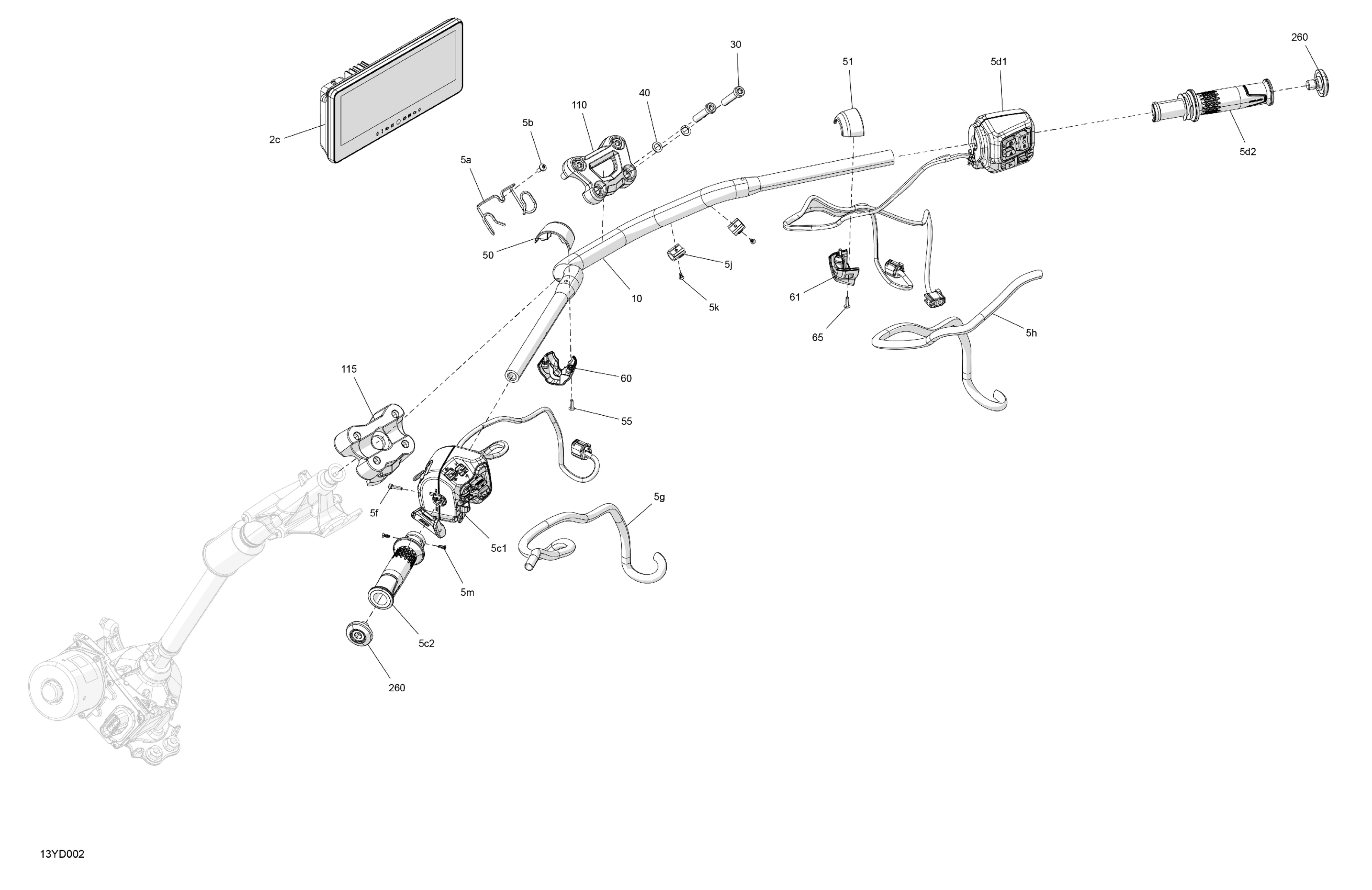

Can-Am F3 SPORT - E6RA- SPORT - Monolith Black, 2024 Mechanic - Handlebar Diagram

Torx Screw M5 X 14

Stainless Flat Washer, 10 mm

Torx-Truss Pt K40 X 16

Torx-Truss Pt K40 X 16
