Description

Price

100

LH Console Support Ass'y | Includes 100 to 100b

708400968

$100.00

100b

Panel Nut M5 X 0.8

250000958

$3.48

105

Trim 1000Mm Long

219704354

$14.74

110

Panel Nut M6 X 1.0

250100208

$1.07

200

LH Front Headlight Support

708400748

$6.00

205

Adjuster

708400954

$13.00

210

Retaining Ring

708400955

$8.00

220

Large Shoulder Nut M6

705014119

$6.00

230

Ball Stud

705018616

$19.00

300

RH Console Support Ass'y | Includes 300 to 300b

708400969

$110.00

300b

Panel Nut M5 X 0.8

250000958

$3.48

310

Panel Nut M6 X 1.0

250100208

$1.07

400

RH Front Headlight Support

708400749

$6.00

405

Adjuster

708400954

$13.00

410

Retaining Ring

708400955

$8.00

420

Large Shoulder Nut M6

705014119

$6.00

430

Ball Stud

705018616

$19.00

450

GPS Support

708400864

$45.00

455

Torx Screw K50 X 16

250000720

$1.39

460

Torx Screw K50 X 16

250000720

$1.39

500

Torx Screw M6 X 25

250000758

$1.74

510

Hex. Flange Elastic Nut M6

233261494

$1.26

550a

Upper Console

708400973

$115.00

550b

LH Enclosure Cover

708400734

$20.00

550c

RH Enclosure Cover

708400735

$20.00

550f

Nut Housing M6 | Includes 555 to 555b

269502544

$4.42

550f1

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$5.43

550f2

Elastic Stop Nut M6, Brass

232561200

$3.51

560

Torx Truss Screw M6 X 25

250000807

$1.74

565

Torx Truss Screw M6 X 25

250000807

$1.74

570

Torx Screw Nylon

250000732

$1.74

575

Torx Screw Nylon

250000732

$1.74

580

Stainless Steel Flat Washer M5

234052670

$0.83

585

Stainless Steel Flat Washer M5

234052670

$0.83

610

Panel Nut M5 X 0.8

250000958

$3.48

710

Panel Nut M5 X 0.8

250000958

$3.48

910

Torx Screw M5 X 20

250000724

$1.39

1010

Torx Screw M5 X 20

250000724

$1.39

1400

LH Mirror Plate Support Ass'y | Included 1400 to 1400b

705008211

$28.00

1400b

Spring

705006661

$3.00

1410

Torx Screw Truss Head K50X20 T20

250000760

$1.74

1500

RH Mirror Plate Support Ass'y | Included 1500 to 1500b

705008210

$28.00

1500b

Spring

705006661

$3.00

1510

Torx Screw Truss Head K50X20 T20

250000760

$1.74

1600

Column Fairing

708400108

$18.00

1610

Torx Screw M5 X 25

250000762

$1.74

1615

Torx Screw M5 X 25

250000762

$1.74

1620

Stainless Steel Flat Washer M5

234052670

$0.83

1625

Stainless Steel Flat Washer M5

234052670

$0.83

1700

Monolith Black, LH Console Fairing

708400566

$220.00

1700a

Bare, LH Console Fairing

708400067

$99.00

1720

Tuflok Plastic Rivet

293150230

$1.21

1800

Monolith Black, RH Console Fairing

708400567

$220.00

1800a

Bare, RH Console Fairing

708400069

$99.00

1820

Tuflok Plastic Rivet

293150230

$1.21

2000

Dashboard

708400975

$64.00

2010

LH Speaker Grille

708400715

$11.00

2020

RH Speaker Grille

708400716

$11.00

2030

Edge Clip

517302785

$0.70

2120

Thermal Insulation

708400736

$16.00

2200

Box Cover

708400996

$165.00

2210

Gasket

293830244

$6.00

2240

Ball Stud

705018612

$19.00

2250

M6 Nut Housing Ass'y | Includes 7r to 7r2

269500725

$3.73

2250a

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$5.43

2250b

Hex. Elastic Stop Nut M6

232561600

$0.92

2300

Console Fairing

708400962

$37.00

2310

Panel Nut M6 X 1.0

250100208

$1.07

2315

Panel Nut M6 X 1.0

250100208

$1.07

2330

Torx Truss Screw M6 X 20

250000705

$1.74

2335

Torx Truss Screw M6 X 20

250000705

$1.74

2340

Spring

705006661

$3.00

2350

Receptacle

708400215

$8.00

2360

Torx Screw K50 X 16

250000720

$1.39

2600

Monolith Black, Front Fairing

708400725

$230.00

2900a

LH Mirror Support

708400224

$34.00

2900b

Flat Head Stud M5

705006733

$21.00

2900c

Stud Ball M5

708400538

$18.00

2900d

Hex. Flange Elastic Nut M5

233251414

$1.66

2900f

Edge Clip

517302785

$0.70

3000

LH Rear View Mirror Housing Ass'y | Included 3000 to 3000g

708400592

$145.00

3000f

Spring

705010625

$11.00

3000g

Hex. Elastic Stop Nut M6

232561600

$0.92

3010

Torx Truss PT K40 x 12

250001131

$1.74

3100

Monolith Black, LH Front Rear View Mirror Trim

708400587

$59.00

3100a

Bare, LH Front Rear View Mirror Trim

708400461

$27.00

3110

Clip

517306478

$1.37

3200a

RH Mirror Support

708400225

$34.00

3200b

Flat Head Stud M5

705006733

$21.00

3200c

Stud Ball M5

708400538

$18.00

3200d

Hex. Flange Elastic Nut M5

233251414

$1.66

3200f

Edge Clip

517302785

$0.70

3300

RH Rear View Mirror Housing Ass'y | Included 3300 to 3300g

708400593

$145.00

3300f

Spring

705010625

$11.00

3300g

Hex. Elastic Stop Nut M6

232561600

$0.92

3310

Torx Truss PT K40 x 12

250001131

$1.74

3400

Monolith Black, RH Front Rear View Mirror Trim

708400588

$59.00

3400a

Bare, RH Rear View Mirror Trim

708400463

$27.00

3410

Clip

517306478

$1.37

3500

Torx Truss Screw M6 X 25

250000807

$1.74

3505

Hex. Flange Screw M6 X 16

210261650

$1.22

3510

Panel Nut M6 X 1.0

250100208

$1.07

3520

Flat washer M6

250200164

$0.83

3600

Torx Truss Screw M6 X 25

250000807

$1.74

3605

Hex. Flange Screw M6 X 16

210261650

$1.22

3610

Panel Nut M6 X 1.0

250100208

$1.07

3620

Flat washer M6

250200164

$0.83

3800

Switch Bezel

708400205

$15.00

3820

Switch Plug

708400866

$4.00

3900

Front Access Cover

705018181

$38.00

4000a

Carbon Monolith, LH Front Access Cover

708400575

$235.00

4000a1

Bare, LH Acces Panel

708400261

$110.00

4000b

Cover Latch Quarter Turn

708400065

$2.99

4100a

Carbon Monolith, RH Front Access Cover

708400576

$235.00

4100a1

Bare, RH Acces Panel

708400262

$110.00

4100b

Cover Latch Quarter Turn

708400065

$2.99

4200

Carbon Black, LH Windshield Base

708400127

$130.00

4210

Torx Screw M6 X 25, Scotch Grip

250000328

$1.46

4230

Stainless Flat Washer M6

234061600

$0.25

4300

Carbon Black, RH Windshield Base

708400128

$130.00

4310

Torx Screw M6 X 25, Scotch Grip

250000328

$1.46

4330

Stainless Flat Washer M6

234061600

$0.25

4400

Windshield

708400775

$400.00

6510

Stainless Steel Flat Washer M5

234052670

$0.83

6511

Rubber Washer

293830190

$2.00

6512

Torx Screw M5 X 20

250000528

$1.74

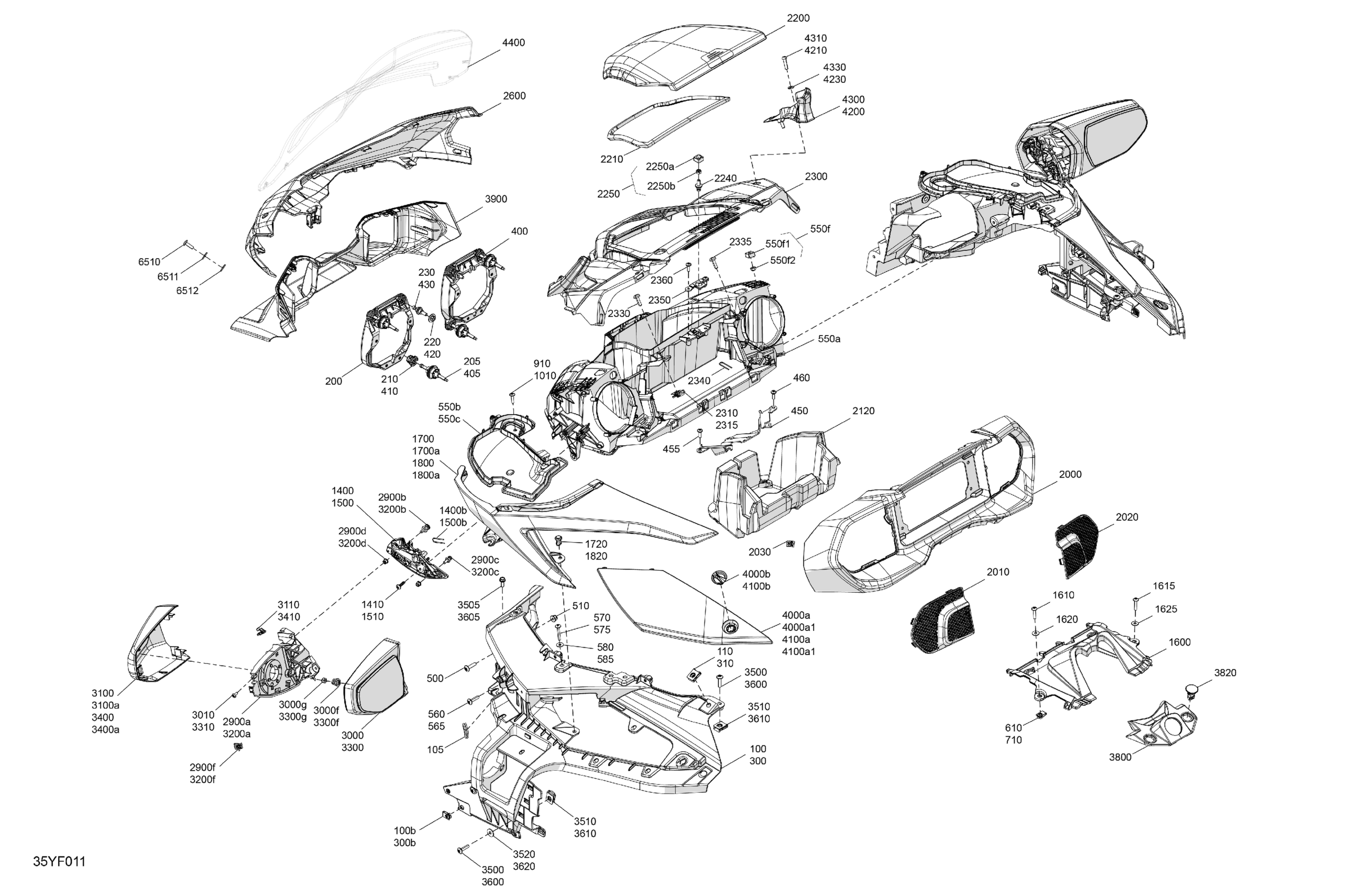

Can-Am F3 - LIMITED - Dark Edition - H8TA - Mineral Blue, 2026 Body - Console Diagram
