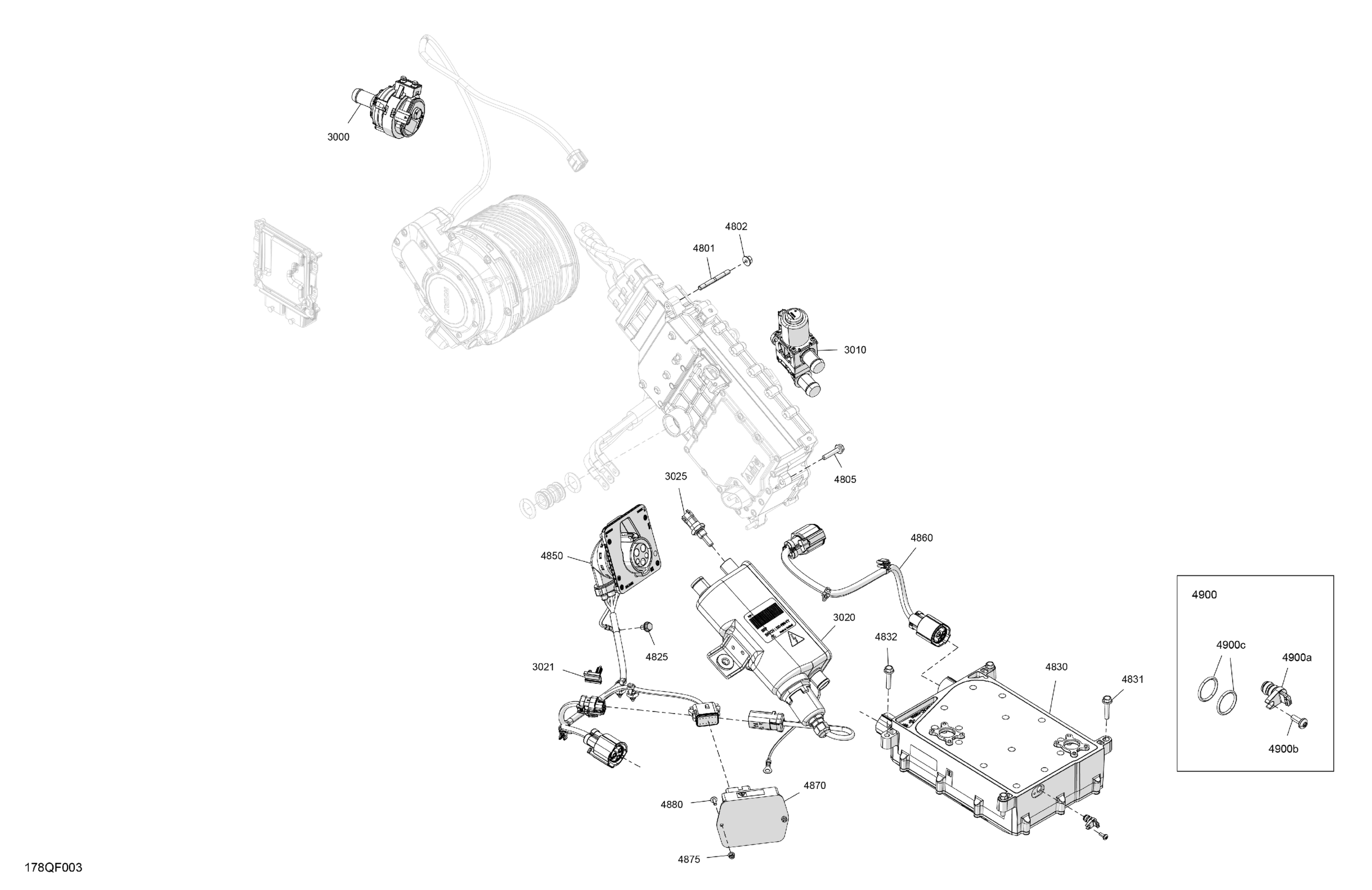

Ski-Doo EXPEDITION - SPORT - ESTC - Bright White - 15X137X1.6C Track, 2026 Electric - High Voltage Diagram

Description

Price

3000

Cooling Pump

709201048

$153.82

3010

Cooling Solenoid Valve

709201162

$207.66

3020

Block Heater

712000168

$259.97

3021

Fastener

293730118

$7.09

3025

Temperature Sensor

278002895

$31.82

4801

Threaded Rod

509001410

$10.63

4802

Hex. Elastic Flange Nut M6

233161464

$0.83

4805

Hex. Flange Screw M6 X 30, Scotch Grip

207563044

$3.61

4825

Hex. Flange Screw M6 X 12, Scotch Grip

207561234

$2.06

4830

6,6 Kilowatt Battery Charger

712000189

$2,629.99

4831

Hex. Flange Screw M6 X 30, Scotch Grip

207563044

$3.61

4832

Hex. Flange Screw M6 X 30, Scotch Grip

207563044

$3.61

4850

High Voltage Charging Port Cable

710009107

$406.89

4860

High Voltage Charger Cable

710007699

$182.28

4870

Heater Module

712000162

$134.58

4875

Elastic Stop Nut M4

232541484

$0.61

4880

Torx Head Screw M4 X 12

250000915

$2.88

4900

Fastener Kit for Battery Charger Ski-Doo | Includes 4900 to 4900f

861805582

$46.12

4900a

Plug Ass'y

293710201

$28.43

4900b

Torx Head Screw M4 X 10 | Includes 810 to 810b

250001298

$17.66

4900c

O-Ring

293300299

Unavailable

4900d

Dielectric Grease | Not Shown

293550051

$4.72

4900f

Ground Cable | Not Shown

515179633

Unavailable
