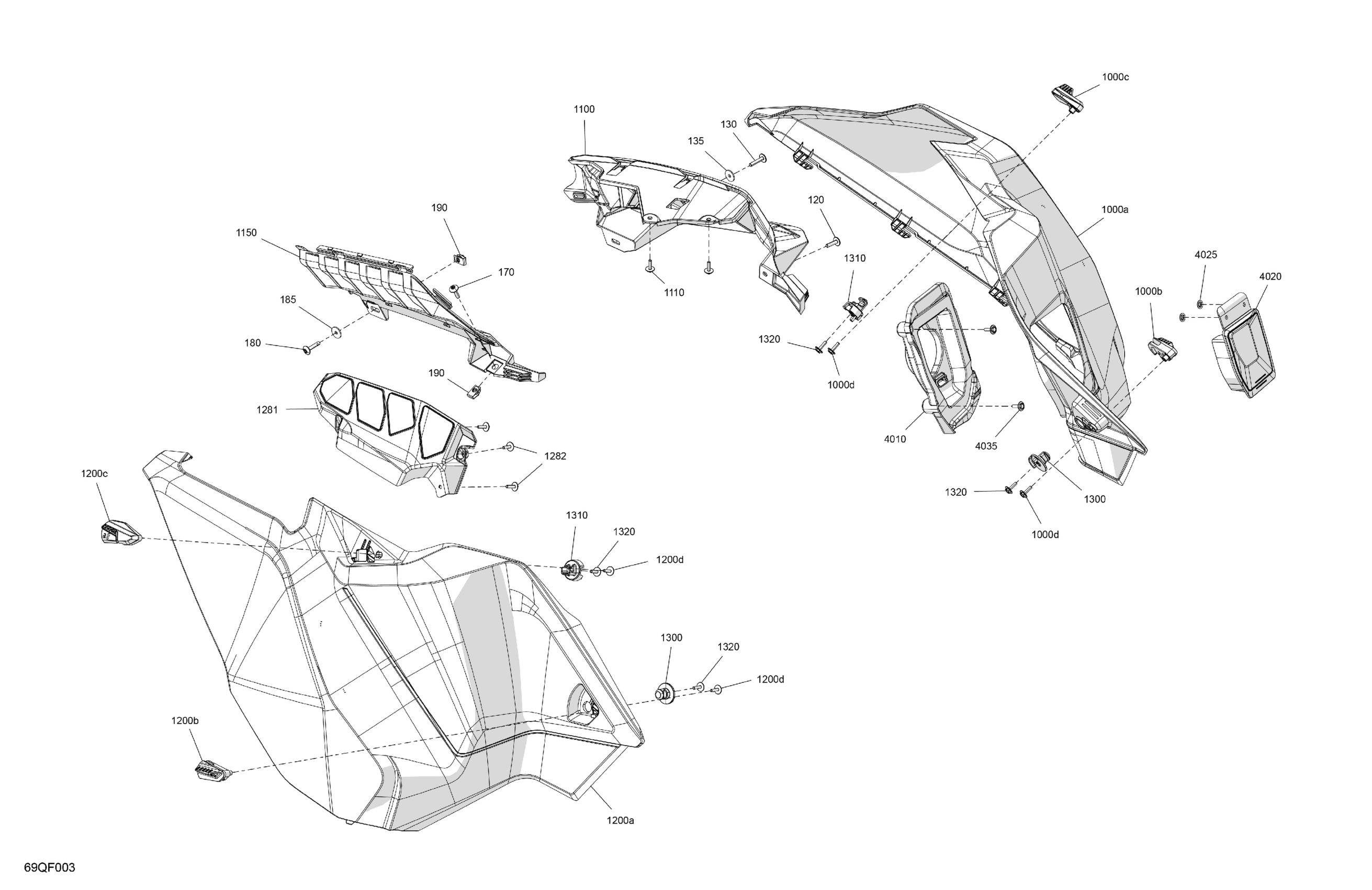

Ski-Doo EXPEDITION - SPORT - ESTC - Bright White - 15X137X1.6C Track, 2026 Body - Lateral Panels Diagram

Description

Price

120

Torx Screw M5 X 20

250000528

$1.74

130

Torx Screw M5 X 26

250000587

$3.61

135

Washer

517307442

$1.43

170

Torx Screw M5 X 20

250000528

$1.74

180

Torx Screw M5 X 26

250000587

$3.61

185

Washer

517307442

$1.43

190

Panel Nut M5 X 0.8

250000958

$3.48

1000a

Bright White, RH Body Panel

517308903

$158.18

1000b

LH Rear Latch

517305774

$13.79

1000c

LH Front Latch

517305980

$13.79

1000d

Screw M4 X 16

250000725

$2.87

1100

RH Hood Grille

517308686

$25.34

1110

Screw M4 X 16

250000725

$2.87

1150

LH Hood Trim

517308650

$28.33

1200a

Bright White, LH Body Panel

517308934

$164.90

1200b

LH Rear Latch

517305774

$13.79

1200c

LH Front Latch

517305980

$13.79

1200d

Screw M4 X 16

250000725

$2.87

1281

LH Hood Grille

517308687

$14.30

1282

Screw M4 X 16

250000725

$2.87

1300

Rear Stud

517305985

$14.55

1310

Front Stud

517305988

$14.90

1320

Screw M4 X 16

250000725

$2.87

4010

Trim Support

517308746

$15.64

4020

Access Cover

517308699

$33.55

4025

Push Nut

732610072

$1.72

4035

Screw M4 X 16

250000725

$2.87
