Description

Price

1050

Stopper Strap

503195313

$27.66

1060

Washer | Not Shown

503193995

$4.38

1070

Hex. Flange Screw M6 X 1.0 X 30

207663056

$3.61

1080

Hex. Flange Elastic Nut M6

233261466

$1.66

2000

Front Suspension Arm Ass'y | Includes 2000 to 2000k

503196029

$443.05

2000a6

Hexagonal Nut M6

232061404

$0.32

2000b

Extended Bushing

503191556

$5.71

2000c

Grease Fitting

408200700

$2.80

2000d

Rocker

503195833

$77.66

2000f

Swivel Bushing

503191555

$5.71

2000g

Bushing

503193037

$15.35

2000h

Bushing | Includes 240d to 240d1

503189282

$4.18

2000j

Hex. Screw M10 X 1.5 X 50

207005044

$3.11

2000k

Elastic Locking Nut M10 X 1.5

233601416

$1.68

2010

Bushing

503191262

$13.60

2020

Upper Shaft

503191215

$36.12

2030

Washer

503191926

$1.57

2050

Hex. Threadlock Screw M10 X 55

250001365

$7.31

2070

Lower Shaft

503191279

$27.66

2080

Bushing

503189324

$11.17

2100

Washer

503192496

$0.75

2110

Hex. Screw S.Grip M10 X 55

250000605

$6.18

3000

Rear Arm Ass'y | Includes 3000 to 3000r

503192252

$96.89

3000a

Not Available As Spare Parts

XXX

Unavailable

3000a7

Hexagonal Nut M6

232061404

$0.32

3000b

Bushing

572080700

$15.26

3000c

Swivel Bushing

503191555

$5.71

3000d

LH Cam Adjuster

503191565

$13.95

3000f

RH Cam Adjuster

503191566

$13.95

3000g

E-Circlip

293370013

$0.62

3000h

Upper Axle, Pivot Arm

503144300

$11.98

3000j

Pivot Arm | Includes 3000j to 3000j3

503191209

$118.43

3000j3

Hexagonal Nut M6

232061404

$0.32

3000k

Washer

503192494

$3.11

3000m

Bolt M8, Short

732601197

$15.06

3000n

Hex. Elastic Stop Nut M8

232581414

$0.47

3000p

Grease Fitting

408200700

$2.80

3000q

Extended Bushing

503191556

$5.71

3000r

Washer

503191651

$7.49

3010

Black, LH Spring Square

503192271

$78.43

3020

Black, RH Spring Square

503192270

$78.43

3070

Black, Wheel Ass'y 155 mm | Includes 3070 to 3070b

503191738

$46.12

3070a

Ball Bearing

503193548

$16.89

3070b

Retaining Ring

415129780

$13.88

3120

Upper Shaft

503191215

$36.12

3130

Bushing

503191262

$13.60

3140

Retaining Ring

503194366

$37.66

3150

Socket Set Screw M6 X 8

206260844

$1.25

3170

Flat Washer

250200143

$2.63

3180

Hex. Threadlock Screw M10 X 55

250001365

$7.31

3190

Pivot Arm Axle

503189156

$20.74

3200

Washer

503192494

$3.11

3210

Bolt M8 X 248mm

503192440

$29.97

3220

Elastic Flange Nut M8

233281466

$0.83

4000

Link Rod

503196617

$41.51

4030

Axle Bar (Long)

503190643

$15.35

4060

Washer

503192494

$3.11

4070

Screw M8 X 90

503193372

$4.28

4080

Elastic Flange Nut M8

233281466

$0.83

4090

Axle Bar (Long)

503190643

$15.35

4100

Washer

503192494

$3.11

4120

Screw M8 X 90

503193372

$4.28

4130

Elastic Flange Nut M8

233281466

$0.83

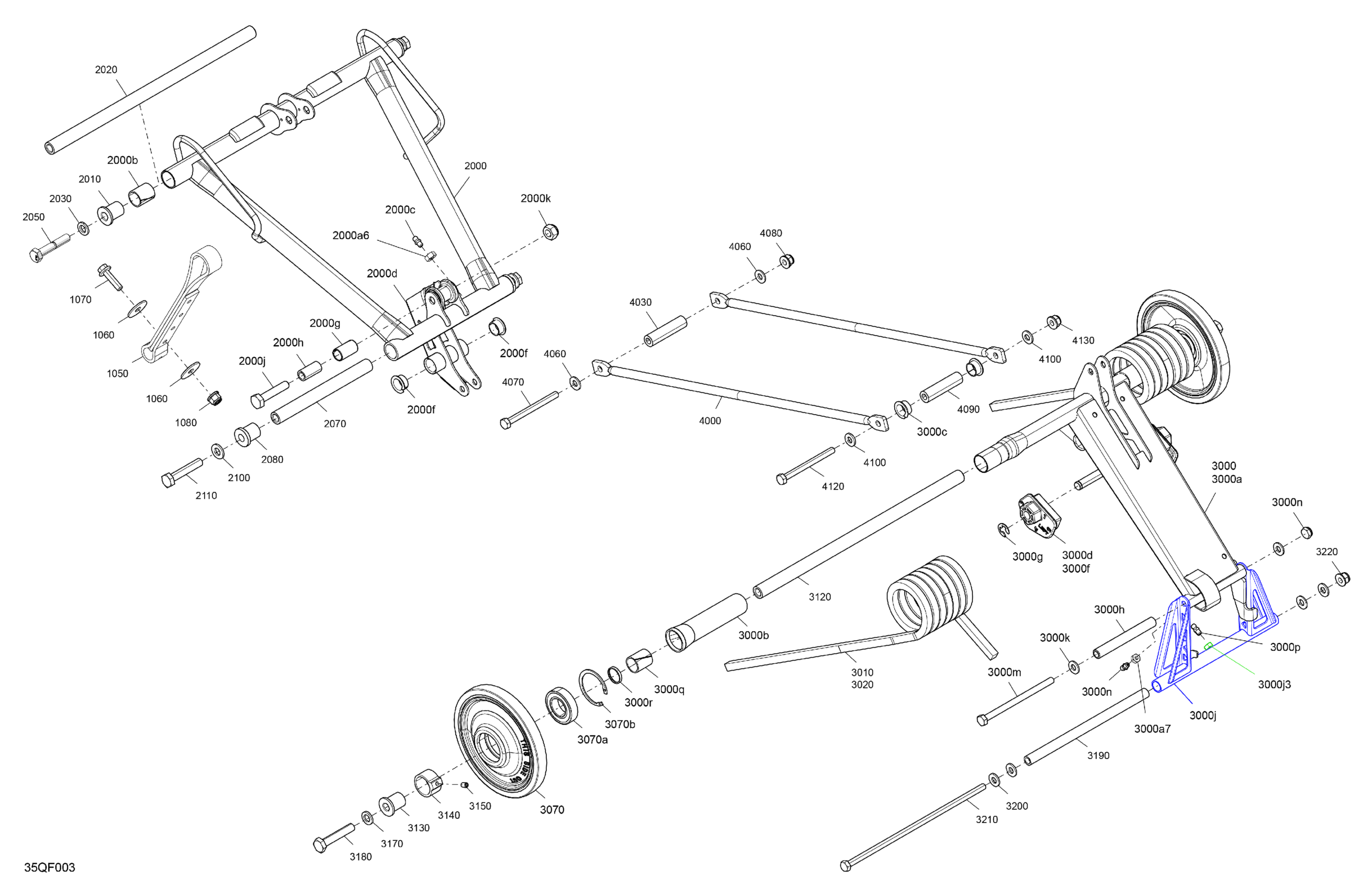

Ski-Doo EXPEDITION - SPORT - ESTC - Bright White - 15X137X1.6C Track, 2026 Suspension - Rear - Upper Section Diagram

Not Available As Spare Parts
