Description

Price

10

Chain Case Ass'y | Includes 10 to 10f

504154918

$179.20

10b

Dowel Pin

250400068

$2.06

10c

Cap

250500015

$18.43

10d

Magnetic Plug

504153704

Unavailable

10f

Hex. Countersunk Drain Plug

250500013

$6.78

20

Grommet

414036300

$2.22

50

Plate Ass'y

504154615

$72.28

140

Hex. Flange Screw M6 X 25

207562544

$1.39

150

Adapter Ass'y | Includes 150 to 150d

504154893

$61.51

150b

Ball Bearing

293350142

$34.99

150c

Magnetic Cap | Includes 150c to 150c2

504154019

$26.12

150c2

Cap

504154043

$2.09

150d

O-Ring Seal

293300291

$0.98

155

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$1.74

160

Sealing Washer

250200114

$3.61

185

Rivet Avibulb 3/16

293150203

$0.29

200

19 Tooth Sprocket

504154692

$102.28

210

Junction Shaft

504154501

$241.51

220

Sprocket 53 Teeth

504154694

$46.89

230

Flange Elastic Nut M6

233261434

$3.61

1120

Circlip

504152582

$8.71

1140

Circlip

504152572

$6.26

1400

Silent Chain 68 Links

504154498

$64.58

1500

Silent Chain 84 Links

504154607

$113.05

1685

Hex. Flange Screw M8 X 16, Scotch Grip

207581646

$1.74

1690

Conical Spring Washer M8

250200146

$0.83

1695

Flat Washer M8

250200158

$1.74

1700

Chain Case Cover | Includes 1700 to 1700b

504154937

$179.20

1700b

Hex. Countersunk Drain Plug

250500013

$6.78

1710

O-Ring Seal

293300295

$11.42

1720

Hex. Flange Screw M6X20

250001153

$1.76

1730

Cap

504153329

$19.20

1740a

Male Connector

414580700

$3.38

1740b

Polyurethane Hose 10000Mm Long

219704410

$46.12

1800

Hex. Flange Screw M6 X 25

207562544

$1.39

1810

Torx T-30 Pan HD Taptite M6X20

250001012

$0.46

1850

Grommet

504154936

$16.89

2010

Drive Axle Ass'y | Includes 3000 to 3000g

504154942

$396.89

2010b

LH Sprocket Wheel 8 Teeth

504154910

$72.28

2010c

RH Sprocket Wheel 8 Teeth

504154911

$72.28

2010d

Retaining Ring

504154417

$18.43

2010f

Ball Bearing

293350059

$30.74

2010g

O-Ring Seal

293300291

$0.98

2020

Oil Seal

293200159

$13.12

2030

O-Ring

293300201

$0.98

2040

Cap

504154043

$2.09

2050

Circlip

504152572

$6.26

3200

Track 15 X 137 X 1,6 | Includes 3200 to 3200b

504154394

$989.99

3200a

Clip

415130661

$3.12

3200b

Cleat

504152651

$8.22

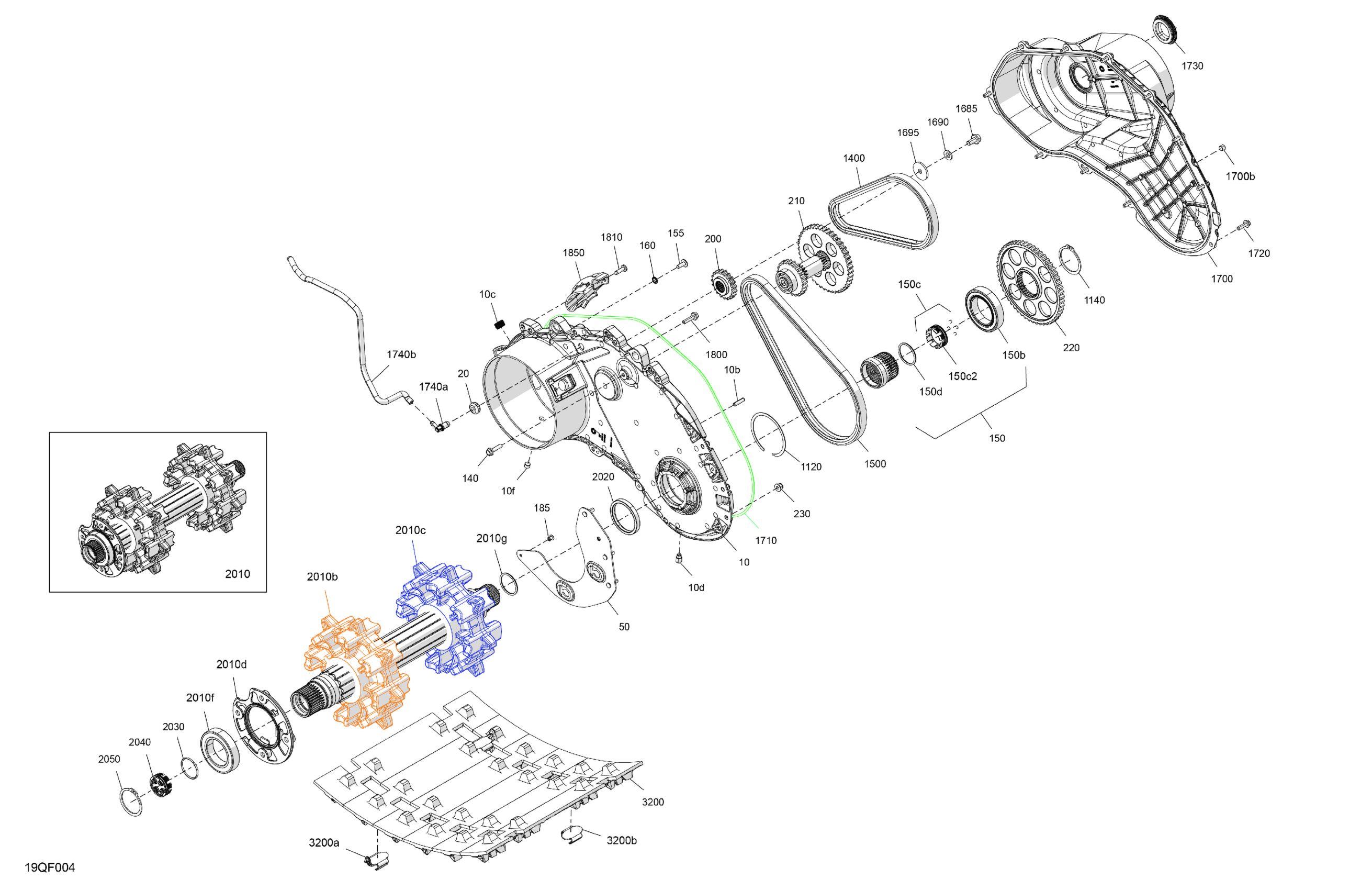

Ski-Doo EXPEDITION - SPORT - ESTC - Bright White - 15X137X1.6C Track, 2026 Drive - System Diagram
