Description

Price

100

Coolant Manifold Ass'y | Includes 100 to 100b

509001406

$9.46

200

Hose

509001352

$17.66

205

Oetiker Gear Clamp

293650165

$4.32

210

Crimp Clamp

293650099

$4.60

220

T Fitting

509001334

$15.35

230

Hose

509001353

$17.66

240

Crimp Clamp

293650099

$4.60

310

Pump Support

509001419

$49.97

320

Hex. Flange Screw M6 X 16

207661644

$0.61

330

External Retaining Ring

509001420

$3.74

400

Hose

509001358

$17.66

405

Oetiker Gear Clamp

293650165

$4.32

410

Crimp Clamp

293650099

$4.60

420

Coolant Manifold Ass'y | Includes 100 to 100b

509001406

$9.46

440

Coolant Manifold Ass'y | Includes 440 to 440b

509001435

$9.46

440b

Seal

293300248

$4.82

460

Lock

509001428

$9.46

470

Hose

509001434

$15.35

480

Oetiker Gear Clamp

293650165

$4.32

500

Hose

509001362

$15.35

510

Oetiker Gear Clamp

293650165

$4.32

520

Norma Spring Clamp

293650166

$4.28

610

Valve Support

509001363

$13.14

630

Torx Screw K35 X 12

250001269

$3.85

710

Retainer

275500526

$3.73

720

Norma Spring Clamp

293650166

$4.28

740a

Coolant Manifold

509001390

$9.46

740b

O-Ring Seal

293300300

$4.82

740c

Hose

509001364

$24.58

740d

Oetiker Gear Clamp

293650165

$4.32

770

Screw Torx M5 X 12

250001241

$6.48

800a

Coolant Manifold

509001390

$9.46

800b

O-Ring Seal

293300300

$4.82

800c

Hose

509001374

$17.66

800d

Fitting

509001400

$12.98

800f

Temperature Sensor

278002895

$31.82

800g

Hose

509001375

$17.66

800h

Oetiker Gear Clamp

293650165

$4.32

800j

Seal

293300281

$4.82

830

Screw Torx M5 X 12

250001241

$6.48

920

Oetiker Gear Clamp

293650165

$4.32

930

Hose

509001376

$17.66

940

Oetiker Gear Clamp

293650165

$4.32

1010

Support

509001463

$67.99

1020

Hex Flange Screw M10 X 20 S.Grip

250001046

$3.61

1030

Hex. Flange Screw M6 X 16

250001062

$1.43

1050

Panel Nut M6 X 1.0

250100208

$1.07

1060

Bushing

293900151

$5.33

1070

Flat Washer

250200082

$0.35

1080

Hex. Flange Screw M6 X 25

207562544

$1.39

1130a

Coolant Manifold

509001381

$9.46

1130b

Seal

293300248

$4.82

1130c

Hose

509001378

$17.66

1130d

Oetiker Gear Clamp

293650165

$4.32

1140

Oetiker Gear Clamp

293650165

$4.32

1160

Screw Torx M5 X 12

250001241

$6.48

1500

Coolant Tank Support

509001423

$19.20

1510

Elastic Flange Nut M6 X 1.0

233261416

$1.74

1520

Hex. Flange Screw M6 X 16

250001062

$1.43

2000

Cooling Tank

509001033

$86.12

2005

Hex. Flange PT Screw K50 X 20

241152040

$1.74

2010

Hose

509001365

$20.74

2020

Crimp Clamp

293650099

$4.60

2100

Hose 6 Mm 15000Mm Long

219704360

$104.62

2250

Pressure Cap

509000187

$27.66

2300a

Vent Hose

509001366

$23.82

2310

Crimp Clamp, 15.3-706R

293650047

$2.64

2400

Vent Hose

509001367

$23.82

2410

Crimp Clamp, 15.3-706R

293650047

$2.64

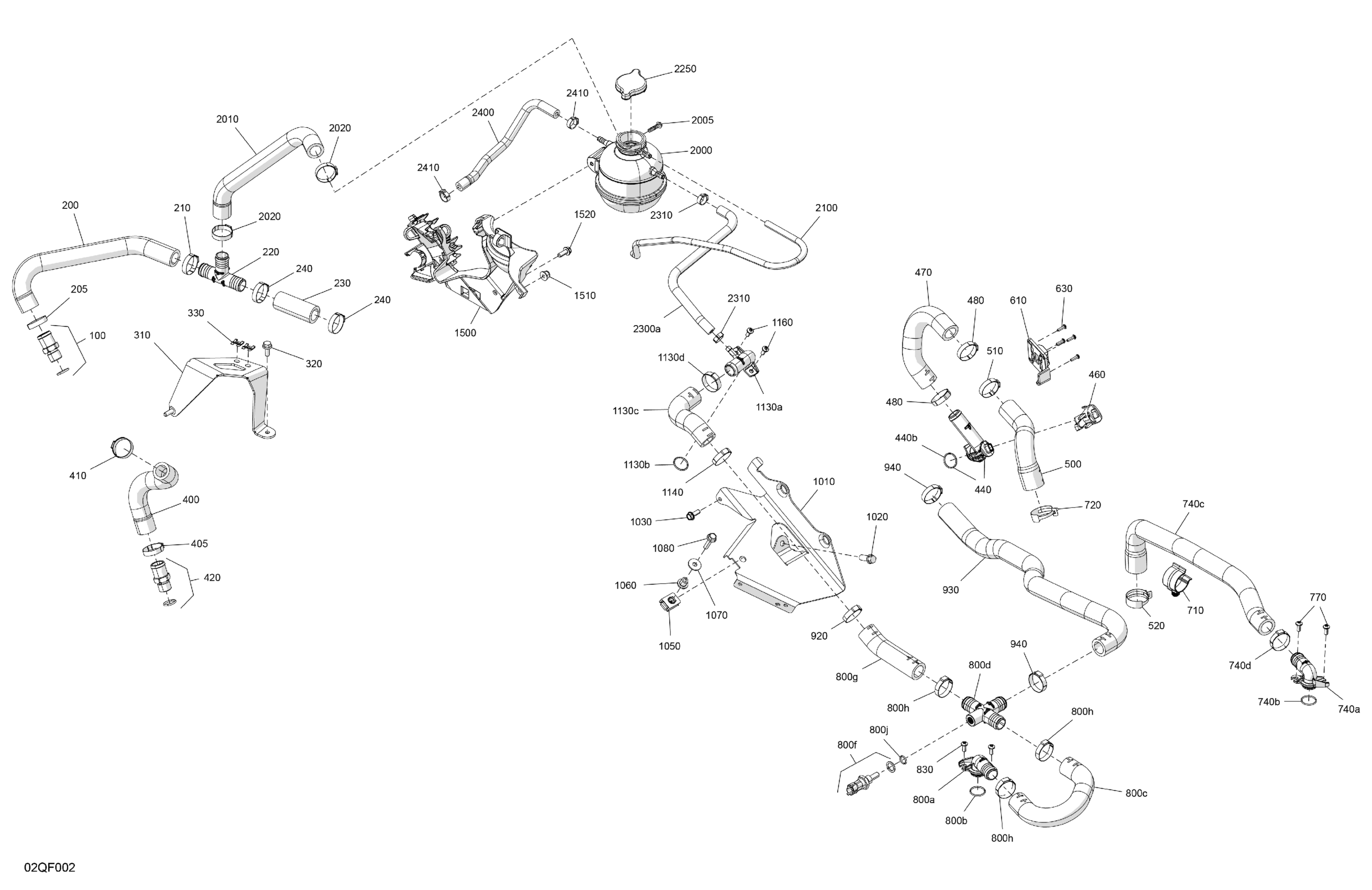

Ski-Doo EXPEDITION - SPORT - ESTC - Bright White - 15X137X1.6C Track, 2026 Engine - Cooling Diagram
