Description

Price

10

Front Bottom Pan

502008638

$171.51

20

Skid Plate

502008466

$6.42

30

Black, Pop Rivet 3/16 X ,550

293150292

$0.86

40

RH Upper Bottom Pan Foam

502007788

$16.12

50

LH Upper Bottom Pan Foam

502007789

$16.12

60

RH Front Central Bottom Pan Foam

502008308

$7.54

70

LH Front Central Bottom Pan Foam

502008309

$11.91

80

Bonded Foam

502008355

$17.66

90

Bonded Foam

502008356

$6.77

400

RH Bottom Pan

502008108

$88.43

401

Heat Shield

502008536

$4.15

402

Heat Shield

502008537

$4.15

410

Black, Pop Rivet 3/16 X ,550

293150292

$0.86

430

Torx Truss M5 X 20

250000586

$3.61

440

Panel Nut M5 X 0.8

250000958

$3.48

450

Foam

502008378

$10.38

460

RH Rear Bottom Pan Foam

502008170

$15.17

470

Heat Shield

502007895

$16.89

475

Push Nut

508000853

$1.92

500

Plate

502007868

$2.02

510

Black, Pop Rivet 3/16 X ,425

293150291

$0.54

600a

LH Bottom Pan

502008070

$88.43

600b

Bottom Pan Door

502007676

$36.89

600c

Hairpin Cotter

269800431

$1.00

600d

Stopper

502008326

$33.82

600f

Black, Pop Rivet 3/16 X ,425

293150291

$0.54

620

Gasket, Neoprene 2000Mm Long

219704476

$12.64

630

Screw Torx M5 X 20

250001232

$1.14

631

Torx Truss M5 X 20

250000586

$3.61

635

Washer M5

250200025

$0.61

640

Panel Nut M5 X 0.8

250000958

$3.48

650

LH Bottom Pan Upper Foam

502007549

$11.91

660

LH Front Bottom Pan Foam

502008334

$10.94

670

LH Rear Bottom Pan Foam

502008173

$2.12

700

Heat Shield

502008087

$6.09

710

Stopper

502008752

$1.94

720

Reflective Sheet

502008156

$4.54

800

Front Bumper | Includes 800 to 800b

502007869

$160.74

800b

Bumper Trim

502007880

$28.43

810

Hex. Flange Screw M5 X 20, Scotch Grip

207552044

$4.12

830

Black, Pop Rivet 3/16 X ,550

293150292

$0.86

850

RH Bumper Reinforcement

502007762

$11.83

855

Hex. Flange Screw M6 X 16

207661644

$0.61

860

LH Bumper Reinforcement

502007763

$11.83

865

Hex. Flange Screw M6 X 16

207661644

$0.61

910

Torx Screw M6 X 25

250000758

$1.74

1200

Lower Prefilter Grille

502007979

$26.89

1220

Upper Prefilter Grille

502007980

$22.99

1840

Grommet

414036300

$2.22

1850

Male Connector

414580700

$3.38

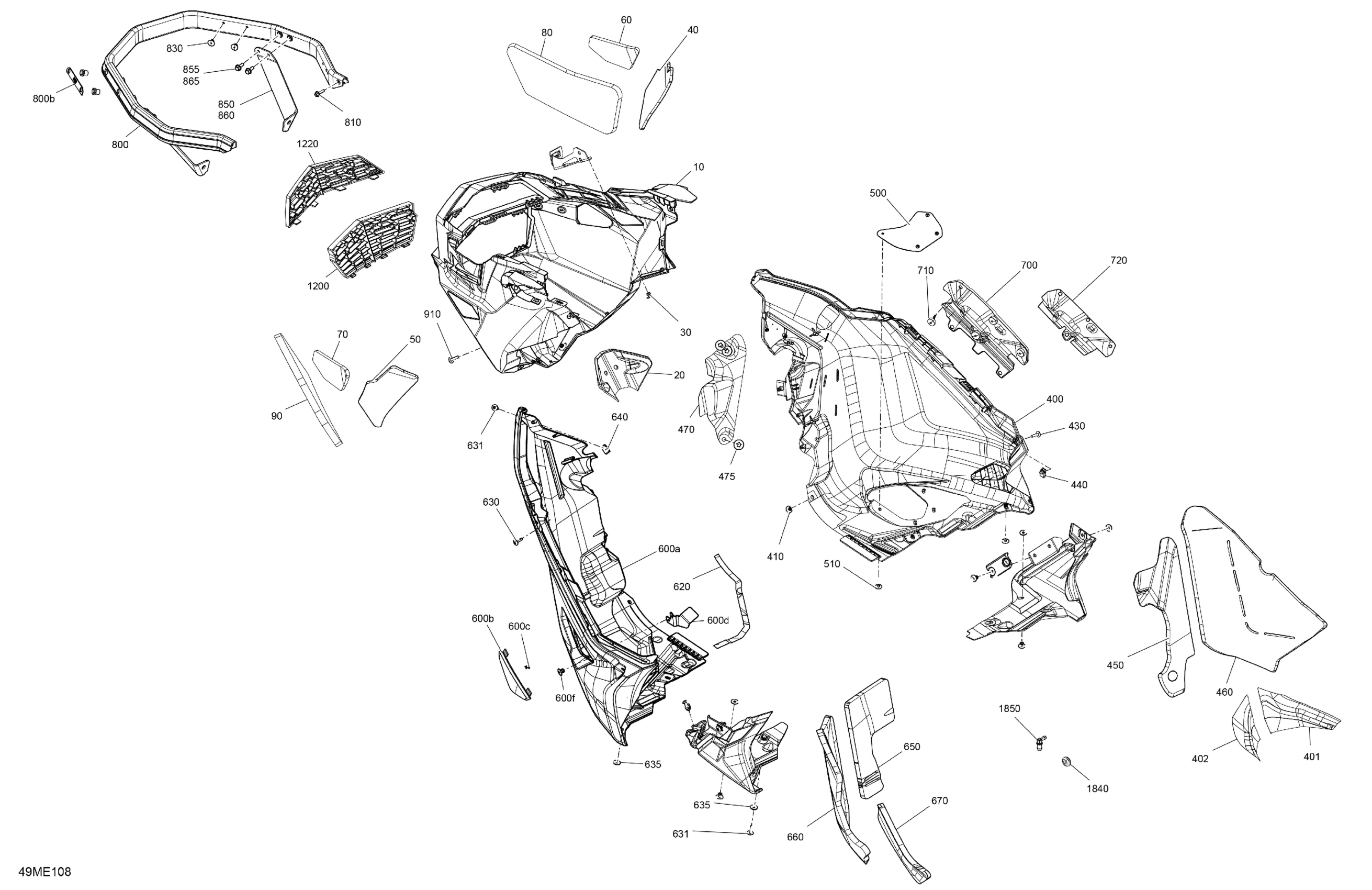

Ski-Doo EXPEDITION - 900 ACE TURBO - LE - ACSC - Deep Black - 154X24X1.5CST Track - 2025 Body - Bottom Pan Diagram
