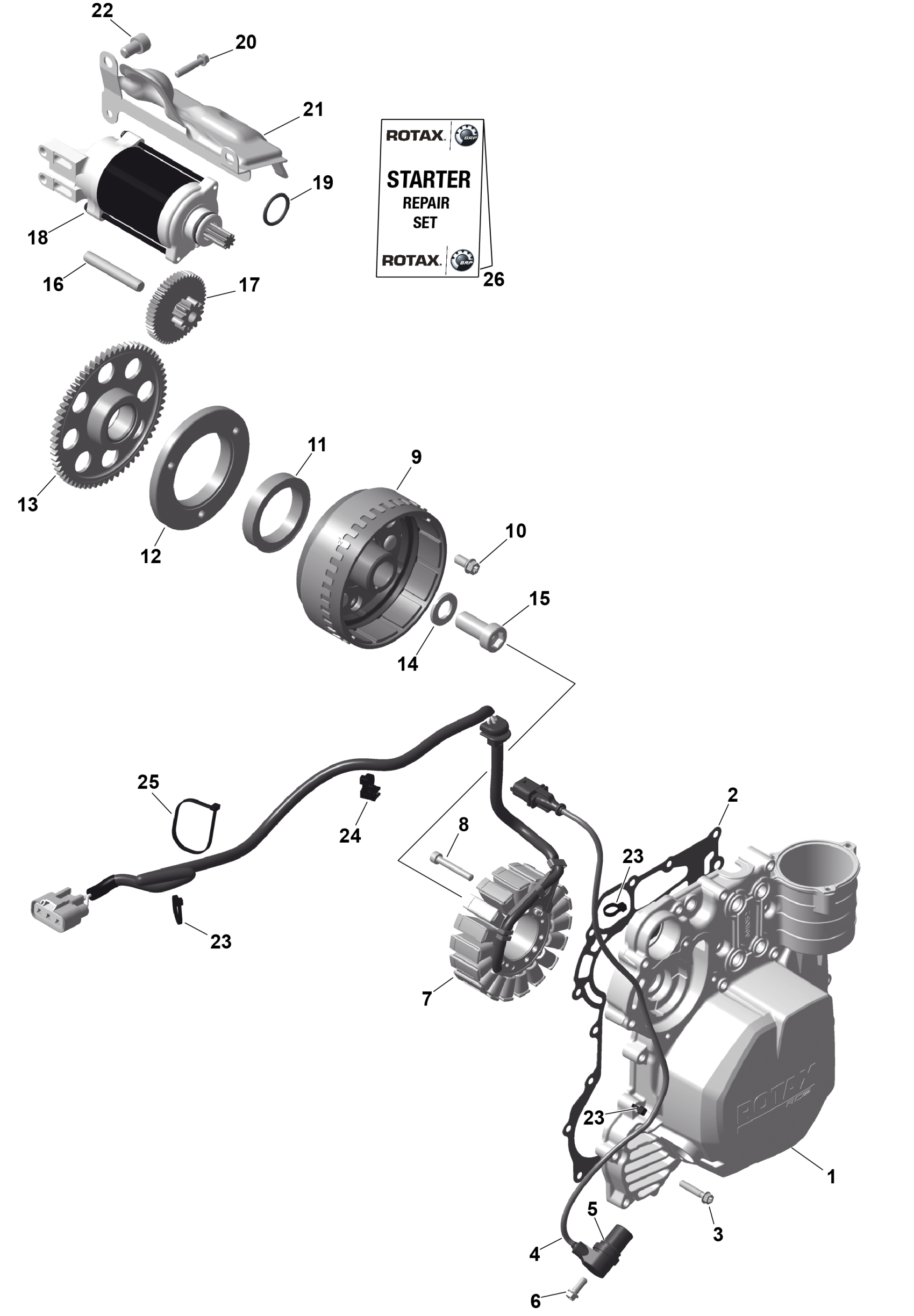

Ski-Doo EXPEDITION - 900 ACE TURBO - LE - ACSA - Deep Black - 154X20X1.5CST Track - 2025 ROTAX - Magneto and Electric Starter Diagram

Description

Price

Ignition Cover

420911055

$164.90

Gasket

420431640

$31.82

Torx Flange Screw M6 X 30

420440647

$1.91

Crankshaft Position Sensor Ass'y | Includes 10 to 11

420966570

$92.92

O-Ring

420431580

$12.29

Torx Flange Screw M6 X 16

420440162

$3.01

Stator Plate

420685629

$320.12

Allen Screw M6 X 40

420241956

$2.63

Flywheel Ass'y

420686196

$529.99

Torx Flange Screw M8 X 16

420440854

$3.61

Sprag Clutch

420659113

$205.37

Sparg Clutch Housing

420659263

$122.82

Free Wheel Gear, 64 Teeth

420434238

$88.37

Shim

420627270

$3.38

Socket Head Screw M16 X 35

420241549

$7.05

Needle Pin

420229475

$12.29

Starter Double Gear 11/49 T

420634741

$155.97

Electric Starter Ass'y

420892435

$297.99

O-Ring

420250145

$7.87

Torx Flange Screw M6 X 30

420440647

$1.91

Heat Shield

420975136

$114.90

Allen Screw M10 X 16

420841663

$6.93

Tie Rap

420866714

$1.56

Tie-Rap With Mount

420951655

$1.72

Tie Rap

420651397

$0.96

Starter Repair Kit

420881149

$64.90
