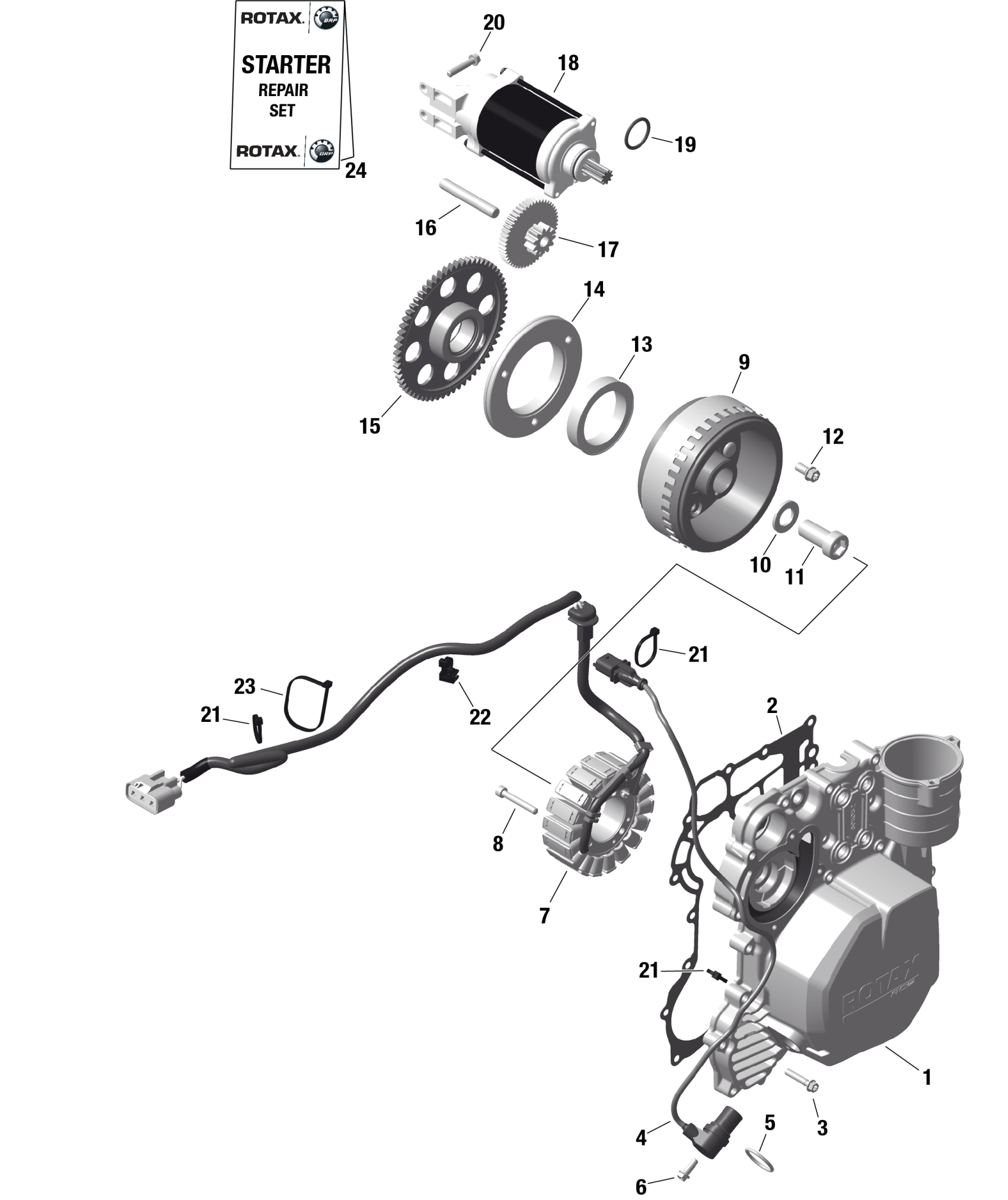

Ski-Doo EXPEDITION 900 ACE - SPORT - KDRA - Neo Yellow - 154X16X1.5CH Track, 2024 ROTAX - Magneto and Electric Starter Diagram

#

Description
Price

1

Ignition Cover

420911055

$164.90

2

Gasket

420431640

$36.54

3

Torx Flange Screw M6 X 30

420440647

$1.91

4

Crankshaft Position Sensor Ass'y | Includes 10 to 11

420966570

$106.69

5

O-Ring

420431580

$14.10

6

Torx Flange Screw M6 X 16

420440162

$3.01

7

Stator Ass'y 14V 520W

420685928

$319.49

8

Allen Screw M6 X 40

420241956

$3.01

9

Flywheel

420685707

$398.48

10

Shim

420627270

$3.88

11

Socket Head Screw M16 X 35

420241549

$8.09

12

Torx Flange Screw M8 X 16

420440854

$4.15

13

Sprag Clutch

420659113

$235.79

14

Sparg Clutch Housing

420659263

$141.01

15

Free Wheel Gear, 64 Teeth

420434238

$101.46

16

Needle Pin

420229475

$14.10

17

Double Gear 11/49

420634743

$179.07

18

Electric Starter Ass'y

420892435

$297.99

19

O-Ring

420250145

$9.03

20

Torx Flange Screw M6 X 30

420440647

$1.91

21

Tie Rap

420866714

$1.79

22

Tie-Rap With Mount

420951655

$1.72

23

Tie Rap

420651397

$0.96

24

Starter Repair Kit

420881149

$64.90
