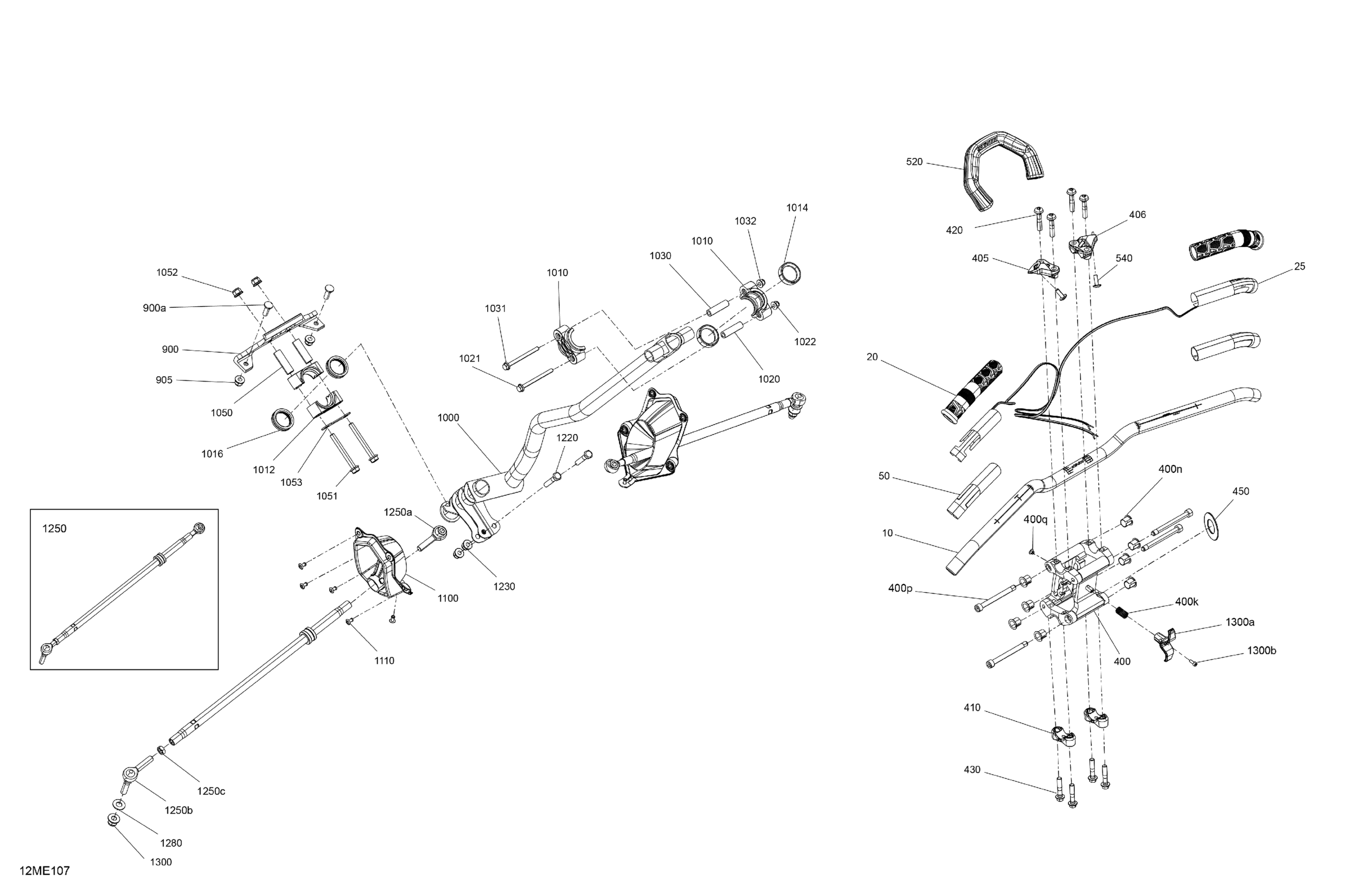

Ski-Doo EXPEDITION - 850 E-TEC - SE - AGSA - Deep Black - 154X20X1.8CST8 Track - 2025 Mechanic - Steering Diagram

#

Description
Price

10

Black, Handle Bar

506153209

Unavailable

20

Grip 148mm

506152560

Unavailable

25

Heated Film

506152856

Unavailable

50

Thermal Insulation

506153176

Unavailable

400

Riser Kit, Adjustable | Includes 400 to 400q

860201320

Unavailable

400k

Spring

506152820

Unavailable

400n

Cushion

506152520

Unavailable

400p

Socket Head Screw M8 X 85

205588554

Unavailable

400q

Pop Rivet 3/16 X ,425

293150293

Unavailable

405

LH Handle Bar Support

506152867

Unavailable

406

RH Handle Bar Support

506152928

Unavailable

410

Steering Support

506152894

Unavailable

420

Button Head Torx Screw M8 X 38

250000904

Unavailable

430

Hex. Flange Screw M8 X 1.25 x 40

250000852

Unavailable

450

Washer

506152992

Unavailable

520

Moulding Strap Ass'y

506153133

Unavailable

540

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

Unavailable

900

Support Plate | Includes 900 to 900a

506152787

Unavailable

900a

Clinch Stud

250300038

Unavailable

905

Hex. Elastic Flange Nut M8

233281416

Unavailable

1000

Main Tube

506153024

Unavailable

1010

Upper Half Housing

506152219

Unavailable

1012

Lower Half Housing

506153048

Unavailable

1014

Upper Vibration Ring

506152292

Unavailable

1016

Lower Vibration Ring

506152518

Unavailable

1020

Housing Bushing

506152297

Unavailable

1021

Hex. Flange Screw M6 x 75

250001114

Unavailable

1022

Elastic Flange Nut M6 X 1.0

233261416

Unavailable

1030

Housing Bushing

506152297

Unavailable

1031

Hex. Flange Screw M6 x 75

250001114

Unavailable

1032

Elastic Flange Nut M6 X 1.0

233261416

Unavailable

1050

Housing Bushing

506152937

Unavailable

1051

Hex. Flange Screw M8 X 70

207687044

Unavailable

1052

Hex. Elastic Flange Nut M8

233281416

Unavailable

1053

Stopper Plate

506152938

Unavailable

1100

Cap

506153294

Unavailable

1110

Pop Rivet 3/16"

293150008

Unavailable

1220

Hex. Screw M8 X 40

207084044

Unavailable

1230

Hex. Elastic Flange Nut M8

233281416

Unavailable

1250

Rod Ass'y | Includes 1250 to 1250c

506153056

Unavailable

1250a

LH Threaded Ball Joint

506152344

Unavailable

1250b

RH Threaded Ball Joint

506152684

Unavailable

1250c

RH Threaded Hex. Jam Nut M10

732610010

Unavailable

1280

Washer

506152582

Unavailable

1300

Hex. Flange Elastic M10 x 1.5

233201464

Unavailable

1300a

Handle

506152821

Unavailable

1300b

Socket Head Screw M4X 10

205041060

Unavailable
