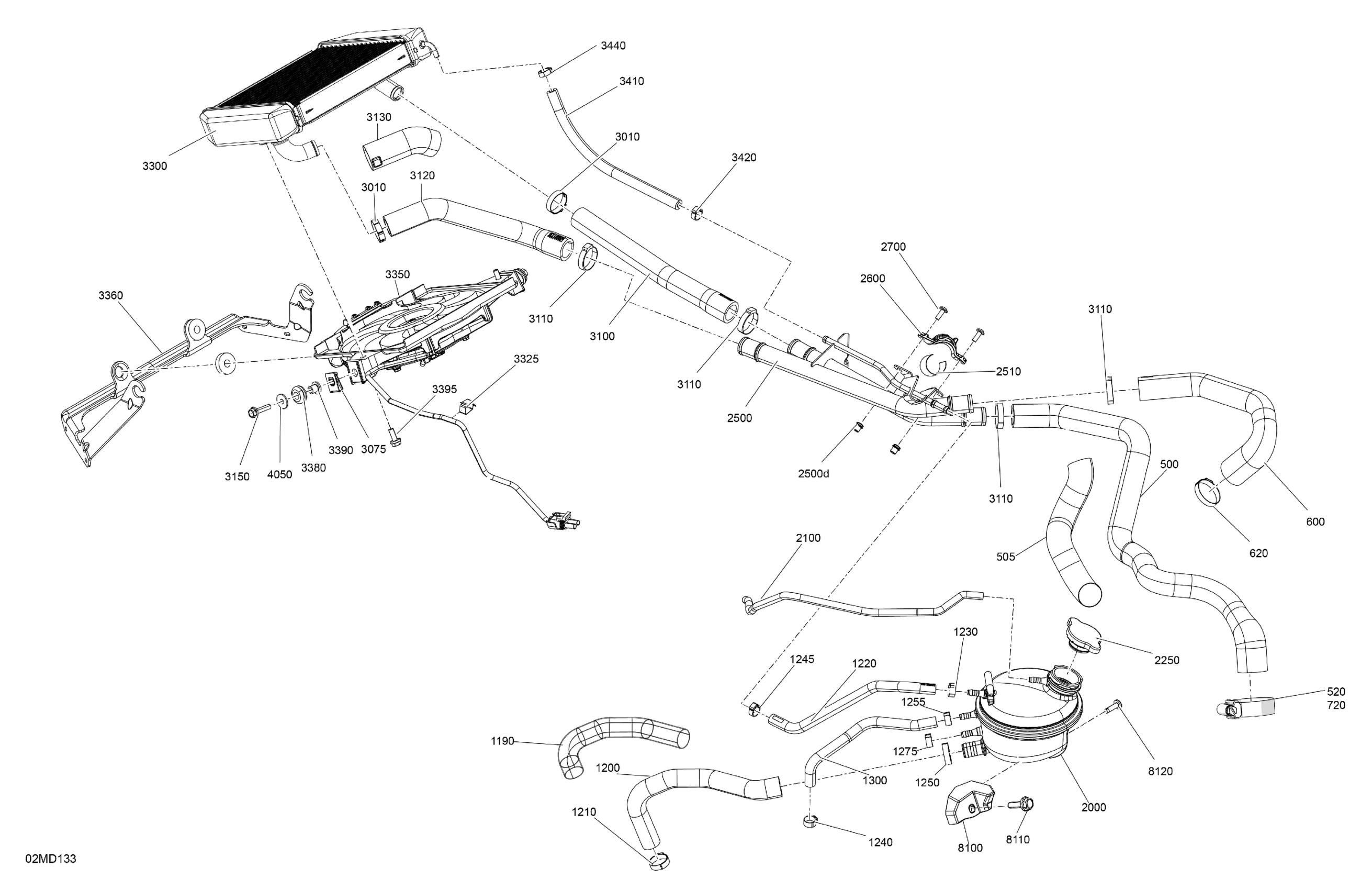

Ski-Doo EXPEDITION 600R E-TEC - LE - AMRA - Deep Black - 154X24X1.5CST Track, 2024 Engine - Cooling Diagram

Description

Price

500

Hose

509001284

Unavailable

505

Protector Tube 32 Mm 1000Mm Long

219704421

$25.35

520

Aba Gear Clamp, 26-38 MM

509000443

$5.68

600

Hose

509001161

Unavailable

620

Oetiker Clamp

293650306

Unavailable

720

Aba Gear Clamp, 26-38 MM

509000443

$5.68

1190

Protector Tube 32 Mm 1000Mm Long

219704421

$25.35

1200

Hose

509001164

Unavailable

1210

Oeticker Gear Clamp, 25.6-706R

509000442

Unavailable

1220

Hose

509001165

Unavailable

1230

Oetiker Clamp

293650046

Unavailable

1240

Oetiker Clamp

293650046

Unavailable

1245

Oetiker Gear Clamp

293650025

$2.46

1250

Oetiker Clamp

509001041

Unavailable

1255

Oetiker Clamp

293650046

Unavailable

1275

Oetiker Clamp

293650046

Unavailable

1300

Hose

509001457

Unavailable

2000

Coolant Tank

509001261

Unavailable

2100

Hose 6 Mm 15000Mm Long

219704360

Unavailable

2250

Radiator Pressure Cap

509000180

Unavailable

2500

Coolant Pipe | Includes 2500 to 2500d

861805545

Unavailable

2500d

Insert M5 X 0.8

293450268

Unavailable

2510

Protector

512061214

$2.06

2600

Clamp

509001379

Unavailable

2700

Torx Screw M5 X 14

250000742

$1.20

3010

Crimp Clamp

293650099

Unavailable

3075

Panel Nut M6 X 1.0

250100208

$1.07

3100

Hose

509001234

Unavailable

3110

Oetiker Clamp

293650141

$4.28

3120

Hose

509001236

Unavailable

3130

Protector Tube

707001349

$19.20

3150

Hex. Flange Screw M6 X 25

207562544

$1.39

3300

Radiator

509001037

Unavailable

3325

Clip

414227300

$1.45

3350

Fan Ass'y

509001301

Unavailable

3360

Support

509001046

Unavailable

3380

Overmolded Grommet

293720130

Unavailable

3390

Bushing

293900151

Unavailable

3395

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

Unavailable

3410

Hose 6,35 Mm Id 4000Mm Long

219704547

Unavailable

3420

Oetiker Gear Clamp

293650025

$2.46

3440

Oetiker Clamp

293650042

Unavailable

4050

Flat Washer

250200082

Unavailable

8100

Support

509001259

Unavailable

8110

Hex. Flange Screw S.Grip M6 X 20

207562054

Unavailable

8120

Screw PT Type K-50 X 16

250000959

Unavailable
