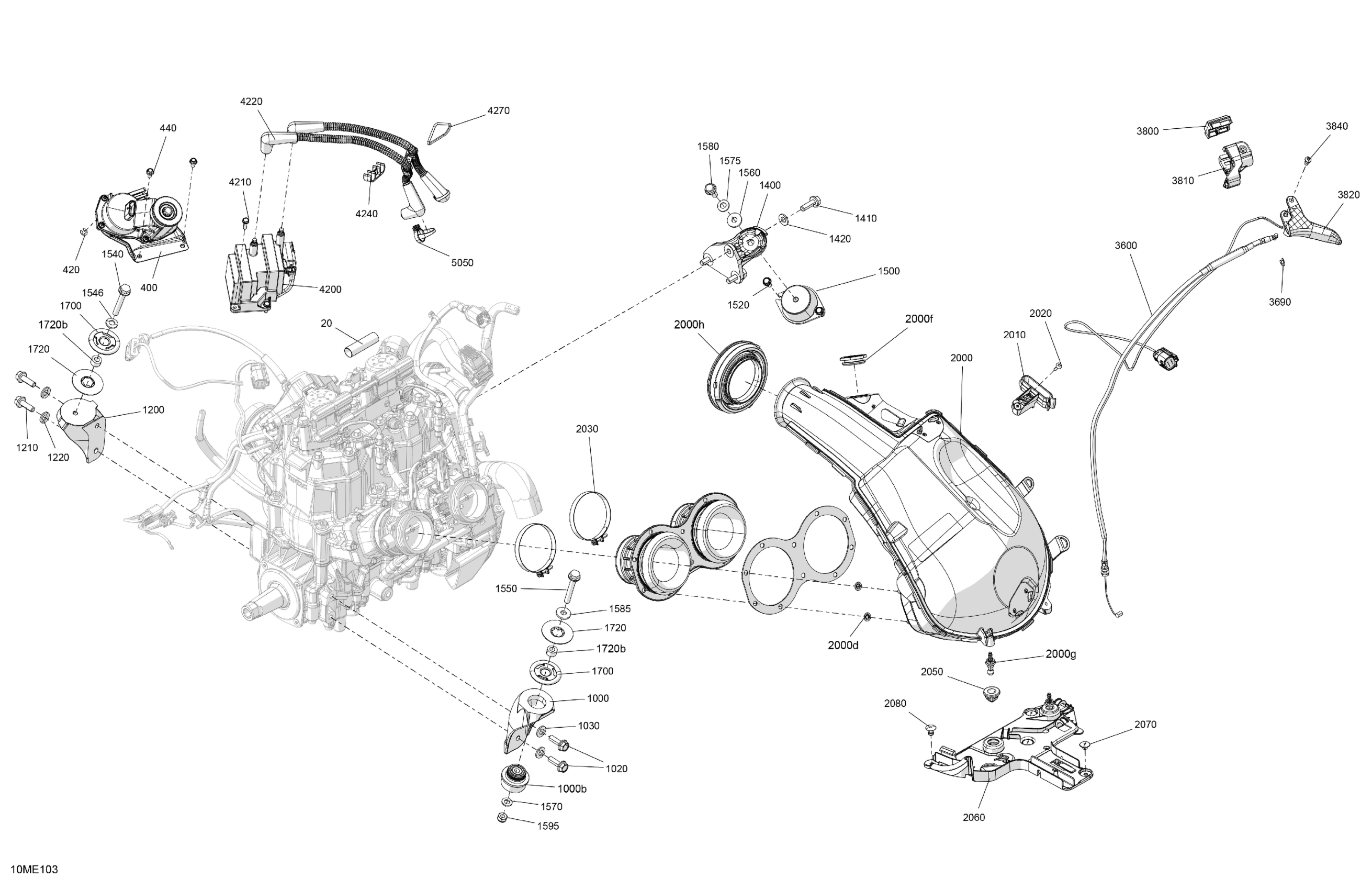

Ski-Doo EXPEDITION - 600R E -TEC - LE - ABSA - Catalyst Gray - 154X24X1.5CST Track - 2025 Engine - System Diagram

#

Description
Price

20

Braided Sleeve 60MM Long

515178492

Unavailable

400

Servo Motor Ass'y

420889425

Unavailable

420

Circlip

293370122

Unavailable

440

Hex. Flange Screw M5 X 10

207551044

Unavailable

1000

Rear PTO Support Ass'y | Includes 1000 to 1000b

512061517

$74.58

1000b

Vibration Damper

512061516

$57.66

1020

Hex Flange Screw M8 X 25 S.Grip

250001016

Unavailable

1030

Conical Spring Washer M8

250200146

Unavailable

1200

Front PTO Support

512061025

$29.97

1210

Hex Flange Screw M8 X 25 S.Grip

250001016

Unavailable

1220

Conical Spring Washer M8

250200146

Unavailable

1400

MAG Support

512061027

$36.12

1410

Hex Flange Screw M8 X 25 S.Grip

250001016

Unavailable

1420

Conical Spring Washer M8

250200146

Unavailable

1500

Rubber Mount

512061514

$69.97

1520

Hex. Flange Screw M6 X 16

250001062

Unavailable

1540

Hex. Flange Screw M8 X 55

207585544

Unavailable

1546

Conical Spring Washer M8

250200146

Unavailable

1550

Hex. Flange Screw M8 X 55

207585544

Unavailable

1560

Yellow, Washer

503183200

Unavailable

1570

Flat Washer With Teflon 8 mm

250200008

Unavailable

1575

Conical Spring Washer M8

250200146

Unavailable

1580

Hex. Flange Screw M8 X 25

207682544

$0.90

1585

Yellow, Washer

503183200

Unavailable

1595

Hex. Elastic Stop Nut M8

232581414

Unavailable

1700

Engine Stopper

512061137

Unavailable

1720

Spacer | Includes 1720 to 1720b

512061300

$10.05

1720b

Spacer

512061198

$2.06

2000

Chamber Ass'y | Includes 2000 to 2000h

508001093

Unavailable

2000d

Push Nut

732610072

Unavailable

2000f

Rubber

512061083

Unavailable

2000g

Screw

420441840

Unavailable

2000h

Boot

508000805

$16.89

2010

Cable Guide

512061325

Unavailable

2020

Torx-Truss Pt K40 X 16

250000759

Unavailable

2030

GEMI Clamp

293650212

Unavailable

2050

Rubber Cap

420201630

Unavailable

2060

Airbox Support

512061274

$10.57

2070

Black, Pop Rivet 3/16 X ,425

293150291

Unavailable

2080

Black, Pop Rivet 3/16 X ,550

293150292

Unavailable

3600

Throttle Cable

512061224

Unavailable

3690

Circlip

414274500

Unavailable

3800

Upper Housing

512060859

Unavailable

3810

Lower Housing

512060860

Unavailable

3820

Throttle Ass'y

512061266

$114.58

3840

Flange Screw M5x12

250000991

Unavailable

4200

Ignition Coil

512061168

Unavailable

4210

Hex. Plastic Screw M4.8 X 16

243141630

Unavailable

4220

Ignition Cable

512061166

Unavailable

4240

Spark Plug Wire Holder

512061238

Unavailable

4270

O-Ring

293300208

Unavailable

5050

Clamp

512060993

Unavailable
