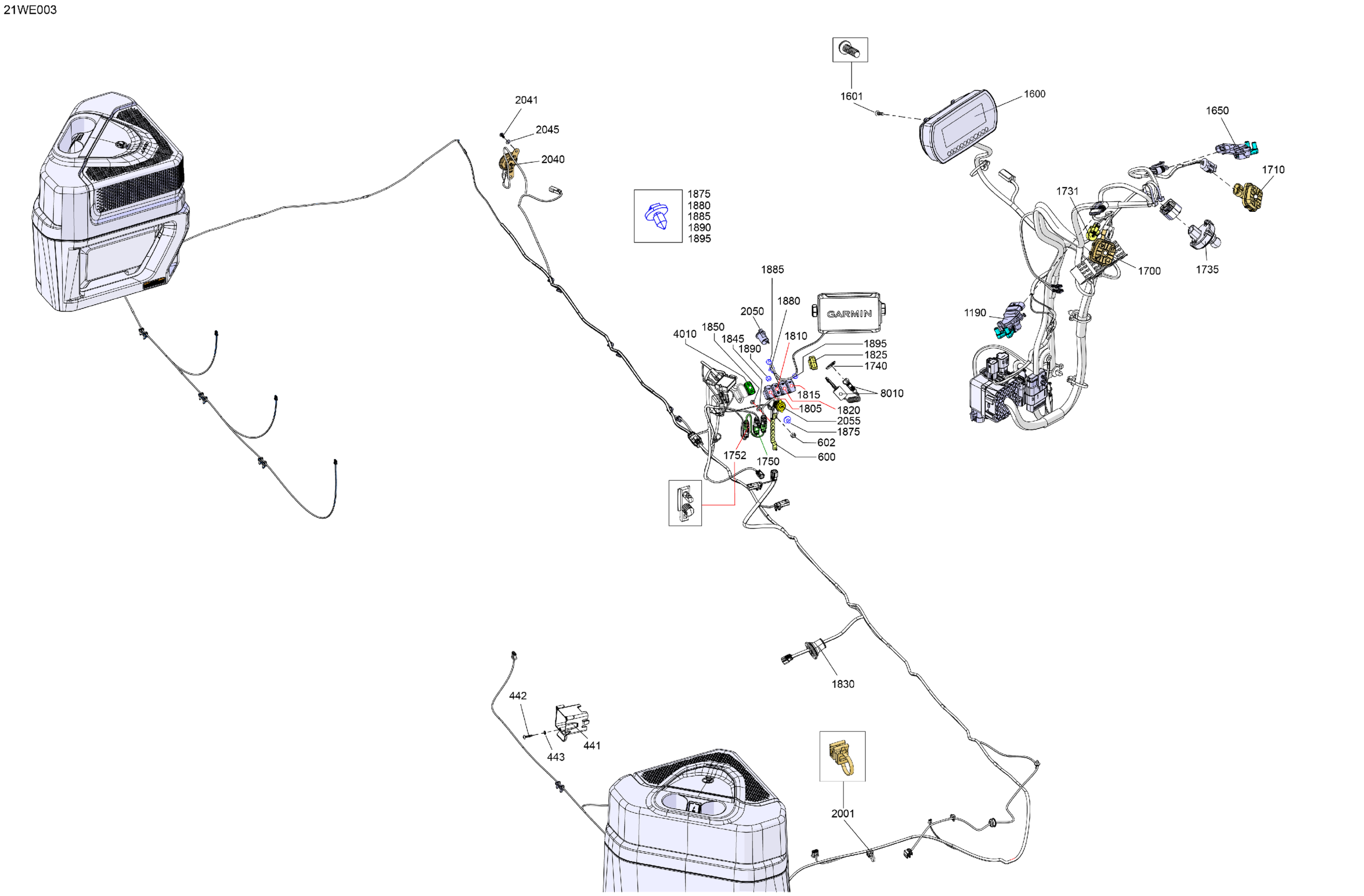

Sea-doo CRUISE 18 - 230 - 45SB - Dusty Navy - Trailer Galv - CAT2B - 2025 ELECTRIC - Electric Upper Section Diagram

Description

Price

441

Switch Support

278004308

$16.39

442

Plastite Screw Torx Cone HD.M6.81X3

250001138

$1.85

443

Sealing Washer

250200114

$4.15

600

Busbar Ass'y

281000234

$32.81

602

Elastic Stop Nut M6, Brass

232561200

$4.03

1601

Hex. Flange PT Screw K50 X 20

241152040

$2.00

1740

Specialized Nut

278004274

$3.12

1750

Multiple Accessory Harness

278003684

$47.73

1752

Connector Support

515179692

$1.87

1805

Horn Switch

278003690

$49.22

1810

Nav & Anchor Light Switch

278003691

$35.49

1815

Pump Switch

278003692

$51.46

1820

Vent Switch

278003693

$42.51

1825

Plug

278004279

Unavailable

1830

Cable Boot

293720134

Unavailable

1845

Stainless Flat Washer M6

234061600

$0.28

1850

Elastic Stop Nut M6, Brass

232561200

$4.03

1875

Mount Dart

710008294

$0.99

1880

Mount Dart

710008294

$0.99

1885

Mount Dart

710008294

$0.99

1890

Mount Dart

710008294

$0.99

1895

Mount Dart

710008294

$0.99

2001

Anchorage Tie Wrap

293750103

$4.27

2040

Horn

278003906

Unavailable

2041

Plastite Torx Screw Cone HD.M6.81X2

250001171

$5.04

2045

Stainless, Flat Washer 8 mm

234081600

$0.52

2050

12V Power Outlet

710005374

$31.31

2055

USB Outlet

219400510

$43.99

4010

Courtesy Light Switch

278003822

Unavailable

8010

Safety Lanyard Ass'y, RFID

278003400

$67.13

8030

Cord Cut Off Switch Tether | Not Shown

278004223

$29.82

1190

LH Throttle Sensor

278002284

$108.18

1600

Multifunction Mono Compact Gauge

278003430

$532.06

1650

Throttle Position Sensor

278002283

$104.99

1700

Switch

278003821

$116.39

1710

RH Switch Keypad

278003474

$116.39

1731

Start/Stop Switch This part replaces 296000440.

296000440

$49.22

1735

Terminal DESS One Wire

515179305

$69.37
