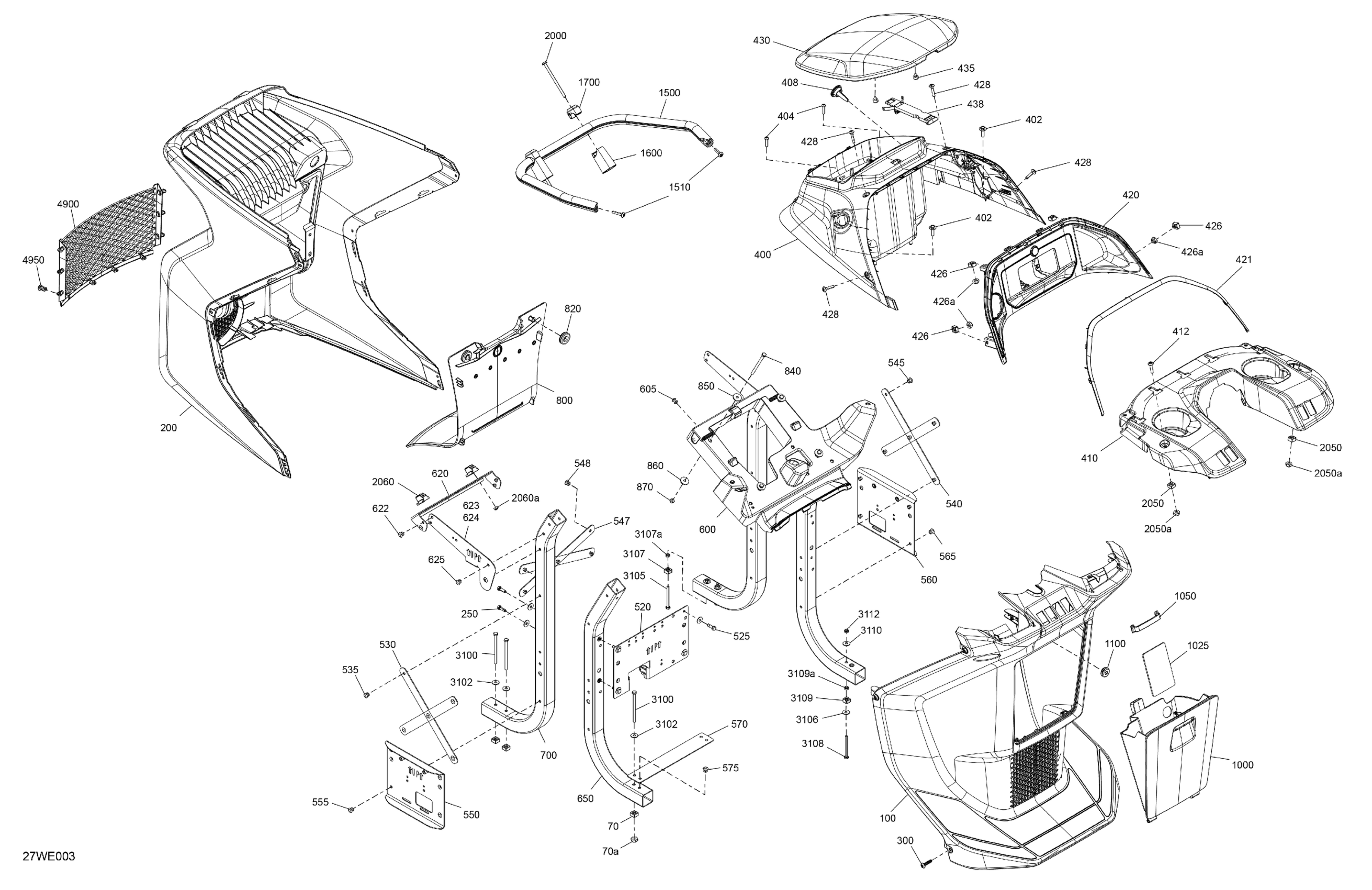

Sea-doo CRUISE 18 - 230 - 45SB - Dusty Navy - Trailer Galv - CAT2B - 2025 BODY - Console Diagram

#

Description
Price

70

Nut Housing M6 | Includes 555 to 555b

269502544

$4.42

70a

Elastic Stop Nut M6, Brass

232561200

$3.51

100

Rear Console Panel

281000001

$157.92

200

Front Console Panel

281000002

$193.82

250

Hex Screw M6 X 20

250000965

$1.74

300

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$1.74

400

Upper Front Console Panel

281000145

Unavailable

402

Hexagonal Cap Screw M6 X 25

250000978

$3.61

404

Torx Screw M6 X 25, Scotch Grip

250000328

$1.46

408

USB Plug

269502324

$2.39

410

Upper Rear Console Panel

281000150

Unavailable

412

Screw-Torx Truss Cone Head M6X25

250001116

$3.39

420

Gauge Support

281000152

Unavailable

421

Console Trim

281000153

Unavailable

426

Nut Housing M6 | Includes 555 to 555b

269502544

$4.42

426a

Elastic Stop Nut M6, Brass

232561200

$3.51

428

Truss Cone Torx Screw M6 X 30

250000924

$6.15

430

Box Cover

281000147

Unavailable

435

Rubber Bumper

293830005

$5.33

438

Lid Latch

281000169

Unavailable

520

Rear Reinforcement

281000211

$32.28

525

Hex Screw M6 X 20

250000965

$1.74

530

Lateral Reinforcement

281000058

$5.91

535

Ornit Rivet 6,4 X 15.6

293150284

$4.60

540

Lateral Reinforcement

281000058

$5.91

545

Ornit Rivet 6,4 X 15.6

293150284

$4.60

547

Lateral Reinforcement

281000058

$5.91

548

Ornit Rivet 6,4 X 15.6

293150284

$4.60

550

Amplifier Support Ass'y

281000123

$41.51

555

Ornit Rivet 6,4 X 15.6

293150284

$4.60

560

Amplifier Support Ass'y

281000123

$41.51

565

Ornit Rivet 6,4 X 15.6

293150284

$4.60

570

Rear Lower Reinforcement

281000081

$6.45

575

Ornit Rivet 6,4 X 15.6

293150284

$4.60

600

Steering Colum Reinforcement

281000060

$50.74

605

Ornit Rivet 6,4 X 15.6

293150284

$4.60

620

Hand Rail Reinforcement

281000191

Unavailable

622

Ornit Rivet 6,4 X 15.6

293150284

$4.60

623

LH Reinforcement Ass'y

281000198

Unavailable

624

RH Reinforcement Ass'y

281000199

Unavailable

625

Ornit Rivet 6,4 X 15.6

293150284

$4.60

650

Rear Tube Support Ass'y

281000200

$49.99

700

Front Tube Support Ass'y

281000201

$49.99

800

Access Panel

281000000

$235.35

820

Grommet

517303756

$3.15

840

Hex. Screw M6 X 90

207169060

$4.26

850

Flat Washer M6.6 X 22

250200022

$1.87

860

Flat Washer M6.6 X 22

250200022

$1.87

870

Elastic Stop Nut M6, Brass

232561200

$3.51

1000

Storage Box Service Kit

295101093

Unavailable

1025

Self Adhesive Protective Foam

281000110

$2.75

1050

Elastic Strip

281000155

$12.91

1100

Grommet

517307161

$2.22

1500

Console Hand Rail

281000149

Unavailable

1510

Cone Torx Truss Screw HD.M6 X 30

250001146

$3.19

1600

Front Lower Hand Rail Anchorage

281000195

Unavailable

1700

Front Upper Hand Rail Anchorage

281000048

$6.45

2000

Cone Torx Truss Screw HD.M6 X 100

250001163

$3.19

2050

Nut Housing M6 | Includes 555 to 555b

269502544

$4.42

2050a

Elastic Stop Nut M6, Brass

232561200

$3.51

2060

Nut Housing M6 | Includes 2060 to 2060a

281000178

Unavailable

2060a

Elastic Stop Nut M6, Brass

232561200

$3.51

3100

Hex. Screw M6 X 90

207169060

$4.26

3102

Flat Washer M6, Stainless

234062600

$0.64

3105

Hex. Screw M6 X 65

207166560

$2.69

3106

Flat Washer M6, Stainless

234062600

$0.64

3107

Nut Housing M6 | Includes 555 to 555b

269502544

$4.42

3107a

Elastic Stop Nut M6, Brass

232561200

$3.51

3108

Hex. Screw M6 X 65

207166560

$2.69

3109

Nut Housing M6 | Includes 555 to 555b

269502544

$4.42

3109a

Elastic Stop Nut M6, Brass

232561200

$3.51

3110

Flat Washer M6, Stainless

234062600

$0.64

3112

Elastic Stop Nut M6, Brass

232561200

$3.51

4900

Net Ass'y

281000156

$77.97

4950

Tuflok Plastic Rivet

293150230

$1.21
