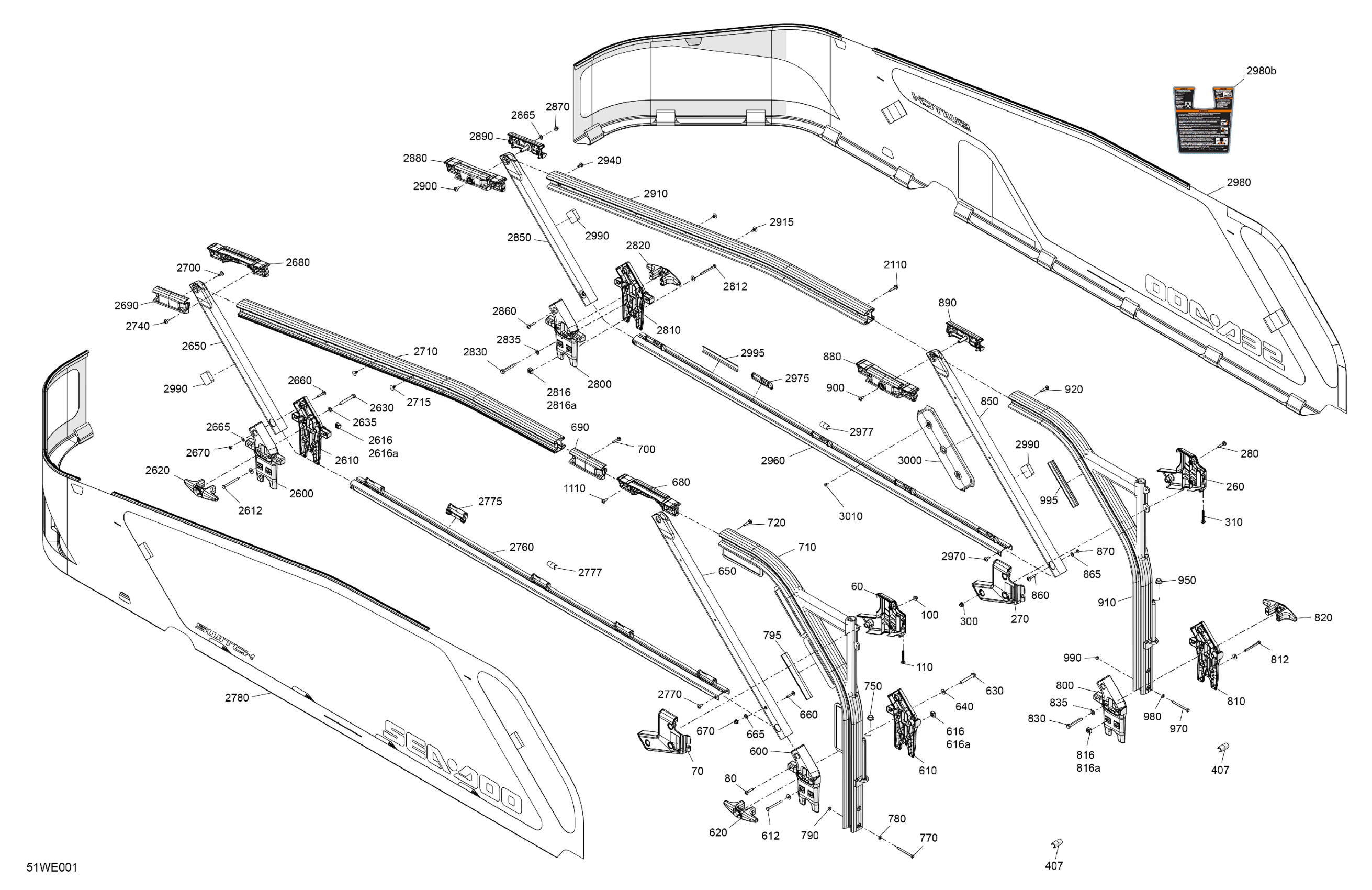

Sea-doo BASE Compact - 130 - 41SB - Can-Am Red - Trailer Paint - NO CAT - 2025 GUARD RAILS - System Assembly Diagram

#

Description
Price

60

Lava Gray, RH Rear Door Hinge

281300327

Unavailable

70

Lava Gray, LH Rear Door Hinge

281300228

Unavailable

80

Truss Cone Torx Screw M6 X 30

250000924

$6.15

100

Nut Flange Elastic M6

233261200

$0.82

110

Plastite Torx Screw Cone HD. M6.81X4

250001191

$3.12

260

Lava Gray, RH Rear Door Hinge

281300327

Unavailable

270

Lava Gray, LH Rear Door Hinge

281300228

Unavailable

280

Truss Cone Torx Screw M6 X 30

250000924

$6.15

300

Nut Flange Elastic M6

233261200

$0.82

310

Plastite Torx Screw Cone HD. M6.81X4

250001191

$3.12

407

Balustrade Fastener

281300597

$2.82

600

LH Rear Rail Support

281300439

$36.89

610

RH Rear Rail Support

281300441

$36.89

612

Socket Head Screw M6 X 65

205066560

$1.55

616

Nut Housing M6 | Includes 555 to 555b

269502544

$4.42

616a

Elastic Stop Nut M6, Brass

232561200

$3.51

620

Cleat

291005668

Unavailable

630

Hex. Screw M8 X 60, Scotch Grip

250000187

$3.61

640

Stainless, Flat Washer 8 mm

234081600

$0.46

650

Rear Profiled Tube

281300172

Unavailable

660

Truss Cone Torx Screw M6 X 30

250000924

$6.15

665

Stainless Flat Washer M6

234061600

$0.25

670

Elastic Stop Nut M6, Brass

232561200

$3.51

680

Interior End Piece

281300244

Unavailable

690

Exterior Cover

281300247

Unavailable

700

Cone Torx Truss Screw HD.M6 X 15

250001147

$3.00

710

LH Rear Guard Rail

281300171

Unavailable

720

Cone Torx Truss Screw HD.M6 X 15

250001147

$3.00

750

Venturi Bushing

293900007

$3.71

770

Hex. Screw M6 X 70

207067060

$4.62

780

Stainless Flat Washer M6

234061600

$0.25

790

Nut Flange Elastic M6

233261200

$0.82

795

Balustrade Support

281300707

$8.45

800

LH Rear Rail Support

281300439

$36.89

810

RH Rear Rail Support

281300441

$36.89

812

Socket Head Screw M6 X 65

205066560

$1.55

816

Nut Housing M6 | Includes 555 to 555b

269502544

$4.42

816a

Elastic Stop Nut M6, Brass

232561200

$3.51

820

Cleat

291005668

Unavailable

830

Hex. Screw M8 X 60, Scotch Grip

250000187

$3.61

835

Stainless, Flat Washer 8 mm

234081600

$0.46

850

Rear Profiled Tube

281300172

Unavailable

860

Truss Cone Torx Screw M6 X 30

250000924

$6.15

865

Stainless Flat Washer M6

234061600

$0.25

870

Elastic Stop Nut M6, Brass

232561200

$3.51

880

Interior End Piece

281300244

Unavailable

890

Exterior Cover

281300247

Unavailable

900

Cone Torx Truss Screw HD.M6 X 15

250001147

$3.00

910

RH Rear Guard Rail

281300432

Unavailable

920

Cone Torx Truss Screw HD.M6 X 15

250001147

$3.00

950

Venturi Bushing

293900007

$3.71

970

Hex. Screw M6 X 70

207067060

$4.62

980

Stainless Flat Washer M6

234061600

$0.25

990

Nut Flange Elastic M6

233261200

$0.82

995

Balustrade Support

281300707

$8.45

1110

Cone Torx Truss Screw HD.M6 X 15

250001147

$3.00

2110

Cone Torx Truss Screw HD.M6 X 15

250001147

$3.00

2600

LH Rail Support

281300241

Unavailable

2610

RH Rail Support

281300237

Unavailable

2612

Socket Head Screw M6 X 65

205066560

$1.55

2616

Nut Housing M6 | Includes 555 to 555b

269502544

$4.42

2616a

Elastic Stop Nut M6, Brass

232561200

$3.51

2620

Cleat

291005668

Unavailable

2630

Hex. Screw M8 X 60, Scotch Grip

250000187

$3.61

2635

Stainless, Flat Washer 8 mm

234081600

$0.46

2650

Front Profiled Tube

281300182

Unavailable

2660

Truss Cone Torx Screw M6 X 30

250000924

$6.15

2665

Stainless Flat Washer M6

234061600

$0.25

2670

Elastic Stop Nut M6, Brass

232561200

$3.51

2680

Interior End Piece

281300244

Unavailable

2690

Exterior Cover

281300247

Unavailable

2700

Cone Torx Truss Screw HD.M6 X 15

250001147

$3.00

2710

LH Front Side Hand Rail

281300287

Unavailable

2715

Black, Dart

414644300

$0.78

2740

Cone Torx Truss Screw HD.M6 X 15

250001147

$3.00

2760

Lower Profile Tube

281300178

Unavailable

2770

Cone Torx Truss Screw HD.M6 X 15

250001147

$3.00

2775

Balustrade Anchor

281300589

Unavailable

2777

Balustrade Fastener

281300597

$2.82

2780

LH Side Ballustrade Ass'y

281300701

$429.99

2800

LH Rail Support

281300241

Unavailable

2810

RH Rail Support

281300237

Unavailable

2812

Socket Head Screw M6 X 65

205066560

$1.55

2816

Nut Housing M6 | Includes 555 to 555b

269502544

$4.42

2816a

Elastic Stop Nut M6, Brass

232561200

$3.51

2820

Cleat

291005668

Unavailable

2830

Hex. Screw M8 X 60, Scotch Grip

250000187

$3.61

2835

Stainless, Flat Washer 8 mm

234081600

$0.46

2850

Front Profiled Tube

281300182

Unavailable

2860

Truss Cone Torx Screw M6 X 30

250000924

$6.15

2865

Stainless Flat Washer M6

234061600

$0.25

2870

Elastic Stop Nut M6, Brass

232561200

$3.51

2880

Interior End Piece

281300244

Unavailable

2890

Exterior Cover

281300247

Unavailable

2900

Cone Torx Truss Screw HD.M6 X 15

250001147

$3.00

2910

RH Front Side Hand Rail

281300416

Unavailable

2915

Black, Dart

414644300

$0.78

2940

Cone Torx Truss Screw HD.M6 X 15

250001147

$3.00

2960

Lower Profile Tube

281300178

Unavailable

2970

Cone Torx Truss Screw HD.M6 X 15

250001147

$3.00

2975

Balustrade Anchor

281300589

Unavailable

2977

Balustrade Fastener

281300597

$2.82

2980

RH Side Balustrade Service Kit

295101397

Unavailable

2980b

Gasoline Warning Label

219906264

Unavailable

2990

Balustrade Support

281300506

Unavailable

2995

Velcro Strip 150MM

293740076

$11.57

3000

Support Label

281300852

$41.51

3010

Ornit Rivet 6,4 X 15.6

293150284

$4.60
