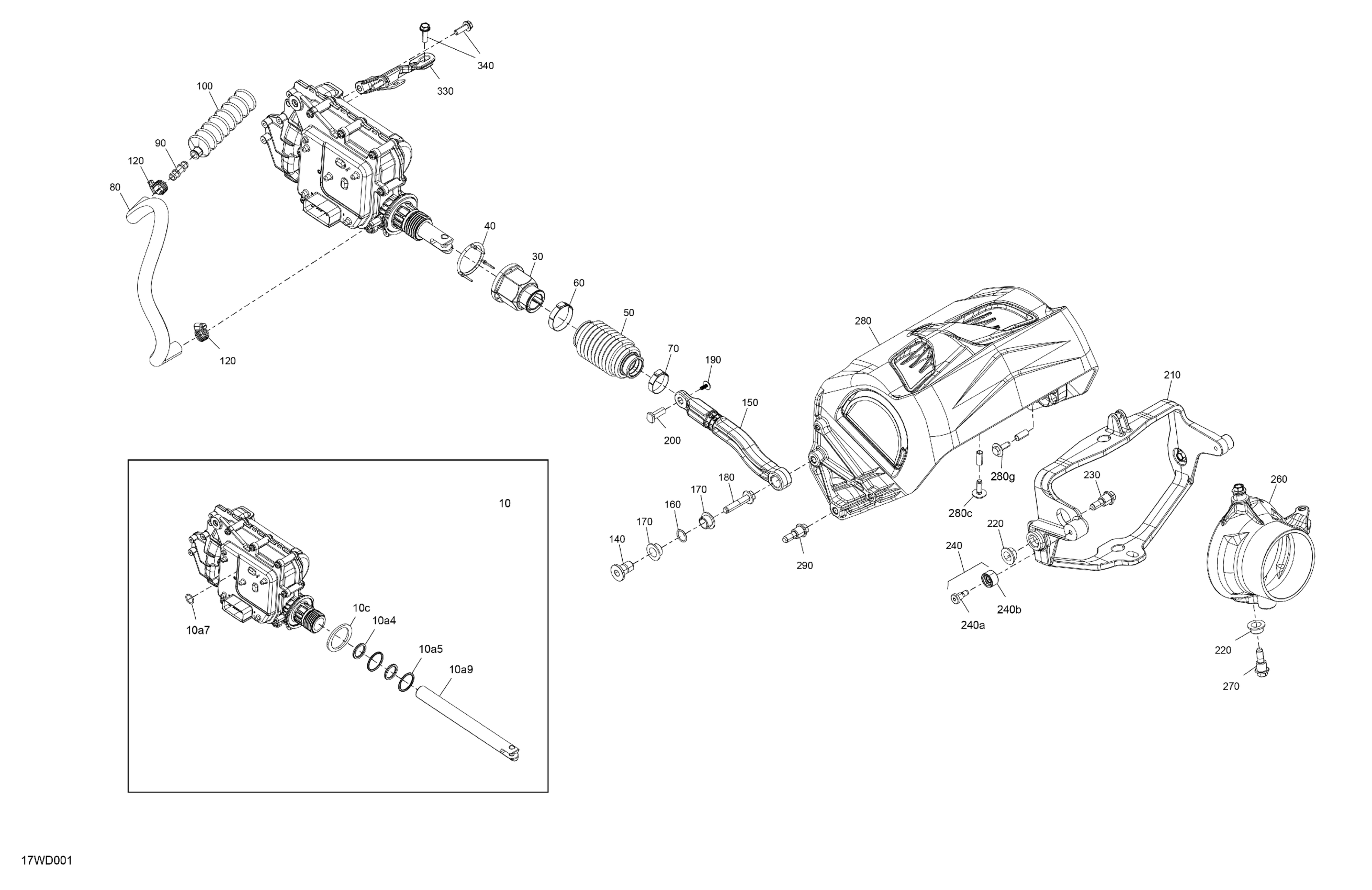

Sea-doo BASE Compact - 130 - 41RA - Red - Trailer Paint - NO CAT, 2024 MECHANICS - Reverse Diagram

Description

Price

Actuator Reverse Ass'y | Includes 10 to 10c

278004394

$643.47

10a4

O-Ring

279000108

$4.89

10a5

O-Ring

293300107

$0.83

10a7

O-Ring

293300187

$3.20

10a9

Output Shaft

278003027

$44.17

10c

Gasket

268000208

$12.52

IBR Nut

268000308

$8.57

Rubber Gasket

277001977

$1.76

Boot

268000186

$3.59

Oetiker Gear Clamp, 36.5-706R

509000529

$10.14

Crimp Clamp

293650099

$4.60

Was 509000407 Hose 8 mm

219704420

$40.27

Fitting-Straig

293710157

$5.36

100

Inner Boot This part replaces 268000345.

268000211

$8.14

120

Clamp Gear

293650285

$2.68

140

Bushing

268000269

$12.61

150

Linkage Arm Anodised

268000292

$17.52

160

O-Ring

293300187

$3.20

170

Venturi Bushing

293900007

$3.71

180

Hex. Flange Screw Din.6921 S.Grip

250000963

$3.25

190

Hexalob Screw M4 X 10

250000565

$1.74

200

Shoulder Pin

268000309

$14.92

210

Anodised Trimming Ring

268000318

$74.72

220

Venturi Bushing

293900007

$3.71

230

Hex. Flange Screw S.Grip M8 X 18

250000927

$3.25

240

Roller Bushing Kit | Includes 240 to 240b

295501160

$3.30

240a

Screw-Socket Shoulder M8X8

250000775

$6.57

240b

Roller Bushing Kit | Includes 240 to 240b

295501160

$3.30

260

Steering Nozzle

267000906

$25.97

270

Hex. Flange Screw S.Grip M8 X 18

250000927

$3.25

280

Reverse Gate Service Kit | Includes 280 to 280g

295101411

$73.42

280c

Hex Screw M6 X 20

250000965

$1.74

280g

Hex Screw M6 X 20

250000965

$1.74

290

Hex. Flange Screw S.Grip M8 X 18

250000927

$3.25

330

Actuator Brace

268000307

$3.89

340

Hex. Flange Screw M6.81 x 20

243162060

$3.30
