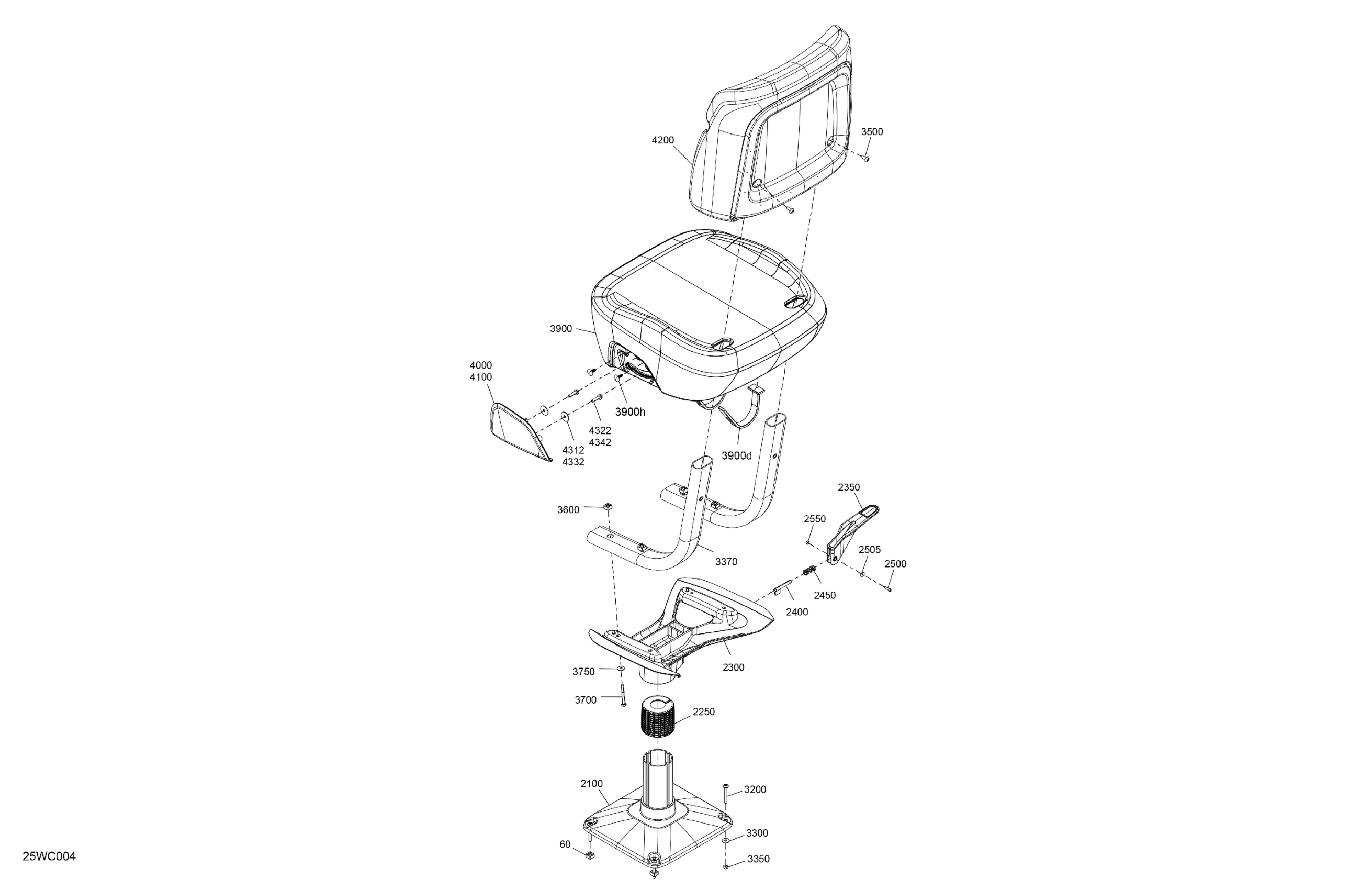

Sea-doo BASE Compact - 130 - 41PJ - Blue - Trailer Paint - NO CAT, 2023 HELM - Driver Seat Diagram

Description

Price

M6 Nut Housing | Includes 550f to 550f2

269502497

$5.91

2100

Seat Anchorage Service Kit

295101108

Unavailable

2250

Sleeve

281000022

$3.99

2300

Seat Support

281000006

$89.99

2350

Seat Latch

281000020

$8.98

2400

Latch Rod

281000051

$27.66

2450

Compression Spring

281000063

$6.45

2500

Black, Socket Head Screw M4 X 16

250001011

$1.45

2505

Flat Washer 4 mm, Stainless

234042600

$0.92

2550

Elastic Stop Nut M4

232541200

$1.74

3200

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

$3.33

3300

Flat Washer M6, Stainless

234062600

$0.64

3350

Elastic Stop Nut M6, Brass

232561200

$3.51

3370

Backrest Support Ass'y

281000114

$50.74

3500

Cone Torx Truss Screw HD.M6 X 15

250001147

$3.00

3600

M6 Nut Housing | Includes 550f to 550f2

269502497

$5.91

3700

Hex. Screw M6 x 55

207065560

$0.83

3750

Flat Washer M6, Stainless

234062600

$0.64

3900

Seat Cushion Ass'y | Includes 3900 to 3900h

281000007

$263.05

3900d

Strap

269502417

$14.27

3900h

Black, Dart

293730011

$0.79

4000

RH Ext Seat Trim

281000042

$12.91

4100

LH Ext Seat Trim

281000046

$12.91

4200

Driver Backrest Ass'y

281000026

$332.28

4312

Flat Washer M6 X 25

250200044

$2.31

4322

Hex. Flange Screw M6.81 X 25, Plastite

243162560

$1.46

4332
