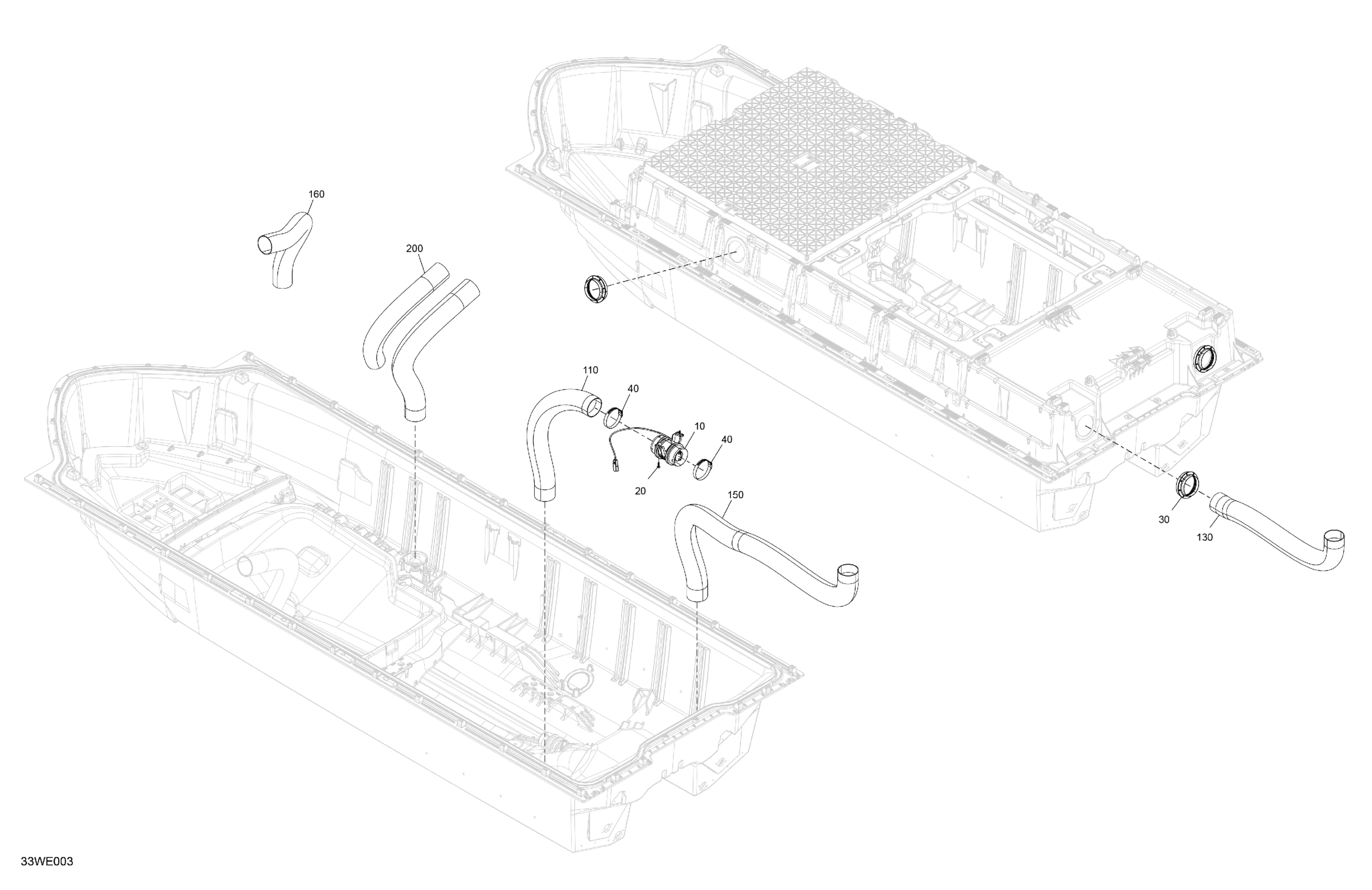

Sea-doo BASE 19 - 170 - 42SA - Can-Am Red - Trailer Paint - CAT2B - 2025 HULL - Ventilation Diagram

Description

Price

Fan Ass'y | Includes 10 to 10g

237000087

Unavailable

10c

Male Amphenol Connector 2 Cavities | Not Shown

515179135

$9.85

10d

Terminal

710005748

$3.12

10f

Amphenol Connector Lock | Not Shown

515179136

$3.73

10g

Shrink Tubing, 6 mm

515177246

$0.99

Torx Screw Truss Head K50X20 T20

250000760

$2.00

Vent Adapter

237000090

$13.09

Tridon Gear Clamp

293650244

$8.28

110

Ventilation Duct

237000079

Unavailable

130

Vent Hose

237000053

$26.84

150

Ventilatino Duct

237000073

$47.73

160

Ventilation Duct

237000079

Unavailable

200

Acoustic Duct

237000086

Unavailable
