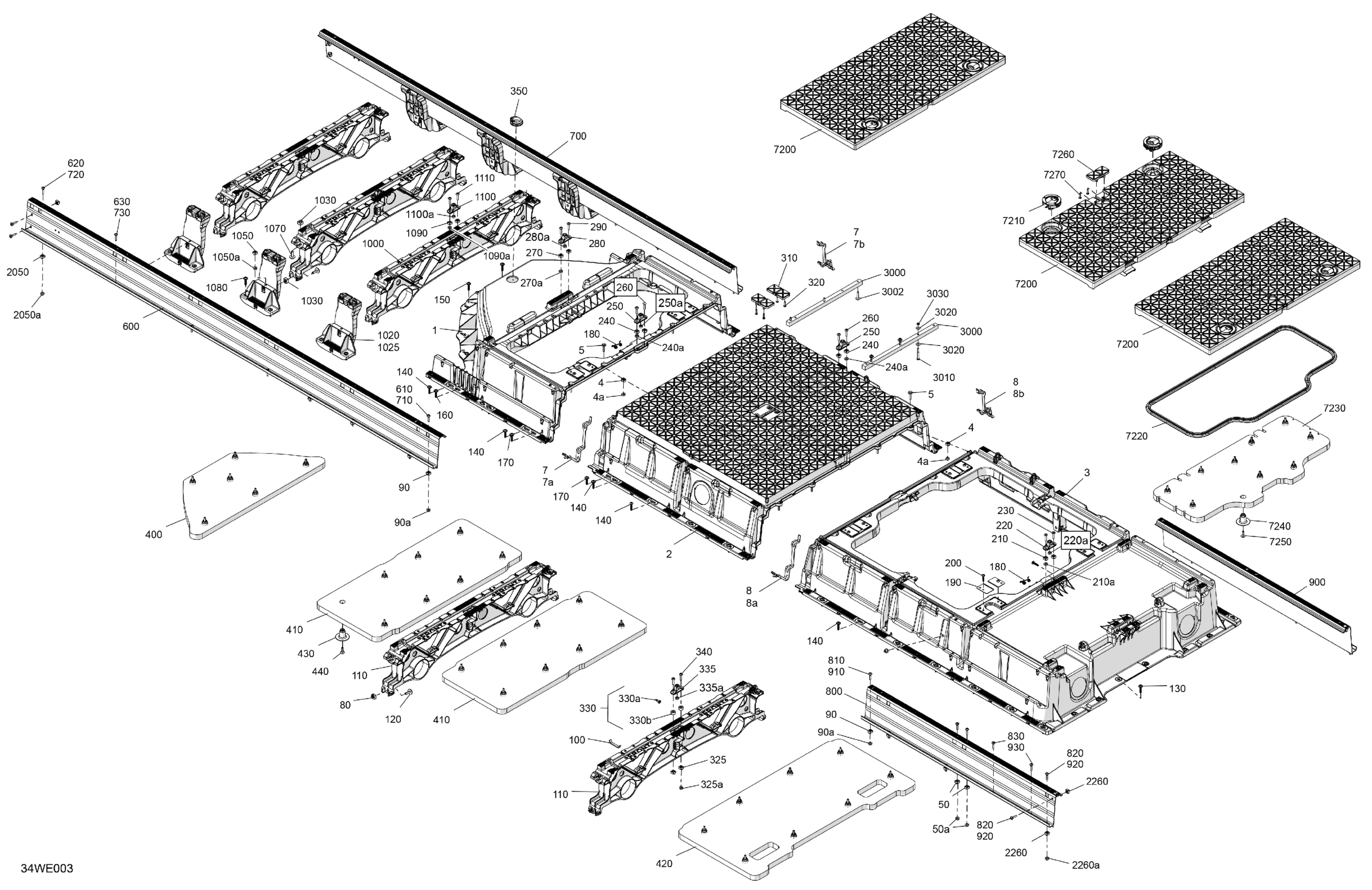

Sea-doo BASE 19 - 170 - 42SA - Can-Am Red - Trailer Paint - CAT2B - 2025 HULL - Frame Diagram

#

Description
Price

1

Front Chassis

291006440

Unavailable

2

Central Chassis

291004648

Unavailable

3

Rear Frame Service Kit

295101120

Unavailable

4

Nut Housing M6 | Includes 555 to 555b

269502544

$4.42

4a

Elastic Stop Nut M6, Brass

232561200

$3.51

5

Hex Screw SEMS M6X35, SS

250000969

$1.74

7

Gasket Kit | Includes 7 to 7b

295501261

$5.49

7a

Not Available As Spare Parts

XXX

Unavailable

7b

Not Available As Spare Parts

XXX

Unavailable

8

Gasket Kit | Includes 7 to 7b

295501261

$5.49

8a

Not Available As Spare Parts

XXX

Unavailable

8b

Not Available As Spare Parts

XXX

Unavailable

50

Nut Housing M6 | Includes 555 to 555b

269502544

$4.42

50a

Elastic Stop Nut M6, Brass

232561200

$3.51

80

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$5.41

90

Nut Housing M6 | Includes 555 to 555b

269502544

$4.42

90a

Elastic Stop Nut M6, Brass

232561200

$3.51

100

Seal Tray 1000Mm Long

219704368

$12.91

110

Crossmember

291004980

Unavailable

120

Hexagonal Screw M8 X 30

250000888

$3.09

130

Sems Plastite Torx Screw M6.81X35

250001152

$3.87

140

Sems Plastite Torx Screw M6.81X35

250001152

$3.87

150

Sems Plastite Torx Screw M6.81X35

250001152

$3.87

160

Sems Plastite Torx Screw M6.81X35

250001152

$3.87

170

Sems Plastite Torx Screw M6.81X35

250001152

$3.87

180

Torsion Spring

291005695

Unavailable

190

Lock Plate

291005582

Unavailable

200

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$1.74

210

Nut Housing M6 | Includes 555 to 555b

269502544

$4.42

210a

Elastic Stop Nut M6, Brass

232561200

$3.51

220

Table Anchorage | Includes 250 to 250a

291005631

Unavailable

220a

Hex Nut M8

232081200

$1.37

230

Screw-Torx Truss Cone Head M6X25

250001116

$3.39

240

Nut Housing M6 | Includes 555 to 555b

269502544

$4.42

240a

Elastic Stop Nut M6, Brass

232561200

$3.51

250

Table Anchorage | Includes 250 to 250a

291005631

Unavailable

250a

Hex Nut M8

232081200

$1.37

260

Screw-Torx Truss Cone Head M6X25

250001116

$3.39

270

Nut Housing M6 | Includes 555 to 555b

269502544

$4.42

270a

Elastic Stop Nut M6, Brass

232561200

$3.51

280

Table Anchorage | Includes 250 to 250a

291005631

Unavailable

280a

Hex Nut M8

232081200

$1.37

290

Screw-Torx Truss Cone Head M6X25

250001116

$3.39

310

Double Tile Cap

291005630

Unavailable

320

Hex. Screw 10-14 X 7/8”

211000023

$2.91

325

Nut Housing M6 | Includes 555 to 555b

269502544

$4.42

325a

Elastic Stop Nut M6, Brass

232561200

$3.51

330

Roller Bushing Kit | Includes 240 to 240b

295501160

$3.30

330a

Screw-Socket Shoulder M8X8

250000775

$6.57

330b

Roller Bushing Kit | Includes 240 to 240b

295501160

$3.30

335

Table Anchorage | Includes 250 to 250a

291005631

Unavailable

335a

Hex Nut M8

232081200

$1.37

340

Screw-Torx Truss Cone Head M6X25

250001116

$3.39

350

Cable Grommet

293720092

$10.28

400

Front Chassis Acoustic Insulation

291005476

Unavailable

410

Central Chassis Acoustic Insulation

291005477

Unavailable

420

Rear Chassis Acoustic Insulation

291005478

Unavailable

430

Fastener

291005474

$3.23

440

Hexagonal Cap Screw M6 X 25

250000978

$3.61

600

Side Member 251 CM

291004898

Unavailable

610

Truss Cone Torx Screw M6 X 30

250000924

$6.15

620

Truss Cone Torx Screw M6 X 30

250000924

$6.15

630

Truss Cone Torx Screw M6 X 30

250000924

$6.15

700

Side Member 251 CM

291004899

Unavailable

710

Truss Cone Torx Screw M6 X 30

250000924

$6.15

720

Truss Cone Torx Screw M6 X 30

250000924

$6.15

730

Truss Cone Torx Screw M6 X 30

250000924

$6.15

800

Side Member 115 CM

291004900

Unavailable

810

Truss Cone Torx Screw M6 X 30

250000924

$6.15

820

Truss Cone Torx Screw M6 X 30

250000924

$6.15

830

Truss Cone Torx Screw M6 X 30

250000924

$6.15

900

Side Member 115 CM

291004901

Unavailable

910

Truss Cone Torx Screw M6 X 30

250000924

$6.15

920

Truss Cone Torx Screw M6 X 30

250000924

$6.15

930

Truss Cone Torx Screw M6 X 30

250000924

$6.15

1000

Crossmember

291004980

Unavailable

1020

LH Cross Member Support

291005384

Unavailable

1025

RH Cross Member Support

291006024

Unavailable

1030

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$5.41

1050

Nut Housing M6 | Includes 555 to 555b

269502544

$4.42

1050a

Elastic Stop Nut M6, Brass

232561200

$3.51

1070

Hexagonal Screw M8 X 30

250000888

$3.09

1080

Sems Plastite Torx Screw M6.81X35

250001152

$3.87

1090

Nut Housing M6 | Includes 555 to 555b

269502544

$4.42

1090a

Elastic Stop Nut M6, Brass

232561200

$3.51

1100

Table Anchorage | Includes 250 to 250a

291005631

Unavailable

1100a

Hex Nut M8

232081200

$1.37

1110

Screw-Torx Truss Cone Head M6X25

250001116

$3.39

2050

Nut Housing M6 | Includes 555 to 555b

269502544

$4.42

2050a

Elastic Stop Nut M6, Brass

232561200

$3.51

2260

Nut Housing M6 | Includes 555 to 555b

269502544

$4.42

2260a

Elastic Stop Nut M6, Brass

232561200

$3.51

3000

Chassis Reinforcement

281000134

Unavailable

3002

Hexagonal Cap Screw M6 X35

250000399

$3.61

3010

Hex. Screw M6 x 55

207065560

$0.83

3020

Flat Washer M6, Stainless

234062600

$0.64

3030

Elastic Stop Nut M6, Brass

232561200

$3.51

7200

Access Cover

291004653

$180.02

7210

Latch Ass'y

291005473

$22.07

7220

Weather Strip

293250624

$36.89

7230

Acoustic Insulation Cover

291005475

$36.89

7240

Fastener

291005474

$3.23

7250

Hexagonal Cap Screw M6 X 25

250000978

$3.61

7260

Double Tile Cap

291005630

Unavailable

7270

Hex. Screw 10-14 X 7/8”

211000023

$2.91
