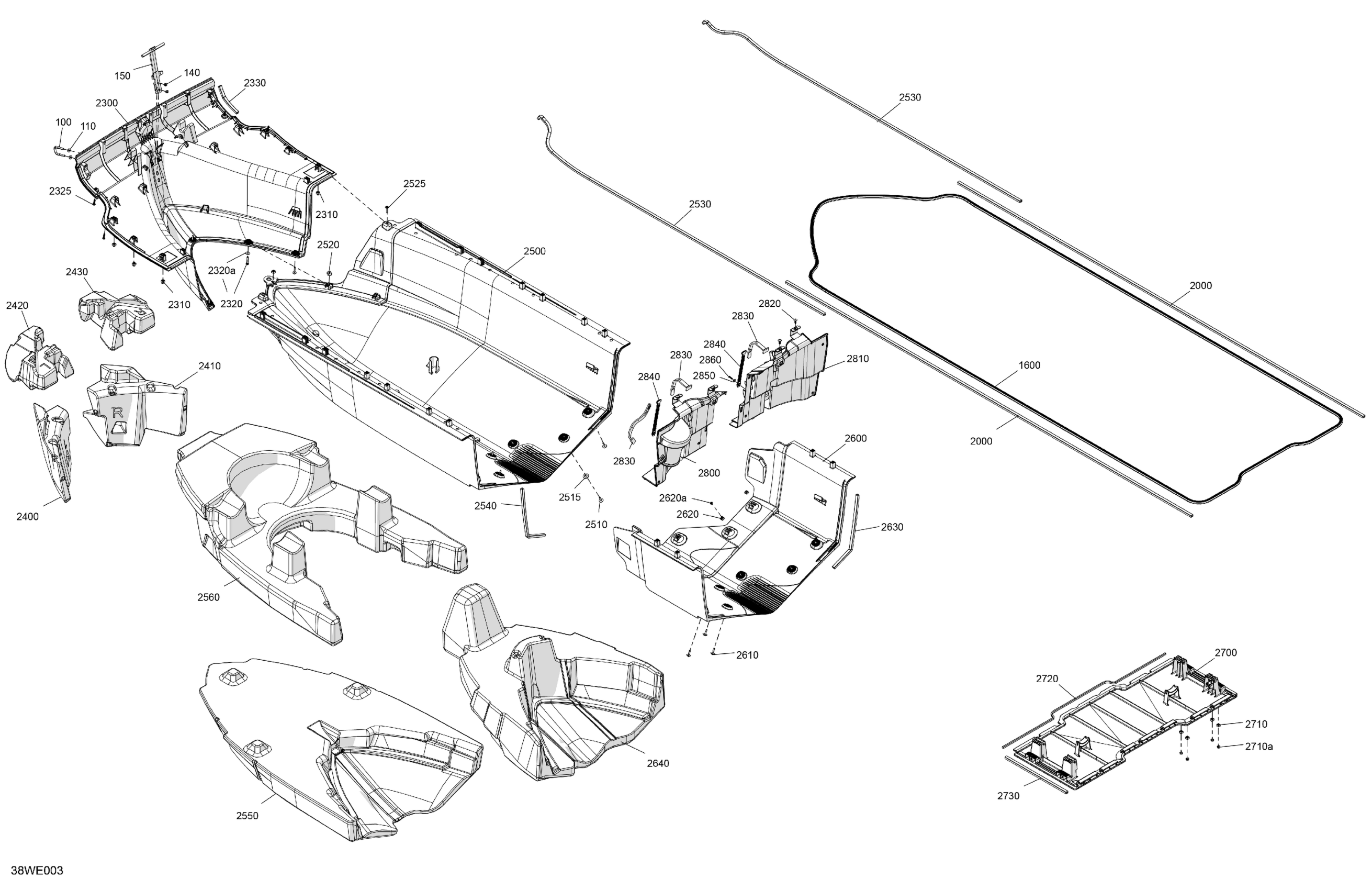

Sea-doo BASE 19 - 170 - 42SA - Can-Am Red - Trailer Paint - CAT2B - 2025 HULL - Deflector Diagram

Description

Price

100

U-Clamp

292000933

$32.47

110

Flat Washer M8.5 x 18

293050001

$1.29

140

Hex. Elastic Nut M8 Brass

232581200

$1.29

150

Retaining Plate

291005455

Unavailable

1600

Weather Strip

292002300

Unavailable

2000

Gasket

292002677

$32.28

2300

Hull Deflector

291004894

$492.67

2310

Platite Insert 6.81

291005889

Unavailable

2320

Hex Sems Screw M6X35

250000970

$1.74

2320a

Hex Screw SEMS M6X35, SS

250000969

$1.74

2325

Plastite Screw Torx Cone HD.M6.81X3

250001138

$1.61

2330

Gasket

292002677

$32.28

2400

LH Float Deflector

291005580

Unavailable

2410

RH Deflector Float

291005581

Unavailable

2420

LH Front Hull Float

291005871

Unavailable

2430

RH Front Hull Float

291005872

Unavailable

2500

Hull Deflector Extension

291005286

Unavailable

2510

Hex Sems Screw M6X30

250001183

$2.72

2515

Flat Washer 9/16

250200204

$7.51

2520

Brass Insert M6

292003111

Unavailable

2525

Hexagonal Cap Screw M6 X35

250000399

$3.61

2530

Gasket

292002677

$32.28

2540

Gasket

292002677

$32.28

2550

Lower Hull Deflector Float

291005291

Unavailable

2560

Upper Hull Deflector Float

291005293

Unavailable

2600

Hull Deflector Extension

291006183

$589.97

2610

Hex SEMS Screw M6X30

250001164

Unavailable

2620

Nut Housing M6 | Includes 555 to 555b

269502544

$4.42

2620a

Elastic Stop Nut M6, Brass

232561200

$3.51

2630

Gasket

292002677

$32.28

2640

Deflector Extension Float

292002390

Unavailable

2700

Underbody Panel

291005442

$253.82

2710

Nut Housing M6 | Includes 555 to 555b

269502544

$4.42

2710a

Elastic Stop Nut M6, Brass

232561200

$3.51

2720

Gasket

292002523

$9.22

2730

Gasket

292002677

$32.28

2800

LH Seperation Panel

292002386

Unavailable

2810

RH Seperation Panel

292002387

Unavailable

2820

Black, Dart

293730006

$0.81

2830

Strap

269502417

$14.27

2840

Retaining Strap

520002814

$41.51

2850

Flat Washer M6, Stainless

234062600

$0.64

2860

Hex. Flange PT Screw K50 X 20

241152040

$1.74
