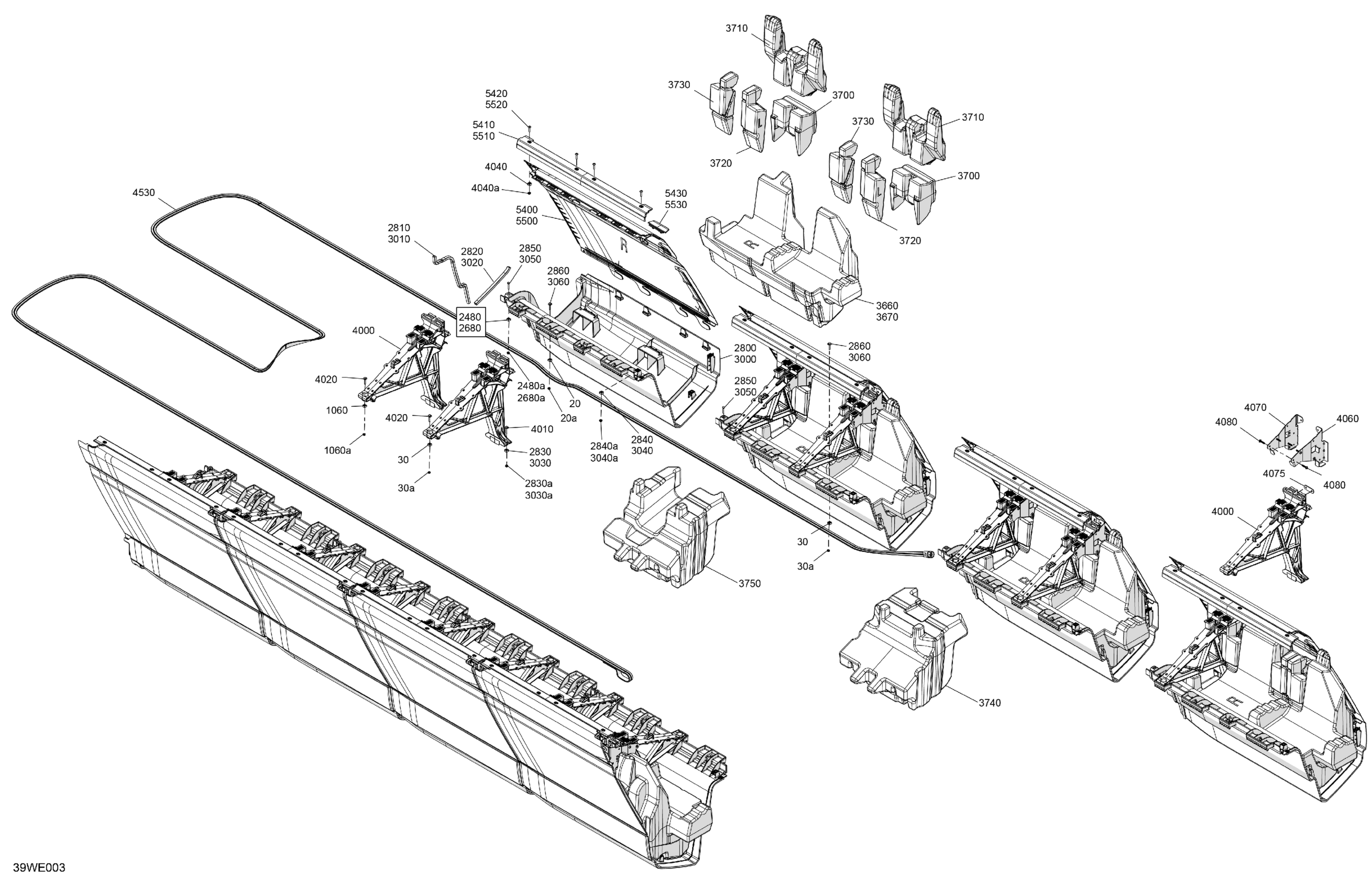

Sea-doo BASE 19 - 170 - 42SA - Can-Am Red - Trailer Paint - CAT2B - 2025 HULL - Central Float Deflector Diagram

#

Description
Price

20

Nut Housing M6 | Includes 555 to 555b

269502544

$4.42

20a

Elastic Stop Nut M6, Brass

232561200

$3.51

30

Nut Housing M6 | Includes 555 to 555b

269502544

$4.42

30a

Elastic Stop Nut M6, Brass

232561200

$3.51

1060

Nut Housing M6 | Includes 555 to 555b

269502544

$4.42

1060a

Elastic Stop Nut M6, Brass

232561200

$3.51

2480

Nut Housing M6 | Includes 555 to 555b

269502544

$4.42

2480a

Elastic Stop Nut M6, Brass

232561200

$3.51

2680

Nut Housing M6 | Includes 555 to 555b

269502544

$4.42

2680a

Elastic Stop Nut M6, Brass

232561200

$3.51

2800

LH Central Deflector Float

291006185

$304.58

2810

Gasket

292002677

$32.28

2820

Gasket

292002677

$32.28

2830

Nut Housing M6 | Includes 555 to 555b

269502544

$4.42

2830a

Elastic Stop Nut M6, Brass

232561200

$3.51

2840

Nut Housing M6 | Includes 555 to 555b

269502544

$4.42

2840a

Elastic Stop Nut M6, Brass

232561200

$3.51

2850

Hex Screw SEMS M6X35, SS

250000969

$1.74

2860

Hex Screw SEMS M6X35, SS

250000969

$1.74

3000

RH Central Deflector Float

291006186

$304.58

3010

Gasket

292002677

$32.28

3020

Gasket

292002677

$32.28

3030

Nut Housing M6 | Includes 555 to 555b

269502544

$4.42

3030a

Elastic Stop Nut M6, Brass

232561200

$3.51

3040

Nut Housing M6 | Includes 555 to 555b

269502544

$4.42

3040a

Elastic Stop Nut M6, Brass

232561200

$3.51

3050

Hex Screw SEMS M6X35, SS

250000969

$1.74

3060

Hex Screw SEMS M6X35, SS

250000969

$1.74

3660

LH Central Float

292002787

$189.20

3670

RH Central Float

292002788

$189.20

3700

Lower Float Support

291005639

Unavailable

3710

Upper Float Support

291005845

Unavailable

3720

LH Float Support

291005637

Unavailable

3730

RH Float Support

291005636

Unavailable

3740

Upper Float

291006073

$73.82

3750

Gas Float

291006059

$73.82

4000

Interlocking Tile Support

291004895

Unavailable

4010

Hex Screw SEMS M6X35, SS

250000969

$1.74

4020

Hex Screw SEMS M6X35, SS

250000969

$1.74

4040

Nut Housing M6 | Includes 555 to 555b

269502544

$4.42

4040a

Elastic Stop Nut M6, Brass

232561200

$3.51

4060

Reinforcement Support

291006168

$73.82

4070

Reinforcement Support

291006169

$73.82

4075

Connecting Plate

291005950

Unavailable

4080

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$1.74

4530

Rinsing Hose 1366 Cm

291005858

Unavailable

5400

Off White, LH Central Panel

291004844

Unavailable

5410

Deep Black, Central Panel Trim

291006553

Unavailable

5420

Screw-Torx Truss Cone Head M6X25

250001116

$3.39

5430

Deep Black, Cap Trim

291006554

Unavailable

5500

Off White, RH Central Panel

291004846

Unavailable

5510

Deep Black, Central Panel Trim

291006553

Unavailable

5520

Screw-Torx Truss Cone Head M6X25

250001116

$3.39

5530

Deep Black, Cap Trim

291006554

Unavailable
