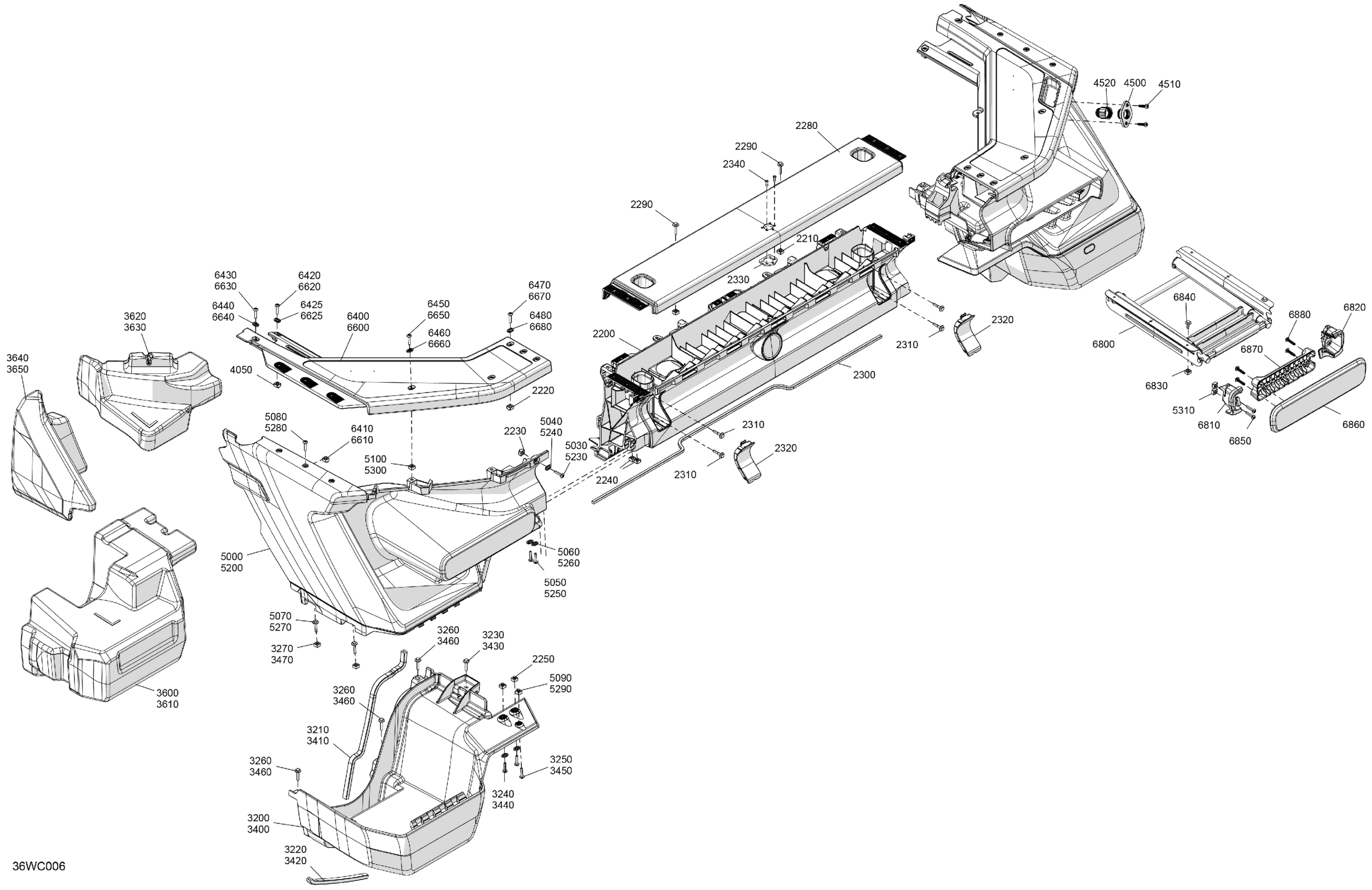

Sea-doo BASE 16 - 130 - 41PK - Blue - Trailer Paint - CAT2B, 2023 HULL - Rear Deflector Float and Rear Bumper Diagram

#

Description
Price

2200

Rear Bumper Service Kit

295101095

Unavailable

2210

Nut Housing M6 | Includes 555 to 555b

269502544

Unavailable

2220

Nut Housing M6 | Includes 555 to 555b

269502544

Unavailable

2230

Nut Housing M6 | Includes 555 to 555b

269502544

Unavailable

2240

Nut Housing M6 | Includes 555 to 555b

269502544

Unavailable

2250

Nut Housing M6 | Includes 555 to 555b

269502544

Unavailable

2280

Bumper Trim

291004820

Unavailable

2290

Screw-Torx Truss Cone Head M6X25

250001116

Unavailable

2300

Gasket

292002523

Unavailable

2310

Hex SEMS Screw M6X30

250001164

Unavailable

2320

Rear Bumper Cap

291005459

Unavailable

2330

Retaining Plate

291005813

Unavailable

2340

Pop Rivet 3/16"

293150005

Unavailable

3200

LH Rear Float Deflector

291004847

Unavailable

3210

Gasket

292002677

Unavailable

3220

Gasket

292002677

Unavailable

3230

Hex Screw SEMS M6X35, SS

250000969

Unavailable

3240

Screw-Torx Truss Cone Head M6X25

250001116

Unavailable

3250

Screw-Torx Truss Cone Head M6X25

250001116

Unavailable

3260

Hex Screw SEMS M6X35, SS

250000969

Unavailable

3270

Nut Housing M6 | Includes 555 to 555b

269502544

Unavailable

3400

RH Rear Deflector Float

291006071

Unavailable

3410

Gasket

292002677

Unavailable

3420

Gasket

292002677

Unavailable

3430

Hex Screw SEMS M6X35, SS

250000969

Unavailable

3440

Screw-Torx Truss Cone Head M6X25

250001116

Unavailable

3450

Screw-Torx Truss Cone Head M6X25

250001116

Unavailable

3460

Hex Screw SEMS M6X35, SS

250000969

Unavailable

3470

Nut Housing M6 | Includes 555 to 555b

269502544

Unavailable

3600

LH Lower Rear Float

292002847

Unavailable

3610

RH Lower Rear Float

292002848

Unavailable

3620

LH Rear Upper Float

291005815

Unavailable

3630

RH Rear Upper Float

291005816

Unavailable

3640

LH Lat Rear Float

291005843

Unavailable

3650

RH Rear Lateral Float

291005844

Unavailable

4050

Nut Housing M6 | Includes 555 to 555b

269502544

Unavailable

4500

Through Hull Fitting

292002765

Unavailable

4510

Plastite Screw Torx Cone HD.M6.81X3

250001138

Unavailable

4520

Adapter Hose

291005837

Unavailable

5000

LH Rear Panel

291004848

Unavailable

5030

Screw-Torx Truss Cone Head M6X25

250001116

Unavailable

5040

Oval Washer

291003880

Unavailable

5050

Screw-Torx Truss Cone Head M6X25

250001116

Unavailable

5060

Oval Washer

291003880

Unavailable

5070

Hex Screw SEMS M6X35, SS

250000969

Unavailable

5080

Screw-Torx Truss Cone Head M6X25

250001116

Unavailable

5090

Nut Housing M6 | Includes 555 to 555b

269502544

Unavailable

5100

Nut Housing M6 | Includes 555 to 555b

269502544

Unavailable

5200

RH Rear Panel

291004850

Unavailable

5230

Screw-Torx Truss Cone Head M6X25

250001116

Unavailable

5240

Oval Washer

291003880

Unavailable

5250

Screw-Torx Truss Cone Head M6X25

250001116

Unavailable

5260

Oval Washer

291003880

Unavailable

5270

Hex Screw SEMS M6X35, SS

250000969

Unavailable

5280

Screw-Torx Truss Cone Head M6X25

250001116

Unavailable

5290

Nut Housing M6 | Includes 555 to 555b

269502544

Unavailable

5300

Nut Housing M6 | Includes 555 to 555b

269502544

Unavailable

5310

Nut Housing M6 | Includes 555 to 555b

269502544

Unavailable

6400

LH Rear Panel Trim

291005438

Unavailable

6410

Nut Housing M6 | Includes 555 to 555b

269502544

Unavailable

6420

Screw-Torx Truss Cone Head M6X25

250001116

Unavailable

6425

Oval Washer

291003880

Unavailable

6430

Screw-Torx Truss Cone Head M6X25

250001116

Unavailable

6440

Oval Washer

291003880

Unavailable

6450

Screw-Torx Truss Cone Head M6X25

250001116

Unavailable

6460

Oval Washer

291003880

Unavailable

6470

Screw-Torx Truss Cone Head M6X25

250001116

Unavailable

6480

Oval Washer

291003880

Unavailable

6600

RH Rear Panel Trim

291006064

Unavailable

6610

Nut Housing M6 | Includes 555 to 555b

269502544

Unavailable

6620

Screw-Torx Truss Cone Head M6X25

250001116

Unavailable

6625

Oval Washer

291003880

Unavailable

6630

Screw-Torx Truss Cone Head M6X25

250001116

Unavailable

6640

Oval Washer

291003880

Unavailable

6650

Screw-Torx Truss Cone Head M6X25

250001116

Unavailable

6660

Oval Washer

291003880

Unavailable

6670

Screw-Torx Truss Cone Head M6X25

250001116

Unavailable

6680

Oval Washer

291003880

Unavailable

6800

Ladder

291005319

Unavailable

6810

LH Ladder Support

291005316

Unavailable

6820

RH Ladder Support

291005699

Unavailable

6830

Nut Housing M6 | Includes 555 to 555b

269502544

Unavailable

6840

Hex Screw M6 X 20

250000965

Unavailable

6850

Screw-Torx Truss Cone Head M6X25

250001116

Unavailable

6860

Ladder Trim Service Kit

295101099

Unavailable

6870

Ladder Trim Fastener

291005595

Unavailable

6880

Plastite Screw Torx Cone HD.M6.81X3

250001138

Unavailable
