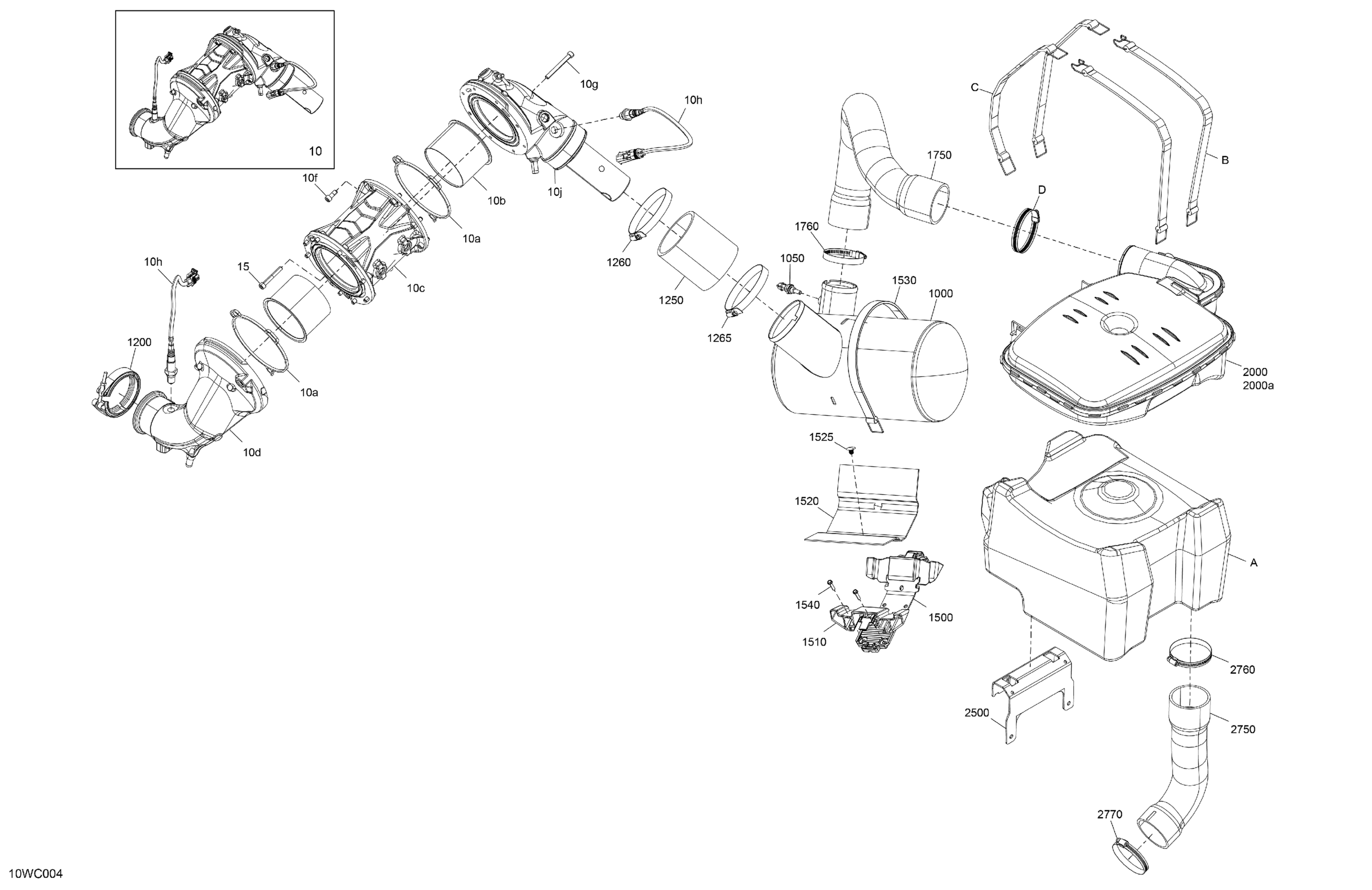

Sea-doo BASE 16 - 130 - 41PK - Blue - Trailer Paint - CAT2B, 2023 MECHANICS - Exhaust Diagram

Description

Price

Foam Support

274001737

Unavailable

Fuel Tank Strap

293850101

$15.64

Fuel Tank Strap

293850093

$19.37

Tridon Gear Clamp

293650244

$8.28

Catalyst Ass'y | Includes 10 to 10k

274001738

$3,389.99

10a

O-Ring

293300147

Unavailable

10b

Catalysyst

423463255

$1,767.13

10c

Center Housing Ass'y

423461944

$542.51

10d

Head Pipe

423463092

$354.45

10f

Socket Head Screw M8 X 20, Scotch Grip

205582060

$4.15

10g

Socket Screw M8 X 65, Scotch Grip

205586560

$14.91

10h

Oxygen Sensor

707600872

$132.81

10j

Exhaust Tail-Cone Ass'y

423463090

$905.94

Socket Head Screw M8 X 55

205085560

$4.15

1000

Muffler

274001660

Unavailable

1050

Temperature Sensor

278002895

$36.54

1200

Exhaust Clamp

274001417

$52.21

1250

Hose

274001724

Unavailable

1260

Gear Clamp This part replaces 293650281.

293650202

$14.61

1265

Gear Clamp This part replaces 293650281.

293650202

$14.61

1500

Muffler Support

293450390

$14.25

1510

Stopper

274001721

$16.39

1520

Rubber Pad

293830209

$13.06

1525

Christmas Tree Anchorage

293730113

$0.99

1530

Strap

293850120

$17.13

1540

Hex. Screw 10-14 X 7/8”

211000023

$3.34

1750

Formed Exhaust Hose

274001734

$69.37

1760

Tridon Gear Clamp

293650244

$8.28

2000

Drilled Resonator | Includes 2000 to 2000a

274001752

$156.69

2000a

Resonator

274001722

$145.49

2500

Bracket

292001831

$28.33

2750

Formed Exhaust Hose

274001735

Unavailable

2760

Tridon Gear Clamp

293650244

$8.28

2770

Tridon Gear Clamp

293650244

$8.28
