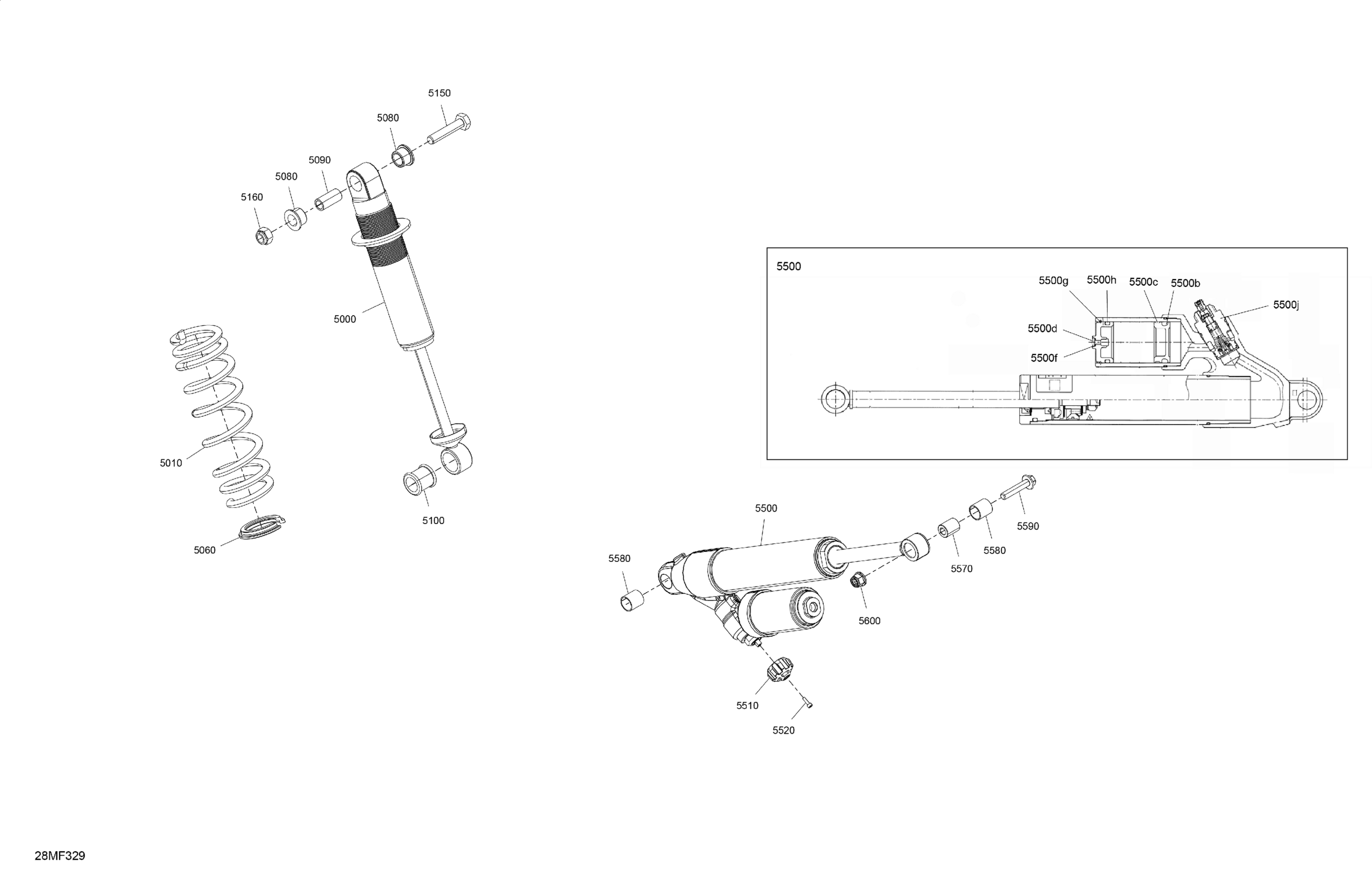

Ski-Doo BACKCOUNTRY - X - 850 E-TEC - UXTA - Deep Black - 16X146X2.0P Track, 2026 Suspension - Rear Shocks Diagram

Description

Price

5000

Central Shock

503195275

$416.12

5010

Black, Spring

503191882

$59.97

5060

Spring Stopper

503194270

$16.89

5080

Urethane Bushing

503189117

$6.88

5090

Bushing | Includes 240d to 240d1

503189282

$4.18

5100

Bushing

503189271

$10.46

5150

Hex. Screw M10 X 1.5 X 50

207005044

$3.11

5160

Elastic Locking Nut M10

233601466

$1.74

5500

Rear Shock Absorber HPG | Includes 5500 to 5500j

503197034

$416.12

5500b

O-Ring

415093807

$34.58

5500c

Piston Ring | Not Shown

415093806

$14.97

5500d

Screw | Not Shown

505070399

$4.00

5500f

O-Ring

505070400

$4.38

5500g

Circlip - Call your local BRP dealership

715900076

$4.03

5500h

O-Ring

415093804

$4.38

5500j

Valve

503195958

$93.05

5510

Adjustment Button

503196209

$2.57

5520

Allen Screw M3 X 0.5 X 10

250000644

$1.74

5570

Axle Shock Absorber

503196509

$11.98

5580

Leg Cushion

505072663

$7.40

5590

Hex Flange Screw M8 X 40

207684056

$1.22

5600

Elastic Flange Nut M8

233281466

$0.83
