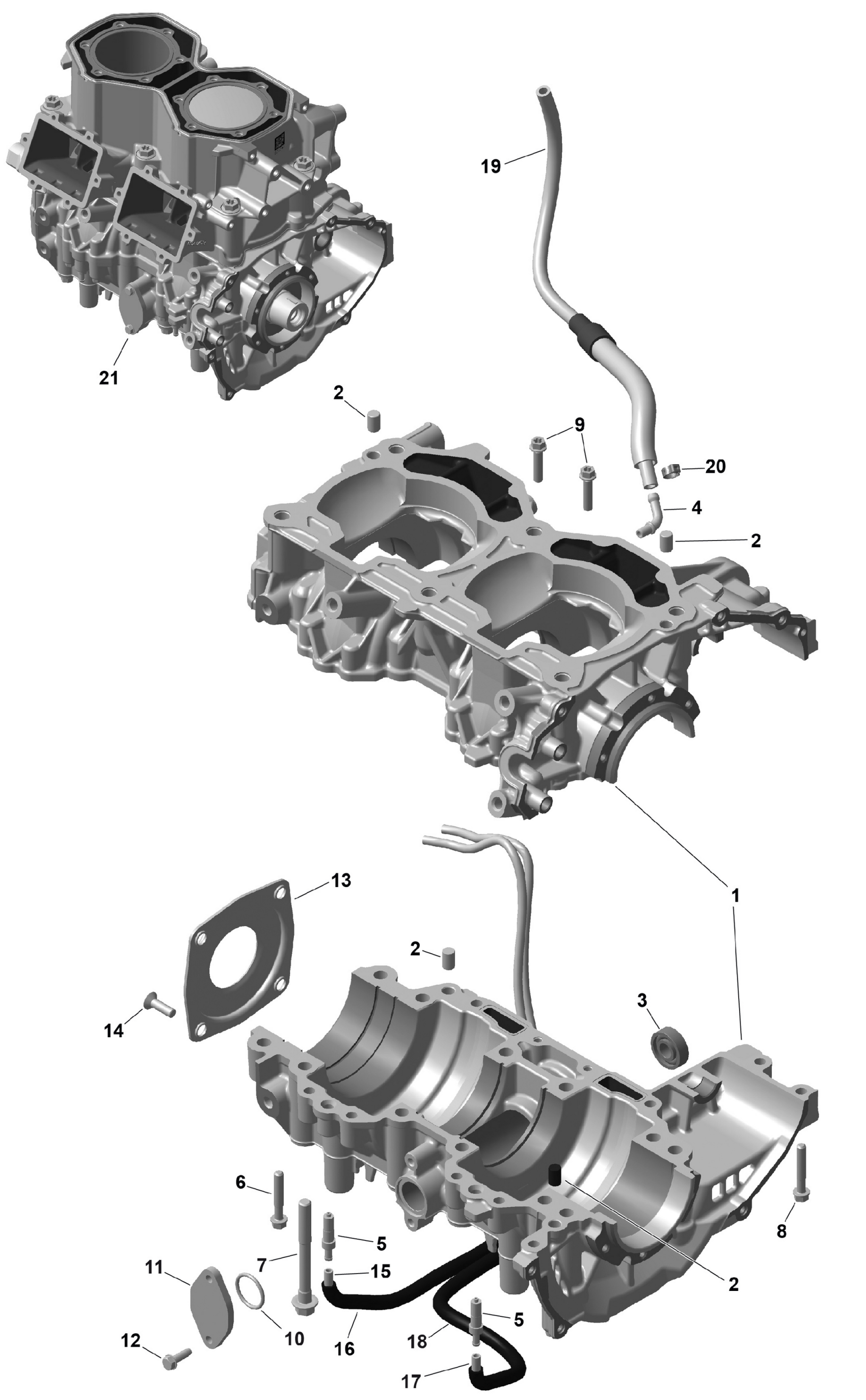

Ski-Doo BACKCOUNTRY - SPORT - 600 EFI - UBTA - Neo Yellow - 16X146X2.0P Track, 2026 ROTAX - Crankcase Diagram

#

Description
Price

1

Crankcase Ass'y | Includes no. 1-6

420686940

$1,125.35

2

Center Pin 8 X 12

420632014

$3.07

3

Ball Bearing

420232100

$15.57

4

Impulse Fitting

420924529

$8.34

5

Check Valve

420956071

$23.82

6

Collar Hex Screw M8 X 45

420640433

$1.94

7

Collar Hex Screw M8 X 75

420640833

$1.94

8

Torx Flange Screw M6 X 35

420440274

$0.83

9

Torx Flange Screw M6 X 25

420440234

$3.00

10

O-Ring

420430373

$2.63

11

Cover Plate

420810827

$14.54

12

Taptite Screw M5 X 16

420941926

$0.39

13

Oil Seal Cover

420812422

$14.54

14

Screw M6 X 20

420941436

$2.37

15

Oil Line 585 mm This part replaces 420201921.

420201928

$5.22

16

Tube 390MM

420460042

$8.34

17

Oil Line 585 mm This part replaces 420201921.

420201928

$5.22

18

Tube 465MM

420460058

$8.34

19

Oil Line / Protective Hose Ass'y

420201599

$29.97

20

Clamp

420853653

$7.23

21

Short Block

420059836

$2,269.99
