Body - Hood

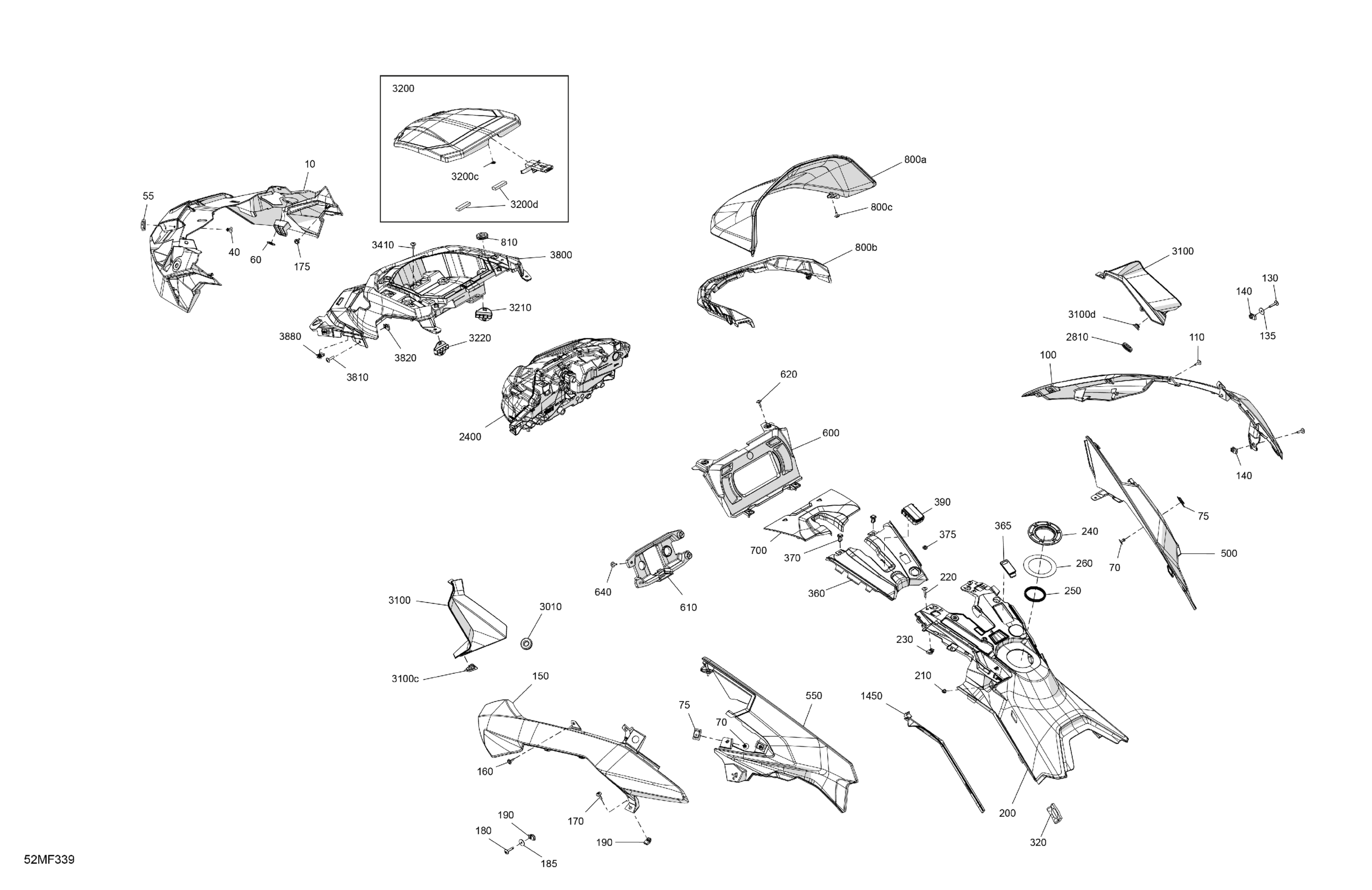

Ski-Doo BACKCOUNTRY - Adrenaline - 600R E -TEC - UJTA - Deep Black - 15X146X1.5S Track, 2026 Body - Hood Diagram
#
10
Center Hood
517307755
Unavailable
40
Black, Pop Rivet 3/16 X ,550
293150292
Unavailable
55
Rivet Plate
517305109
Unavailable
60
Push Nut
508000853
Unavailable
70
Black, Pop Rivet 3/16 X ,550
293150292
Unavailable
75
Rivet Plate
517305109
Unavailable
100
RH Front Hood
517307746
Unavailable
110
Screw M4 X 16
250000725
Unavailable
130
Torx Screw M5 X 26
250000587
Unavailable
135
Washer
517307442
Unavailable
140
Panel Nut M5 X 0.8
250000958
Unavailable
150
LH Front Hood
517307747
Unavailable
160
Screw M4 X 16
250000725
Unavailable
170
Torx Screw M5 X 20
250000528
Unavailable
175
Screw M4 X 16
250000725
Unavailable
180
Torx Screw M5 X 26
250000587
Unavailable
185
Washer
517307442
Unavailable
190
Panel Nut M5 X 0.8
250000958
Unavailable
200
Rear Console
517308760
Unavailable
210
Hex. Flange Elastic Nut M5
233251414
Unavailable
220
Torx Screw M5 X 26
250000587
Unavailable
230
Panel Nut M5 X 0.8
250000958
Unavailable
240
Round Slotted Nut
517309507
Unavailable
250
Gasket
517309450
Unavailable
260
Joint
517309451
Unavailable
320
Self Adhesive Weather Strip
517308930
Unavailable
360
Front Console
517309792
Unavailable
365
Cap
517308261
Unavailable
370
Tuflok Plastic Rivet
293150230
Unavailable
375
Push Nut
732610072
Unavailable
390
Connecting Plate
517308759
Unavailable
500
RH Hood
517308227
Unavailable
550
LH Hood
517308228
Unavailable
600
Gauge Support
517307734
Unavailable
610
Gauge Support
515179104
Unavailable
620
Screw M4 X 16
250000889
Unavailable
640
Screw M4 X 16
250000725
Unavailable
700
Access Cover
517308111
Unavailable
800a
Low Windshield 400MM
517307975
Unavailable
800b
Windshield Support
517307973
Unavailable
800c
Plastite Screw M4 X 10
250000805
Unavailable
810
Grommet
517303756
Unavailable
1450
Molded Gasket
517308987
Unavailable
2400
Headlight Ass'y
517309060
Unavailable
2810
Grommet
517303756
Unavailable
3010
Grommet
517303756
Unavailable
3100
Air Deflector Kit | Includes 3100 to 3100d
517309218
Unavailable
3100c
LH Stopper
517308990
Unavailable
3100d
RH Stopper
517308989
Unavailable
3200
Box Cover Ass'y | Includes 3200 to 3200d
517307754
Unavailable
3200c
Push Nut
732610072
Unavailable
3200d
Joint Seal
517308246
Unavailable
3210
Box Cap
517308260
Unavailable
3220
Box Cap
517308260
Unavailable
3410
Screw M4 X 16
250000889
Unavailable
3800
Upper Fairing
517308231
Unavailable
3810
Torx Screw M5 X 20
250000528
Unavailable
3820
Panel Nut M5 X 0.8
250000958
Unavailable
3880
Panel Nut M5 X 0.8
250000958
Unavailable
