Suspension - Rear - Lower Section

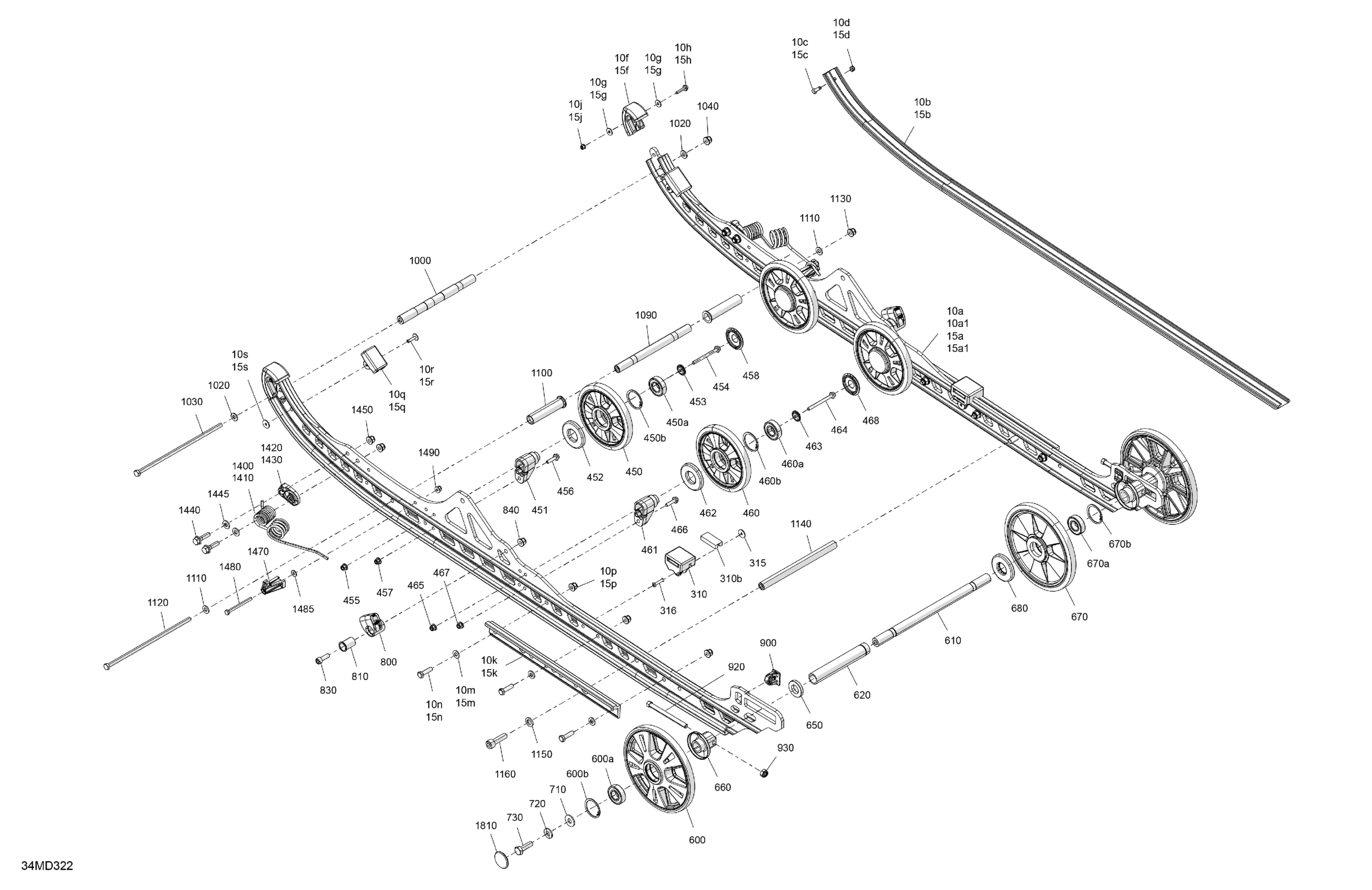

Ski-Doo BACKCOUNTRY 850 E-TEC - X-RS - UYRD - Deep Black - 146X15X1.6C Track, 2024 Suspension - Rear - Lower Section Diagram
#
10a
Rail Suspension 146 | Includes 10a to 10a1
503197248
Unavailable
10a1
Rail Suspension 146
503197249
Unavailable
10b
Black, Slider 146
503191499
Unavailable
10c
Phillips Screw M6 X 25
208562531
Unavailable
10d
Elastic Stop Nut M6
232561434
Unavailable
10f
Rail Protector
503196872
Unavailable
10g
Washer
250200140
Unavailable
10h
Hex. Flange Screw M5 X 25
207652544
Unavailable
10j
Flange Elastic Nut M5
233251434
Unavailable
10k
Rail Reinforcement
503195826
Unavailable
10m
Washer
503192494
Unavailable
10n
Hex. Cap Screw M8 X 30
207183054
Unavailable
10p
Elastic Flange Nut M8
233281466
Unavailable
10q
Rubber Stopper
503190576
Unavailable
10r
Washer
503191273
Unavailable
10s
Rivet Ornit 4.8 X 27.5
293150256
Unavailable
15a
Rail Suspension 146 | Includes 10a to 10a1
503197248
Unavailable
15a1
Rail Suspension 146
503197249
Unavailable
15b
Black, Slider 146
503191499
Unavailable
15c
Phillips Screw M6 X 25
208562531
Unavailable
15d
Elastic Stop Nut M6
232561434
Unavailable
15f
Rail Protector
503196872
Unavailable
15g
Washer
250200140
Unavailable
15h
Hex. Flange Screw M5 X 25
207652544
Unavailable
15j
Flange Elastic Nut M5
233251434
Unavailable
15k
Rail Reinforcement
503195826
Unavailable
15m
Washer
503192494
Unavailable
15n
Hex. Cap Screw M8 X 30
207183054
Unavailable
15p
Elastic Flange Nut M8
233281466
Unavailable
15q
Rubber Stopper
503190576
Unavailable
15r
Washer
503191273
Unavailable
15s
Rivet Ornit 4.8 X 27.5
293150256
Unavailable
310
Rubber Stopper Ass'y | Includes 310 to 310b
503193717
Unavailable
310b
Rubber Stopper Ass'y
503195523
Unavailable
315
Washer
503191273
Unavailable
316
Rivet Ornit 4.8 X 27.5
293150256
Unavailable
450
Black, Wheel Ass'y 152 mm | Includes 450 to 450b
503191755
Unavailable
450a
Ball Bearing | Package-STD
503190396
Unavailable
450b
Retaining Ring
415129371
Unavailable
451
Casted Support
503193894
Unavailable
452
Labyrinth Seal
503190434
Unavailable
453
Wheel Cup M6
503191820
Unavailable
454
Hex. Flange Screw M6 X 70
250000944
Unavailable
455
Hex. Flange Elastic Nut M6
233261466
Unavailable
456
Hex. Flange Screw M6 X 25
250000945
Unavailable
457
Hex. Flange Elastic Nut M6
233261466
Unavailable
458
Black, Wheel Cap
503192771
Unavailable
460
Black, Wheel Ass'y 152 mm | Includes 450 to 450b
503191755
Unavailable
460a
Ball Bearing | Package-STD
503190396
Unavailable
460b
Retaining Ring
415129371
Unavailable
461
Casted Support
503193894
Unavailable
462
Labyrinth Seal
503190434
Unavailable
463
Wheel Cup M6
503191820
Unavailable
464
Hex. Flange Screw M6 X 70
250000944
Unavailable
465
Hex. Flange Elastic Nut M6
233261466
Unavailable
466
Hex. Flange Screw M6 X 25
250000945
Unavailable
467
Hex. Flange Elastic Nut M6
233261466
Unavailable
468
Black, Wheel Cap
503192771
Unavailable
600
Wheel 200, Black | Includes 600 to 600b
503191741
Unavailable
600a
Ball Bearing | Package-STD
503190396
Unavailable
600b
Retaining Ring
415129371
Unavailable
610
Rear Axle
503196754
Unavailable
620
Spacer
503196317
Unavailable
650
Washer
503190432
Unavailable
660
Rear Wheel Support
503196246
Unavailable
670
Black, Wheel Ass'y 200 mm | Includes 670 to 670b
503193098
Unavailable
670a
Ball Bearing | Package-STD
503190396
Unavailable
670b
Retaining Ring
415129371
Unavailable
680
Labyrinth Seal
503190682
Unavailable
710
Washer
503191910
Unavailable
720
Conical Spring Washer 10 mm
234201474
Unavailable
730
Hex Screw With Nilon Patch, M10 X 35
250000817
Unavailable
800
Spring Support Kit
861805547
Unavailable
810
Bushing
503196210
Unavailable
830
Socket Screw M8 X 25
205082554
Unavailable
840
Elastic Flange Nut M8
233281466
Unavailable
900
Tensioner
503194266
Unavailable
920
Hex. Cap Screw M8 X 95
503194267
Unavailable
930
Hex. Elastic Stop Nut M8
232581414
Unavailable
1000
Axle
503196663
Unavailable
1020
Washer
503192494
Unavailable
1030
Bolt M8 X 248mm
503192440
Unavailable
1040
Elastic Flange Nut M8
233281466
Unavailable
1090
Pivot Axle
503195954
Unavailable
1100
Spacer
503195825
Unavailable
1110
Washer
503192494
Unavailable
1120
Bolt M8 X 248mm
503192440
Unavailable
1130
Elastic Flange Nut M8
233281466
Unavailable
1140
Axle Strap
503191260
Unavailable
1150
Washer
503192496
Unavailable
1160
Socket Head Screw M10 X 35
205503554
Unavailable
1400
LH Spring
503194900
Unavailable
1410
RH Spring
503194901
Unavailable
1420
LH Support
503194294
Unavailable
1430
RH Support
503194295
Unavailable
1440
Hex. Flange Screw M8 X 30
207683054
Unavailable
1445
Washer
503192494
Unavailable
1450
Elastic Flange Nut M8
233281466
Unavailable
1470
Hook Ass'y
503196336
Unavailable
1480
Hex. Cap Screw M6 X 70
207167054
Unavailable
1485
Flat Washer
250200039
Unavailable
1490
Hex. Flange Elastic Nut M6
233261466
Unavailable
1810
Black, Wheel Cap
503192771
Unavailable
