Engine - System

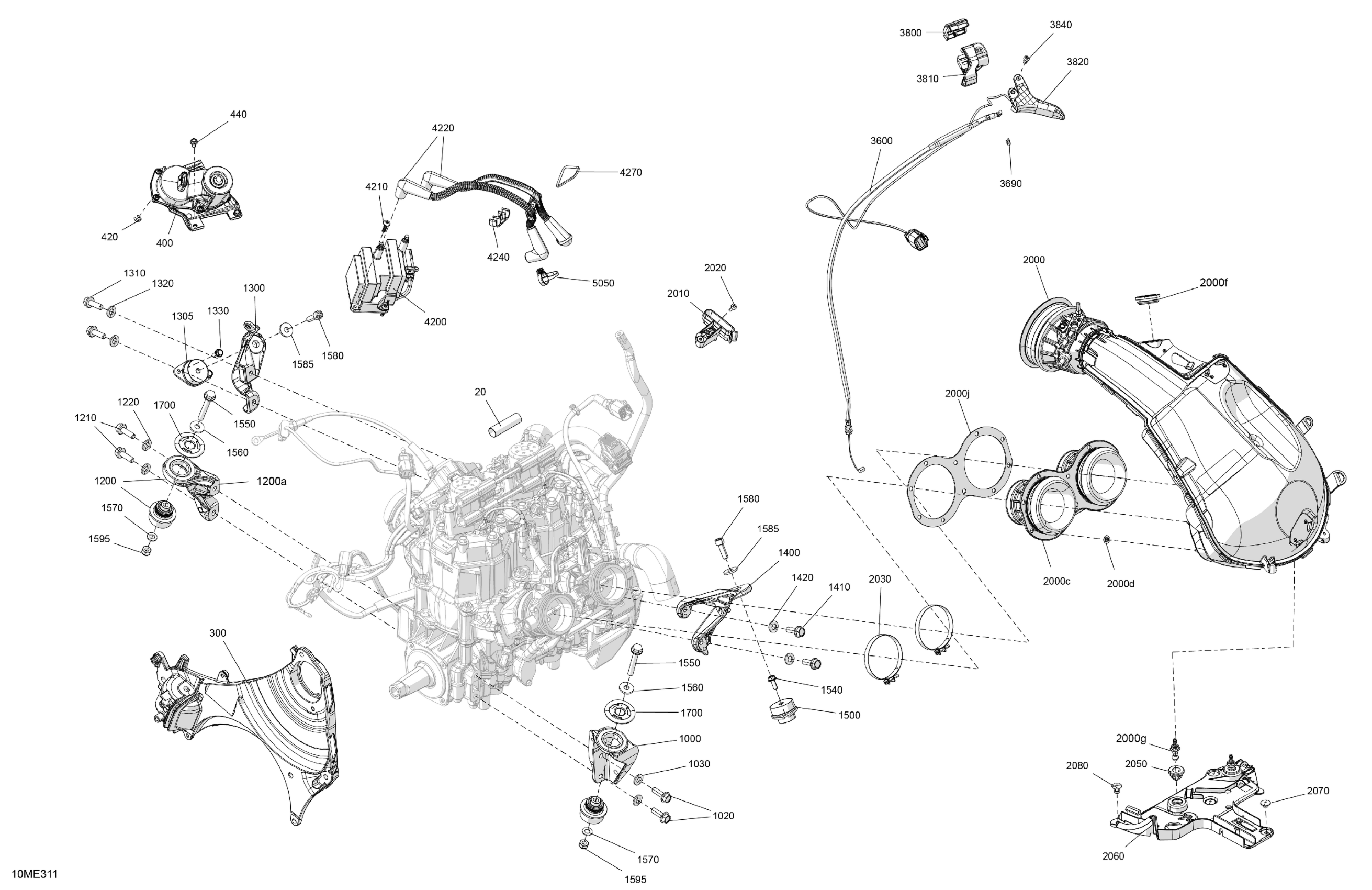

Ski-Doo BACKCOUNTRY - 600R E -TEC - Adrenaline - UJSA - Deep Black - 146X15X1.6C Track - 2025 Engine - System Diagram
#
20
Braided Sleeve 60MM Long
515178492
Unavailable
400
Servo Motor Ass'y
420889425
Unavailable
420
Circlip
293370122
Unavailable
440
Hex. Flange Screw M5 X 10
207551044
Unavailable
1000
LH Rear Engine Support Ass'y
512061634
Unavailable
1020
Hex Flange Screw M8 X 25 S.Grip
250001016
Unavailable
1030
Conical Spring Washer M8
250200146
Unavailable
1200
LH Front Engine Support Ass'y | Includes 1200 to 1200a
512061418
Unavailable
1200a
Not Available As Spare Parts
XXX
Unavailable
1210
Hex Flange Screw M8 X 25 S.Grip
250001016
Unavailable
1220
Conical Spring Washer M8
250200146
Unavailable
1300
RH Front Engine Support
512061439
Unavailable
1305
Vibration Damper
512061454
Unavailable
1310
Hex Flange Screw M8 X 25 S.Grip
250001016
Unavailable
1320
Conical Spring Washer M8
250200146
Unavailable
1330
Hex. Flange Screw M6 X 16
250001062
Unavailable
1400
RH Rear Engine Support Ass'y
512061411
Unavailable
1410
Hex Flange Screw M8 X 25 S.Grip
250001016
Unavailable
1420
Conical Spring Washer M8
250200146
Unavailable
1500
Vibration Damper
512061454
Unavailable
1540
Hex. Flange Screw M6 X 16
250001062
Unavailable
1550
Hex. Flange Screw M8 X 55
207585544
Unavailable
1560
Yellow, Washer
503183200
Unavailable
1570
Flat Washer With Teflon 8 mm
250200008
Unavailable
1580
Socket Head Screw M8 X 25
205082544
Unavailable
1585
Yellow, Washer
503183200
Unavailable
1595
Hex. Elastic Stop Nut M8
232581414
Unavailable
1700
Engine Stopper
512061137
Unavailable
2000
Chamber Ass'y | Includes 2000 to 2000j
508001361
Unavailable
2000c
Intake Adapter
508001006
Unavailable
2000d
Push Nut
732610072
Unavailable
2000f
Rubber
512061083
Unavailable
2000g
Screw
420441840
Unavailable
2000j
Intake Plate
508000845
Unavailable
2010
Cable Guide
512061325
Unavailable
2020
Torx-Truss Pt K40 X 16
250000759
Unavailable
2030
GEMI Clamp
293650212
Unavailable
2050
Rubber Cap
420201630
Unavailable
2070
Black, Pop Rivet 3/16 X ,425
293150291
Unavailable
2080
Black, Pop Rivet 3/16 X ,550
293150292
Unavailable
3600
Throttle Cable
512061224
Unavailable
3690
Circlip
414274500
Unavailable
3800
Upper Housing
512060859
Unavailable
3810
Lower Housing
512060860
Unavailable
3820
Heated Hand Lever Accelerator
512061544
Unavailable
3840
Flange Screw M5x12
250000991
Unavailable
4200
Ignition Coil
512061168
Unavailable
4210
Hex. Plastic Screw M4.8 X 16
243141630
Unavailable
4220
Ignition Cable
512061166
Unavailable
4240
Spark Plug Wire Holder
512061238
Unavailable
4270
O-Ring
293300208
Unavailable
5050
Clamp
512060993
Unavailable
